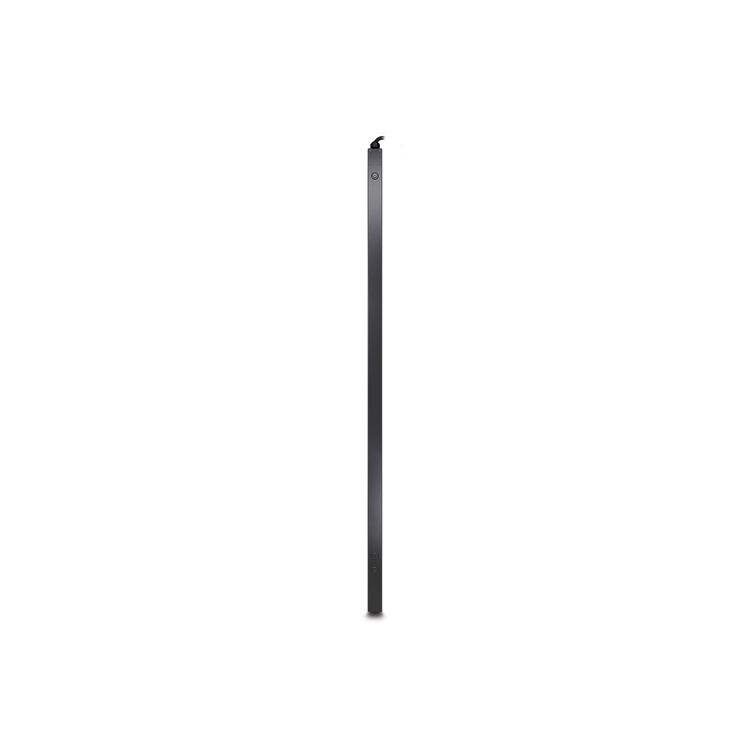

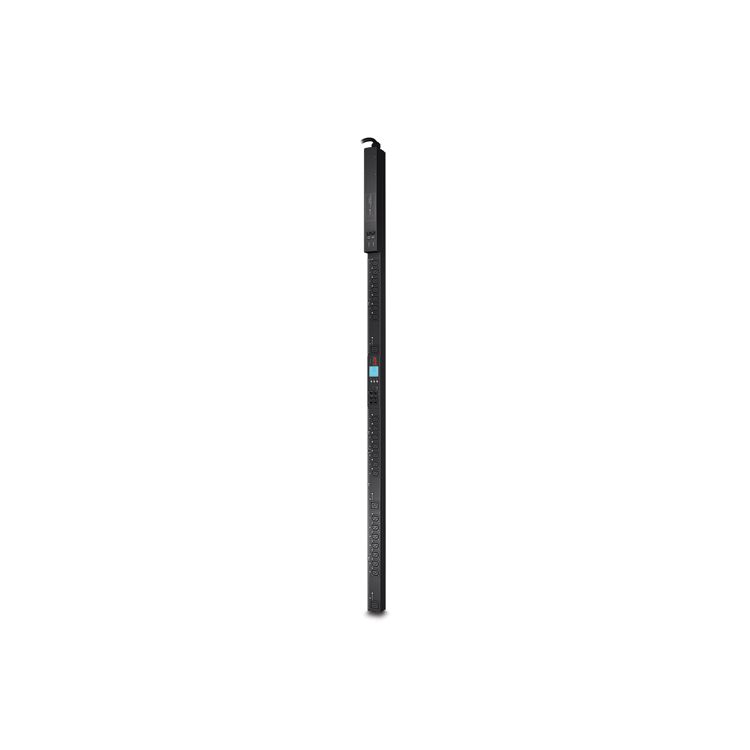

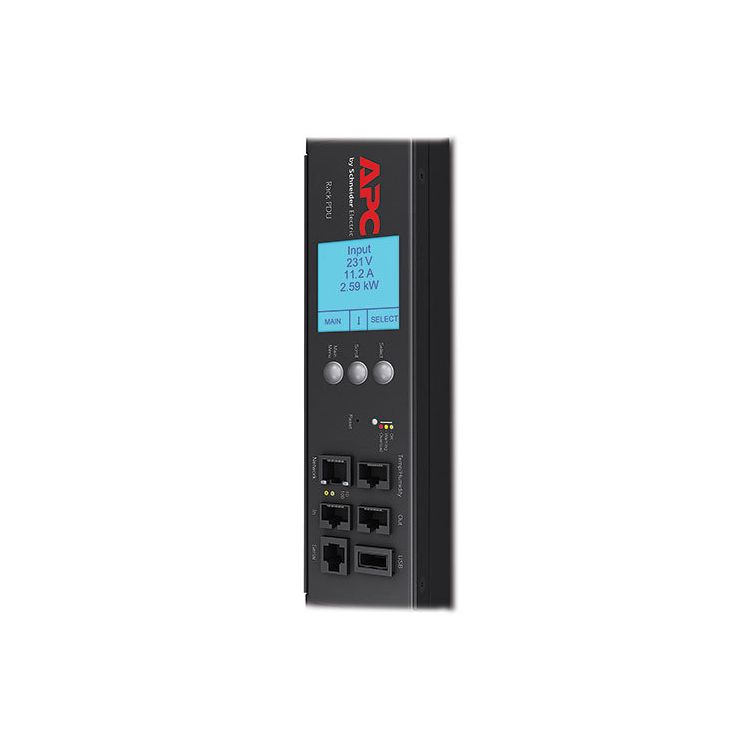

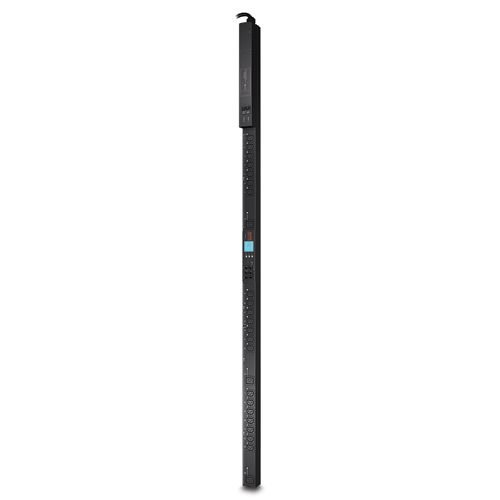

APC Rack PDU 2G, Metered by Outlet with Switching, ZeroU, 32A, 230V, (21) C13 & (3) C19
EAN:
0731304276982
APC Rack PDU 2G, Metered by Outlet with Switching, ZeroU, 32A, 230V, (21) C13 & (3) C19. PDU types: Metered, Metered-by-outlet, Switched, Rack capacity: 0U, Type: Single-phase. AC outlets quantity: 24 AC outlet(s), AC outlet types: C13 coupler,...
Product Description
Product Description
0
APC Rack PDU 2G, Metered by Outlet with Switching, ZeroU, 32A, 230V, (21) C13 & (3) C19. PDU types: Metered, Metered-by-outlet, Switched, Rack capacity: 0U, Type: Single-phase. AC outlets quantity: 24 AC outlet(s), AC outlet types: C13 coupler, C19 coupler, Power plug: IEC309. Cable length: 3 m. Monitoring: Current, Power, Voltage, Outlet control: Lock-out, Recycle, Turn off, Turn on. Nominal input voltage: 230 V, Maximum current: 32 A, AC input frequency: 50 - 60 Hz
APC Rack PDU 2G, Metered by Outlet with Switching, ZeroU, 32A, 230V, (21) C13 & (3) C19. PDU types: Metered, Metered-by-outlet, Switched, Rack capacity: 0U, Type: Single-phase. AC outlets quantity: 24 AC outlet(s), AC outlet types: C13 coupler, C19 coupler, Power plug: IEC309. Cable length: 3 m. Monitoring: Current, Power, Voltage, Outlet control: Lock-out, Recycle, Turn off, Turn on. Nominal input voltage: 230 V, Maximum current: 32 A, AC input frequency: 50 - 60 Hz
Technical Spec
Technical Spec
Product Description
APC Rack PDU 2G, Metered by Outlet with Switching, ZeroU, 32A, 230V, (21) C13 & (3) C19, Metered, Metered-by-outlet, Switched, 0U, Single-phase, Vertical, Black, 24 AC outlet(s)
Tech Specs
Design
PDU types
Metered, Metered-by-outlet, Switched
Rack capacity
0U
Type
Single-phase
Mounting
Vertical
Product colour
Black
Ports & interfaces
AC outlets quantity
24 AC outlet(s)
AC outlet types
C13 coupler, C19 coupler
Power plug
IEC309
Features
Cable length
3 m
Management features
Monitoring
Current, Power, Voltage
Outlet control
Lock-out, Recycle, Turn off, Turn on
Power
Nominal input voltage
230 V
Maximum current
32 A
AC input frequency
50 - 60 Hz
Nominal output voltage
230 V
Load capacity
7680 VA
Maximum input current per phase
32 A
Maximum total current draw per phase
32 A
Power protection features
Overload
Maximum power
7680 W
Certificates
Compliance certificates
RoHS
Certification
EN 55022 Class A, EN 55024, EN 61000-3-2, EN 61000-3-3, VDE
Operational conditions
Operating temperature (T-T)
-5 - 45 °C
Storage temperature (T-T)
-25 - 65 °C
Operating relative humidity (H-H)
5 - 95%
Storage relative humidity (H-H)
5 - 95%
Operating altitude
0 - 3000 m
Non-operating altitude
0 - 15000 m
Weight & dimensions
Width
56 mm
Depth
51 mm
Height
1829 mm
Weight
8.23 kg
Packaging data
Package weight
10.5 kg
Package width
162 mm
Package depth
118 mm
Package height
2038 mm
Logistics data
Total carbon footprint (kg of CO2e)
8595.81
