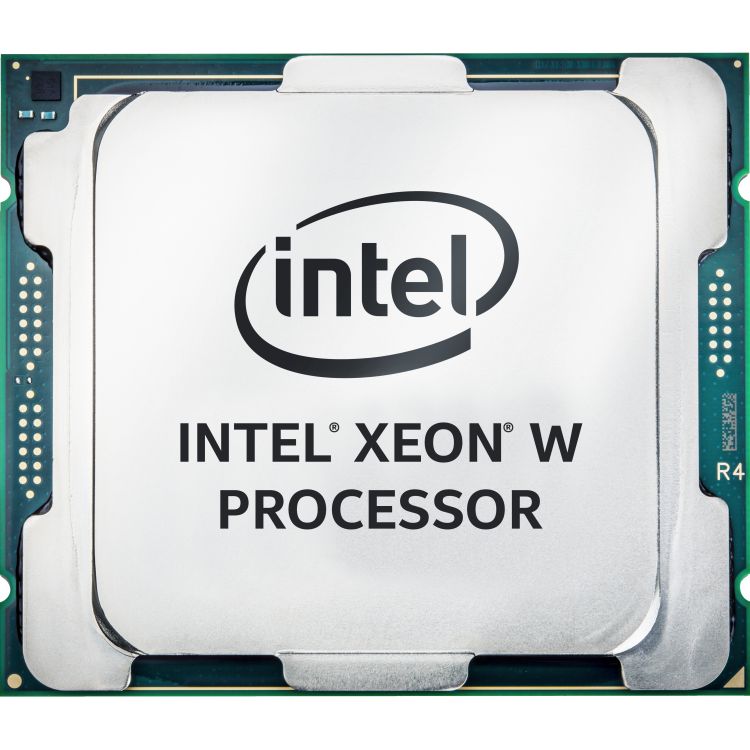

Intel Xeon W-2125 processor 4.00 GHz 8.3 MB
EAN:
0675901490313
Intel® Transactional Synchronization Extensions New Instructions (Intel® TSX-NI) are a set of instructions focused on multi-threaded performance scaling. This technology helps make parallel operations more efficient via improved control of...
Product Description
Product Description
Intel® Transactional Synchronization Extensions New Instructions (Intel® TSX-NI) are a set of instructions focused on multi-threaded performance scaling. This technology helps make parallel operations more efficient via improved control of locks in software.
Intel® Identity Protection Technology is a built-in security token technology that helps provide a simple, tamper-resistant method for protecting access to your online customer and business data from threats and fraud. Intel® IPT provides a hardware-based proof of a unique user’s PC to websites, financial institutions, and network services; providing verification that it is not malware attempting to login. Intel® IPT can be a key component in two-factor authentication solutions to protect your information at websites and business log-ins.
Intel® AES New Instructions (Intel® AES-NI) are a set of instructions that enable fast and secure data encryption and decryption. AES-NI are valuable for a wide range of cryptographic applications, for example: applications that perform bulk encryption/decryption, authentication, random number generation, and authenticated encryption.
Technical Spec
Technical Spec
Product Description
Intel Xeon W-2125, Intel® Xeon®, 4.00 GHz, LGA 2066, Server/Workstation, 14 nm, W-2125
Tech Specs
Intel® Turbo Boost Technology|http
//images.icecat.biz/img/feature_logo/61-7550.png|Higher Performance When You Need It Most
Intel® Turbo Boost Technology 2.01 accelerates processor and graphics performance by increasing the operating frequency when operating below specification limits. The maximum frequency varies depending on workload, hardware, software, and overall system configuration.
Intel® vPro™ Technology|http
Intel® Turbo Boost Technology 2.01 accelerates processor and graphics performance by increasing the operating frequency when operating below specification limits. The maximum frequency varies depending on workload, hardware, software, and overall system configuration.
Intel® vPro™ Technology|http
Processor
Processor family
Intel® Xeon®
Processor frequency
4.00 GHz
Processor cores
4
Processor socket
LGA 2066
Component for
Server/Workstation
Processor lithography
14 nm
Box
N
Cooler included
N
Processor model
W-2125
Processor threads
8
Processor operating modes
64-bit
Processor cache
8.3 MB
Stepping
U0
Processor boost frequency
4.50 GHz
Bus type
QPI
Processor codename
Skylake
Processor code
SR3LM
Processor ARK ID
126708
Memory
Memory channels supported by processor
Quad
Maximum internal memory supported by processor
512 GB
Memory types supported by processor
DDR4-SDRAM
Memory clock speeds supported by processor
1600,1866,2133,2400,2666 MHz
Memory bandwidth supported by processor (max)
85.3 GB/s
ECC supported by processor
Y
Graphics
On-board graphics adapter
N
Power
Thermal Design Power (TDP)
120 W
Features
Execute Disable Bit
Y
Idle States
Y
Thermal Monitoring Technologies
Y
Maximum number of PCI Express lanes
48
PCI Express slots version
3.0
PCI Express configurations
1x16,1x4,1x8
Supported instruction sets
AVX,AVX 2.0,AVX-512,SSE4.2
Scalability
1S
Physical Address Extension (PAE)
Y
CPU configuration (max)
1
Embedded options available
N
Physical Address Extension (PAE)
46 bit
Market segment
SRV
Processor special features
Intel® Hyper Threading Technology (Intel® HT Technology)
Y
Intel® Identity Protection Technology (Intel® IPT)
Y
Intel® Turbo Boost Technology
2.0
Intel® vPro™ Technology
Y
Intel Flex Memory Access
N
Intel® AES New Instructions (Intel® AES-NI)
Y
Enhanced Intel SpeedStep Technology
Y
Intel Trusted Execution Technology
Y
Intel® Memory Protection Extensions (Intel® MPX)
Y
Intel® Device Protection Technology (Intel® DPT) with Boot Guard
Y
Intel® Speed Shift Technology
Y
Intel Enhanced Halt State
Y
Intel VT-x with Extended Page Tables (EPT)
Y
Intel Demand Based Switching
Y
Intel® Secure Key
Y
Intel TSX-NI
Y
Intel® OS Guard
Y
Intel Software Guard Extensions (Intel SGX)
Y
Intel 64
Y
Intel Virtualization Technology (VT-x)
Y
Intel Virtualization Technology for Directed I/O (VT-d)
Y
Conflict Free processor
Y
Intel Turbo Boost Max Technology 3.0
N
Intel® Optane™ Memory Ready
N
AVX-512 Fused Multiply-Add (FMA) units
2
Operational conditions
Tcase
64 °C
Technical details
Processor cache
8448 KB
Product type
4
Weight & dimensions
Processor package size
45 x 52.5 mm
Other features
Maximum internal memory
524288 MB
Technical details
Status
Launched
Product family
Intel Xeon Processors
