Product Description
Product Description

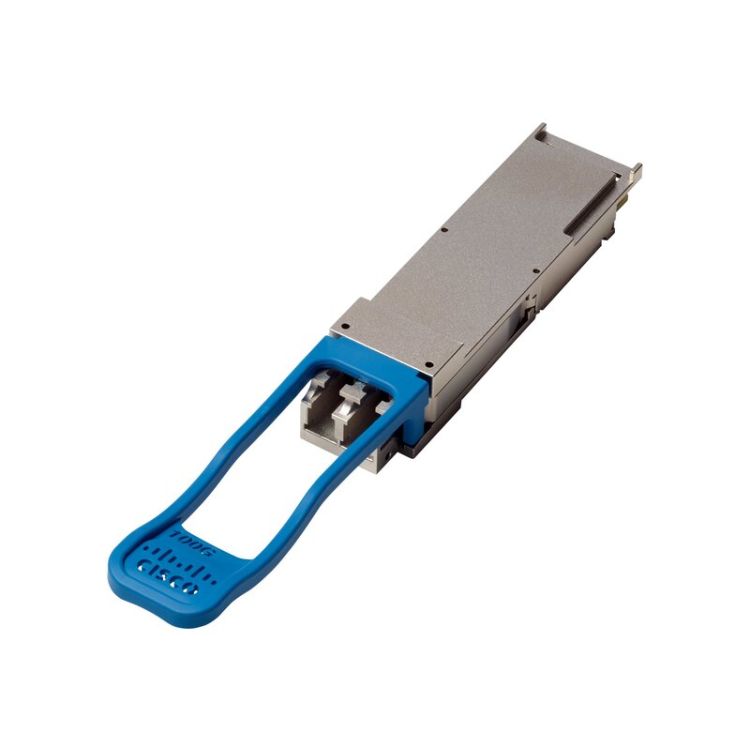

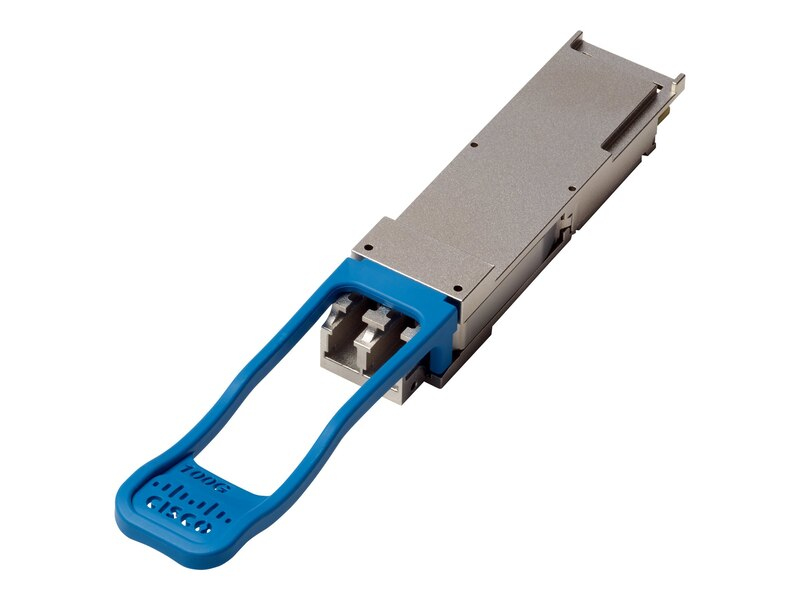

Cisco 100GBASE LR4 QSFP. SFP transceiver type: Fiber optic, Maximum data transfer rate: 100000 Mbit/s, Interface type: QSFP. Product colour: Blue, Metallic. Power consumption (typical): 4 W
Technical Spec
Technical Spec
Product Description
Cisco 100GBASE LR4 QSFP, Fiber optic, 100000 Mbit/s, QSFP, LC, 10000 m, 1295 nm
Tech Specs
SFP transceiver type
Fiber optic
Maximum data transfer rate
100000 Mbit/s
Interface type
QSFP
Single-mode fiber (SMF) supported
Yes
Multi-mode fiber (MMF) supported
No
Fiber optic connector
LC
Maximum transfer distance
10000 m
Tx wavelength (min)
1295 nm
Tx wavelength (max)
1309 nm
Rx wavelength (min)
1295 nm
Rx wavelength (max)
1309 nm
Tx power (min)
-4.3 dBmW
Tx power (max)
4.5 dBmW
Rx power (min)
-10.6 dBmW
Rx power (max)
4.5 dBmW
Product colour
Blue, Metallic
Hot-swap
Yes
Power consumption (typical)
4 W
