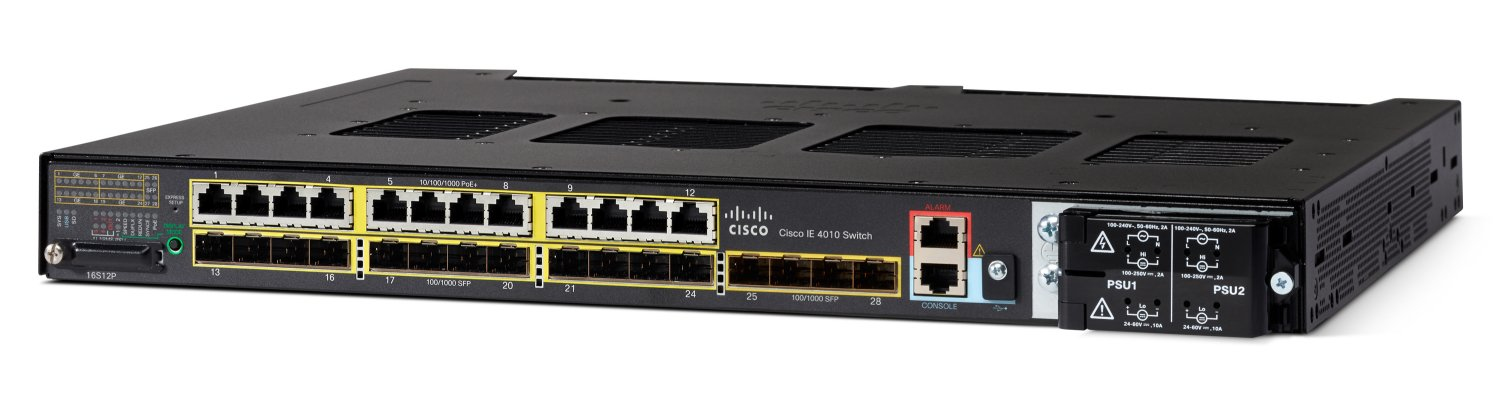

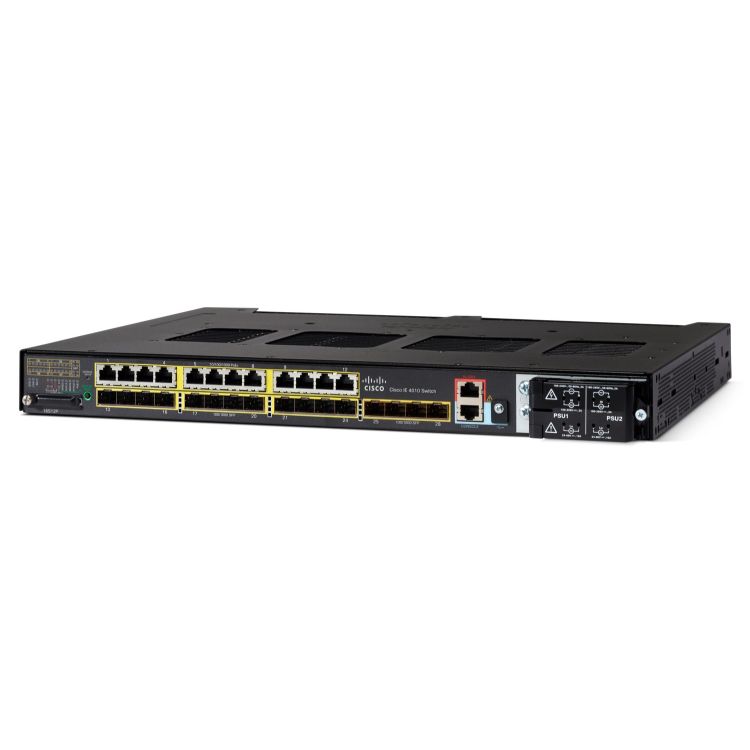

Cisco IE-4010-16S12P network switch Managed L2/L3 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U Black
EAN:
0882658945540
Cisco® Industrial Ethernet (IE) 4010 Series Switches with 28 Gigabit Ethernet interfaces are high-performance ruggedized Layer2/3 switches with high-density Power-over-Ethernet (PoE) capabilities, making them an ideal choice for use as access...
Product Description
Product Description
Cisco® Industrial Ethernet (IE) 4010 Series Switches with 28 Gigabit Ethernet interfaces are high-performance ruggedized Layer2/3 switches with high-density Power-over-Ethernet (PoE) capabilities, making them an ideal choice for use as access switches in industrial environments. The 4010 delivers comprehensive Cisco IOS® Software security features and high-availability ring protocols. The switch is ideal for outdoor enclosures or harsh environments while adhering to overall IT network design, compliance, and performance requirements.
The 4010 has a comprehensive software feature set, developed from manufacturing, utility, and enterprise switching products making it excellent for extended temperature range locations, such as smart buildings, utility, process control, Intelligent Transportation Systems (ITS), and city surveillance programs. The IE4010 has built-in SW image verification to ensure authenticity of the Cisco Software. The 4010 complements the existing Cisco IE 2000, IE 2000U, IE 3000, IE 3010, IE 4000, and IE 5000 Series Switching families, as well as the Cisco CGS 2520 Switch.
The IE 4010 Series can also be used to easily and securely extend the enterprise network to harsh environments with a software-defined access extension for the Internet of Things (IoT) enabling connectivity in outdoor areas, warehouses, distribution centers, roadways etc. using powerful enterprise-grade intent-based network management platform such as Cisco DNA™ Center.
The 4010 supports a GUI-based web user Interface, and Express Setup for the switch provides easy out-of-box configuration to deliver advanced security, data, video, and voice services over industrial networks.
Technical Spec
Technical Spec
Product Description
Cisco IE-4010-16S12P, Managed, L2/L3, Gigabit Ethernet (10/100/1000), Power over Ethernet (PoE), Rack mounting, 1U
Tech Specs
Management features
Switch type
Managed
Switch layer
L2/L3
Quality of Service (QoS) support
Yes
Web-based management
Yes
ARP inspection
Yes
System event log
Yes
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity
12
Basic switching RJ-45 Ethernet ports type
Gigabit Ethernet (10/100/1000)
SFP module slots quantity
16
Console port
RJ-45/Mini-USB
Compatible memory cards
SD
Network
Networking standards
IEEE 1588, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3ah, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
10G support
No
Full duplex
Yes
Link aggregation
Yes
Broadcast storm control
Yes
Rate limiting
Yes
Spanning tree protocol
Yes
VLAN support
Yes
Virtual LAN features
Private VLAN, Voice VLAN
Number of VLANs
1000
Data transmission
MAC address table
16000 entries
Switching capacity
56 Gbit/s
Forwarding rate
41.67 Mpps
Number of queues
4
Security
DHCP features
DHCP server, DHCP snooping
IGMP snooping
Yes
Security algorithms
802.1x RADIUS, FIPS 140-2, SNMPv3, SSH
BPDU filtering/protection
Yes
Multicast features
Multicast support
Yes
Protocols
Supported network protocols
IPv4, IPv6, VTPv2, NTP, UDLD, CDP, LLDP, HTTP
Routing protocols
BGP, EIGRP, HSRP, IS-IS, OSPF, RIP-2
Design
Rack mounting
Yes
Form factor
1U
Product color
Black
Certification
RoHS, TAA, CE
Performance
Memory type
DRAM
Internal memory
1000 MB
Flash memory
128 MB
Mean time between failures (MTBF)
415160 h
Power
Power supply included
No
Power consumption (max)
90 W
Power over Ethernet (PoE)
Power over Ethernet (PoE)
Yes
Power over Ethernet plus (PoE+) ports quantity
12
Operational conditions
Operating temperature (T-T)
-40 - 75 °C
Storage temperature (T-T)
-40 - 85 °C
Operating relative humidity (H-H)
5 - 95%
Operating altitude
0 - 165600" (0 - 4206.2 m)
Non-operating altitude
0 - 180000" (0 - 4572 m)
Weight & dimensions
Width
17.5" (445 mm)
Height
1.75" (44.5 mm)
Weight
12.7 lbs (5.78 kg)
Logistics data
Harmonized System (HS) code
85176990
