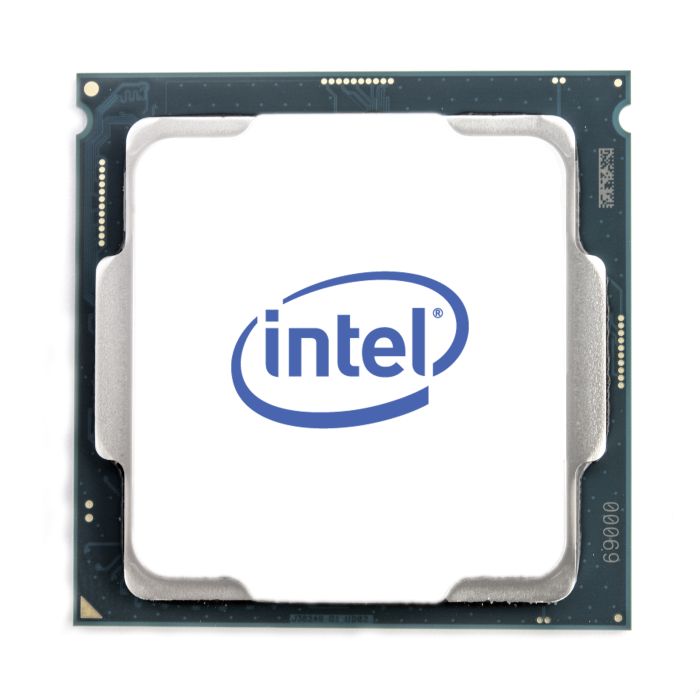

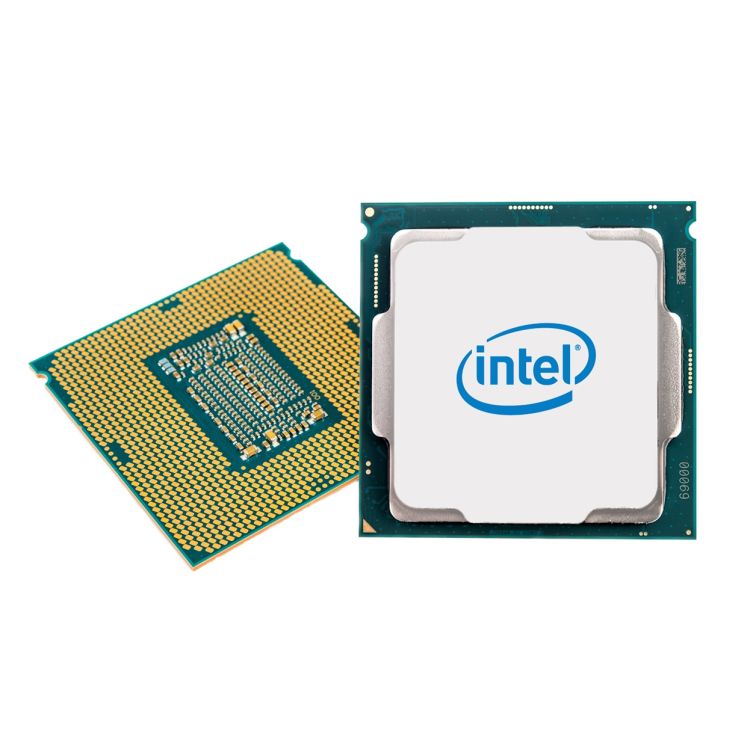

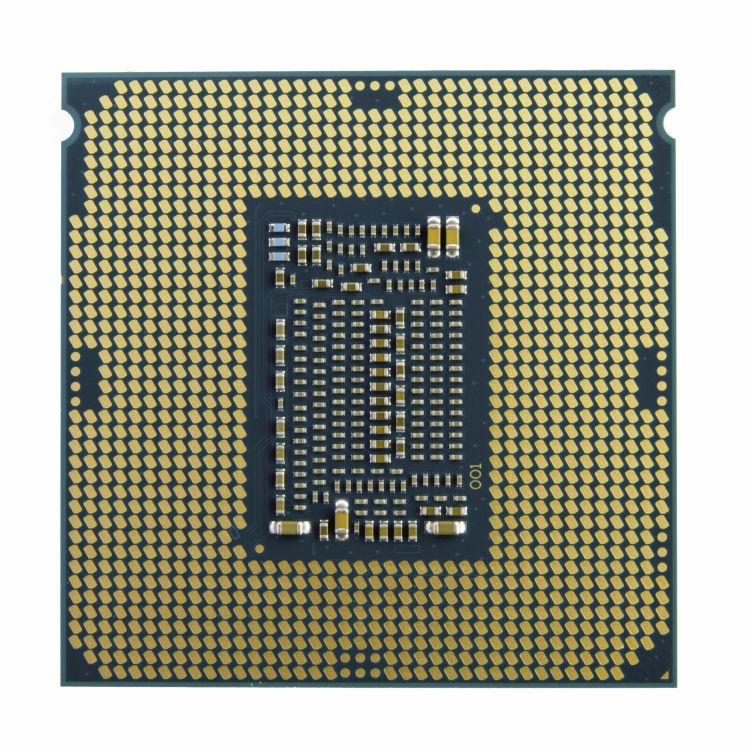

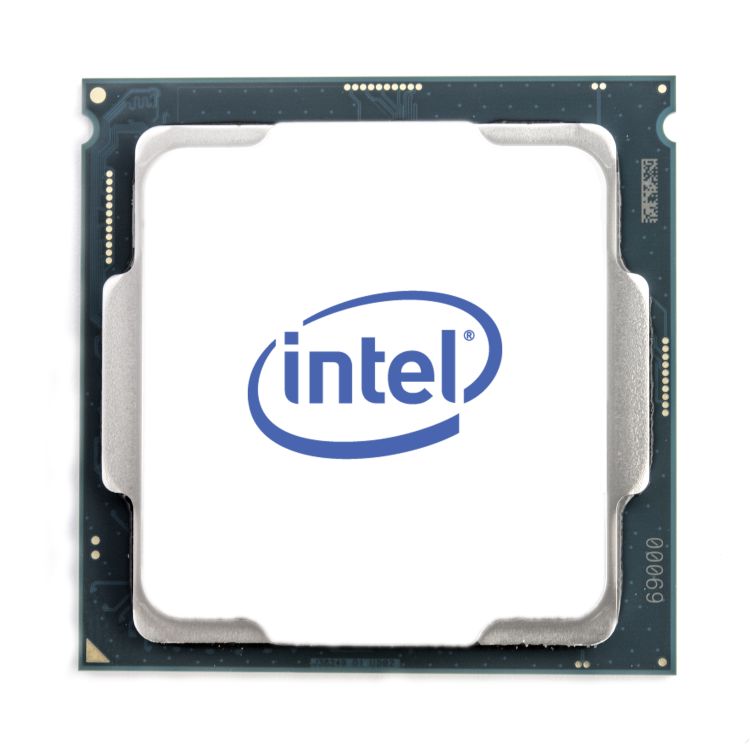

Intel Core i5-8400T processor 1.7 GHz 9 MB Smart Cache
EAN:
8592978094881
Intel Core i5-8400T. Processor family: Intel® Core™ i5, Processor socket: LGA 1151 (Socket H4), Processor lithography: 14 nm. Memory channels: Dual-channel, Maximum internal memory supported by processor: 64 GB, Memory types supported by...
Product Description
Product Description
Intel Core i5-8400T. Processor family: Intel® Core™ i5, Processor socket: LGA 1151 (Socket H4), Processor lithography: 14 nm. Memory channels: Dual-channel, Maximum internal memory supported by processor: 64 GB, Memory types supported by processor: DDR4-SDRAM. On-board graphics card model: Intel® UHD Graphics 630, Maximum on-board graphics card memory: 64 GB, On-board graphics card base frequency: 350 MHz. Market segment: Desktop, PCI Express configurations: 1x16, 2x8, 1x8+2x4, Supported instruction sets: SSE4.1, SSE4.2, AVX 2.0. Intel® Turbo Boost Technology 2.0 frequency: 3.3 GHz
Technical Spec
Technical Spec
Product Description
Intel Core i5-8400T, Intel® Core™ i5, LGA 1151 (Socket H4), 14 nm, Intel, i5-8400T, 1.7 GHz
Tech Specs
Processor
Processor family
Intel® Core™ i5
Processor cores
6
Processor socket
LGA 1151 (Socket H4)
Processor lithography
14 nm
Box
No
Cooler included
No
Processor manufacturer
Intel
Processor model
i5-8400T
Processor base frequency
1.7 GHz
Processor operating modes
64-bit
Processor generation
8th gen Intel® Core™ i5
Component for
PC
Processor series
Intel Core i5-8400 Desktop Series
Processor threads
6
System bus rate
8 GT/s
Processor boost frequency
3.3 GHz
Processor cache
9216 KB
Processor cache type
Smart Cache
Thermal Design Power (TDP)
35 W
Configurable TDP-down frequency
1.2 GHz
Configurable TDP-down
25 W
Compatible chipsets
Intel® B360, Intel® H310, Intel® H370, Intel Q370
Stepping
U0
Bus type
DMI3
Memory bandwidth supported by processor (max)
41.6 GB/s
Processor codename
Coffee Lake
Processor code
SR3X6
Processor ARK ID
129940
Memory
Memory channels
Dual-channel
Maximum internal memory supported by processor
64 GB
Memory types supported by processor
DDR4-SDRAM
Memory clock speeds supported by processor
2666 MHz
ECC
No
Graphics
On-board graphics card
Yes
Discrete graphics card
No
On-board graphics card model
Intel® UHD Graphics 630
Discrete graphics card model
Not available
Maximum on-board graphics card memory
64 GB
On-board graphics card base frequency
350 MHz
On-board graphics card dynamic frequency (max)
1050 MHz
Number of displays supported (on-board graphics)
3
On-board graphics card 4K support
Yes
On-board graphics card DirectX version
12.0
On-board graphics card OpenGL version
4.5
On-board graphics card maximum resolution (DisplayPort)
4096 x 2304 pixels
On-board graphics card maximum resolution (eDP - Integrated Flat Panel)
4096 x 2304 pixels
On-board graphics card maximum resolution (HDMI)
4096 x 2304 pixels
On-board graphics card refresh rate at maximum resolution (DisplayPort)
60 Hz
On-board graphics card refresh rate at maximum resolution (eDP - Integrated Flat Panel)
60 Hz
On-board graphics card refresh rate at maximum resolution (HDMI)
24 Hz
On-board graphics card ID
0x3E92
Features
Execute Disable Bit
Yes
Idle States
Yes
Thermal Monitoring Technologies
Yes
Market segment
Desktop
Maximum number of PCI Express lanes
16
PCI Express slots version
3.0
PCI Express configurations
1x16, 2x8, 1x8+2x4
Supported instruction sets
SSE4.1, SSE4.2, AVX 2.0
Scalability
1S
CPU configuration (max)
1
Embedded options available
No
Thermal solution specification
PCG 2015A
PCI Express CEM revision
3.0
Export Control Classification Number (ECCN)
5A992C
Commodity Classification Automated Tracking System (CCATS)
G077159
Processor special features
Intel® Hyper Threading Technology (Intel® HT Technology)
No
Intel® Identity Protection Technology (Intel® IPT)
Yes
Intel® Turbo Boost Technology
2.0
Intel® Quick Sync Video Technology
Yes
Intel® InTru™ 3D Technology
Yes
Intel® Clear Video HD Technology (Intel® CVT HD)
Yes
Intel® AES New Instructions (Intel® AES-NI)
Yes
Enhanced Intel SpeedStep Technology
Yes
Intel Trusted Execution Technology
No
Intel® Memory Protection Extensions (Intel® MPX)
Yes
Intel® Turbo Boost Technology 2.0 frequency
3.3 GHz
Intel® Transactional Synchronization Extensions
No
Intel Enhanced Halt State
Yes
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)
Yes
Intel VT-x with Extended Page Tables (EPT)
Yes
Intel® Secure Key
Yes
Intel TSX-NI
No
Intel Stable Image Platform Program (SIPP)
No
Intel® OS Guard
Yes
Intel Clear Video Technology
Yes
Intel Software Guard Extensions (Intel SGX)
Yes
Intel 64
Yes
Intel Identity Protection Technology version
1.00
Intel Secure Key Technology version
1.00
Intel Stable Image Platform Program (SIPP) version
0.00
Intel Virtualization Technology (VT-x)
Yes
Intel Virtualization Technology for Directed I/O (VT-d)
Yes
Intel TSX-NI version
0.00
Conflict-Free processor
Yes
Intel® Optane™ Memory Ready
Yes
Intel® Boot Guard
Yes
Intel® vPro™ Platform Eligibility
No
Operational conditions
Tjunction
100 °C
Technical details
Product type
Processor
Supported memory types
DDR4-SDRAM
Maximum graphics card memory
64 GB
Logistics data
Harmonized System (HS) code
8542310001
Weight & dimensions
Processor package size
37.5 x 37.5 mm
Other features
Maximum internal memory
65536 MB
Generation
8th Generation
Bus bandwidth
8
Bus type units
GT/s
Launch date
Q2'18
Maximum resolution & refresh rate (DisplayPort)
4096x2304@60Hz
Maximum resolution & refresh rate (HDMI)
4096x2304@24Hz
Maximum resolution & refresh rate (Integrated Flat Panel)
4096x2304@60Hz
Status
Discontinued
Maximum memory
128 GB
Processor brand name
8th Gen Intel Core i5
8th Gen Intel Core i5 Processor
Last change
63903513
Product family
Intel Core Processors
Bus speed
8 GT/s
Processor ID
0x3E92
