ATEN CS1944DP KVM switch Black
EAN:
0672792007897
ATEN CS1944DP. Keyboard port type: USB, Mouse port type: USB, Video port type: DisplayPort. HD type: 4K Ultra HD, Maximum resolution: 4096 x 2160 pixels, Video bandwidth: 60 Hz. Product colour: Black, Housing material: Metal. Power source: DC,...
Product Description
Product Description
0
ATEN CS1944DP. Keyboard port type: USB, Mouse port type: USB, Video port type: DisplayPort. HD type: 4K Ultra HD, Maximum resolution: 4096 x 2160 pixels, Video bandwidth: 60 Hz. Product colour: Black, Housing material: Metal. Power source: DC, Input voltage: 12 V, Power consumption (typical): 5.76 W. Windows operating systems supported: Windows 10, Windows 2000, Windows 7, Windows 8, Windows 8.1, Windows Vista, Windows XP, Linux operating systems supported: RedHat EL Linux 6.0, RedHat EL Linux 7.0, SUSE Linux Enterprise Desktop 10, SUSE Linux Enterprise..., Mac operating systems supported: Mac OS 9.0, Mac OS 9.1, Mac OS 9.2, Mac OS X 10.0 Cheetah, Mac OS X 10.1 Puma, Mac OS X 10.10...
ATEN CS1944DP. Keyboard port type: USB, Mouse port type: USB, Video port type: DisplayPort. HD type: 4K Ultra HD, Maximum resolution: 4096 x 2160 pixels, Video bandwidth: 60 Hz. Product colour: Black, Housing material: Metal. Power source: DC, Input voltage: 12 V, Power consumption (typical): 5.76 W. Windows operating systems supported: Windows 10, Windows 2000, Windows 7, Windows 8, Windows 8.1, Windows Vista, Windows XP, Linux operating systems supported: RedHat EL Linux 6.0, RedHat EL Linux 7.0, SUSE Linux Enterprise Desktop 10, SUSE Linux Enterprise..., Mac operating systems supported: Mac OS 9.0, Mac OS 9.1, Mac OS 9.2, Mac OS X 10.0 Cheetah, Mac OS X 10.1 Puma, Mac OS X 10.10...
Technical Spec
Technical Spec
Product Description
ATEN CS1944DP, 4096 x 2160 pixels, 4K Ultra HD, 5.76 W, Black
Tech Specs
Ports & interfaces
Number of computers controlled
4
Keyboard port type
USB
Mouse port type
USB
Video port type
DisplayPort
Console ports
3.5mm headphone, 3.5mm mic, DisplayPort, USB A
DisplayPorts quantity
10
USB 3.2 Gen 1 (3.1 Gen 1) Type-B ports quantity
4
Console USB ports quantity
2
USB hub
Yes
USB 3.2 Gen 1 (3.1 Gen 1) Type-A hub ports quantity
2
Audio connections
Yes
Headphone outputs
6
Number of microphone inputs
6
DC-in jack
Yes
Network
Ethernet LAN (RJ-45) ports
1
Performance
HD type
4K Ultra HD
Maximum resolution
4096 x 2160 pixels
Video bandwidth
60 Hz
Scan interval
1,99 s
HDCP
Yes
Firmware upgradeable
Yes
Design
Product colour
Black
Housing material
Metal
LED indicators
Yes
Push button
Yes
Hot keys
No
Display
Built-in display
No
Power
Power source
DC
Input voltage
12 V
Power consumption (typical)
5.76 W
System requirements
Windows operating systems supported
Windows 10, Windows 2000, Windows 7, Windows 8, Windows 8.1, Windows Vista, Windows XP
Linux operating systems supported
RedHat EL Linux 6.0, RedHat EL Linux 7.0, SUSE Linux Enterprise Desktop 10, SUSE Linux Enterprise Desktop 11, SUSE Linux Enterprise Desktop 12, SuSE Linux 10, SuSE Linux 10.2, SuSE Linux 10.3, SuSE Linux 11, SuSE Linux 11.1, SuSE Linux 11.2, SuSE Linux 12.0, SuSE Linux 12.3, SuSE Linux 9.3, openSUSE 13.1
Mac operating systems supported
Mac OS 9.0, Mac OS 9.1, Mac OS 9.2, Mac OS X 10.0 Cheetah, Mac OS X 10.1 Puma, Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.2 Jaguar, Mac OS X 10.3 Panther, Mac OS X 10.4 Tiger, Mac OS X 10.5 Leopard, Mac OS X 10.6 Snow Leopard, Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks
Other operating systems supported
DOS, Novell NetWare 5.x, Novell NetWare 6.x
Sustainability
Compliance certificates
RoHS
Operational conditions
Operating temperature (T-T)
0 - 50 °C
Storage temperature (T-T)
-20 - 60 °C
Operating relative humidity (H-H)
0 - 80%
Weight & dimensions
Width
156.6 mm
Depth
335 mm
Height
44 mm
Weight
1.51 kg

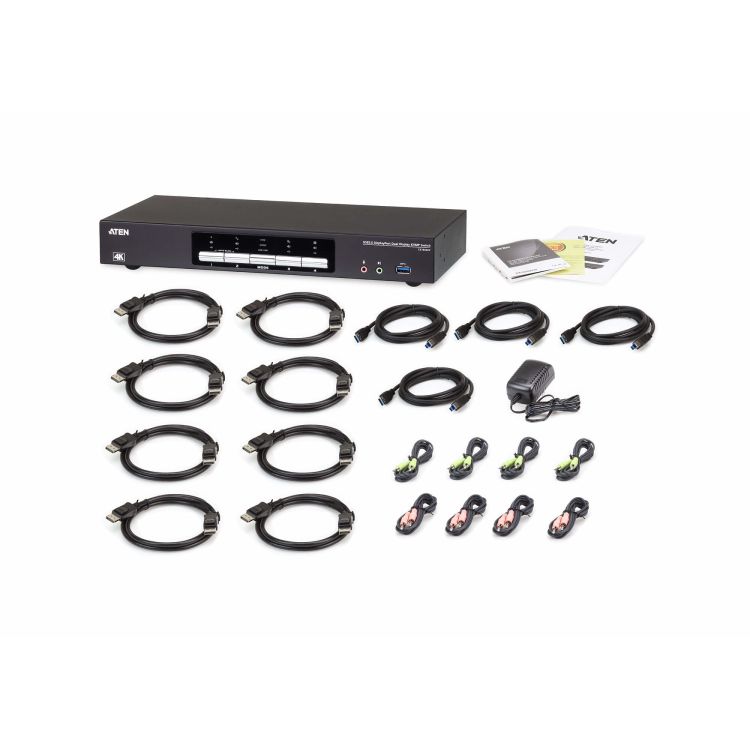

Packaging content
Cables included
Audio (3.5mm), DisplayPort, KVM, USB
Manual
Yes
AC adapter included
Yes
Logistics data
Harmonized System (HS) code
85176200
