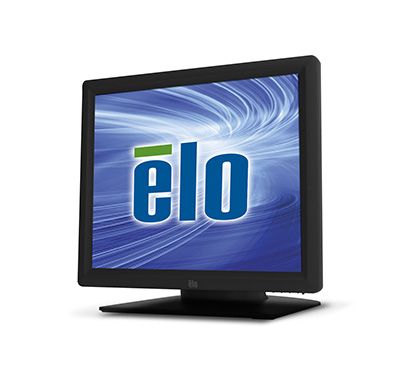

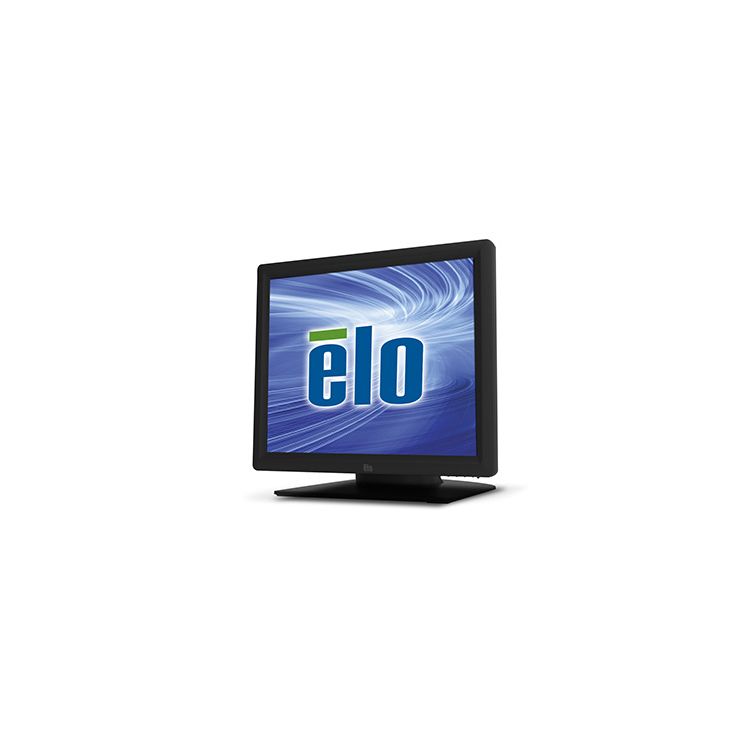

Elo Touch Solutions 1517L Rev B 38.1 cm (15") LCD 225 cd/m² Black Touchscreen
EAN:
7411493347306
Elo Touch Solutions 1517L Rev B. Display diagonal: 38.1 cm (15"), Display technology: LCD, Display resolution: 1024 x 768 pixels, Display brightness: 225 cd/m², Touchscreen. Product colour: Black
Product Description
Product Description
Elo Touch Solutions 1517L Rev B. Display diagonal: 38.1 cm (15"), Display technology: LCD, Display resolution: 1024 x 768 pixels, Display brightness: 225 cd/m², Touchscreen. Product colour: Black
Technical Spec
Technical Spec
Product Description
Elo Touch Solutions 1517L Rev B, 38.1 cm (15"), LCD, 1024 x 768 pixels
Tech Specs
Display
Display diagonal
38.1 cm (15")
Display technology
LCD
Display resolution
1024 x 768 pixels
Display brightness
225 cd/m²
Touchscreen
Yes
LED backlight
Yes
Native aspect ratio
4
Response time
16 ms
Contrast ratio (typical)
800
Viewing angle, horizontal
160°
Viewing angle, vertical
150°
Display number of colours
16.2 million colours
Horizontal scan range
31.5 - 60 kHz
Vertical scan range
56 - 75 Hz
Supported graphics resolutions
720 x 400, 1024 x 768 (XGA), 640 x 480 (VGA), 800 x 600 (SVGA)
Native refresh rate
60 Hz
Ports & interfaces
HDMI ports quantity
0
DisplayPorts quantity
0
Design
Product colour
Black
Screen shape
Flat
Panel mounting interface
75 x 75 mm
Performance
Number of OSD languages
8
On Screen Display (OSD) languages
Simplified Chinese, Traditional Chinese, German, English, Spanish, French, Italian, Japanese
Mean time between failures (MTBF)
50000 h
Power
Power consumption (typical)
12 W
AC input voltage
100 - 240 V
AC input frequency
50 - 60 Hz
Weight & dimensions
Width (with stand)
358 mm
Depth (with stand)
197 mm
Height (with stand)
319 mm
Weight (with stand)
4.3 kg
Packaging data
Package width
487 mm
Package depth
231 mm
Package height
485 mm
Package weight
7.3 kg
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Operating relative humidity (H-H)
20 - 80%
Storage temperature (T-T)
-20 - 60 °C
Storage relative humidity (H-H)
10 - 90%
Logistics data
Harmonized System (HS) code
85285210
Other features
Aspect ratio
4
Voltage tolerance
5%
Display viewable area (HxV)
304 x 228 mm
Dimensions (W x D x H) with stand
358 x 197 x 319 mm
Power supply type
AC/DC
