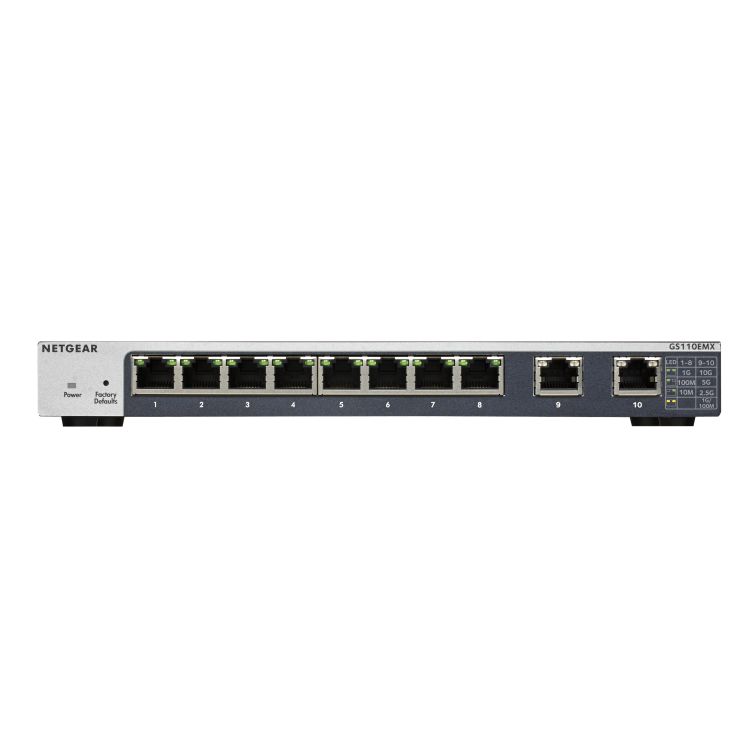

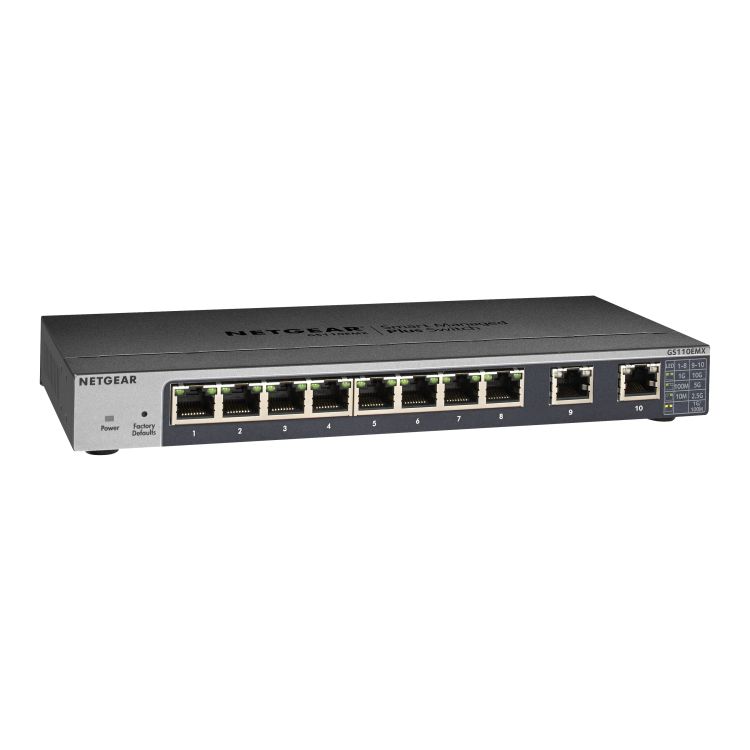

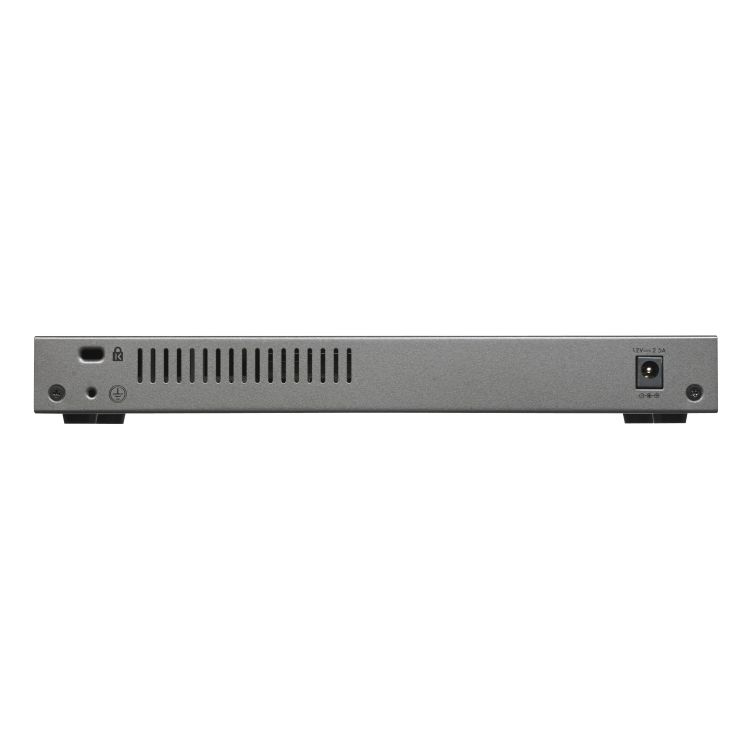

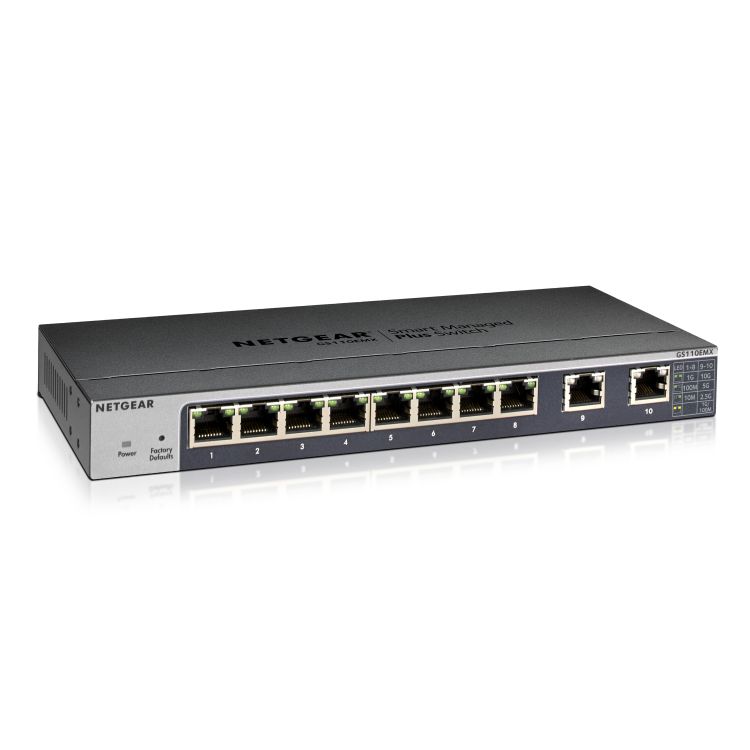

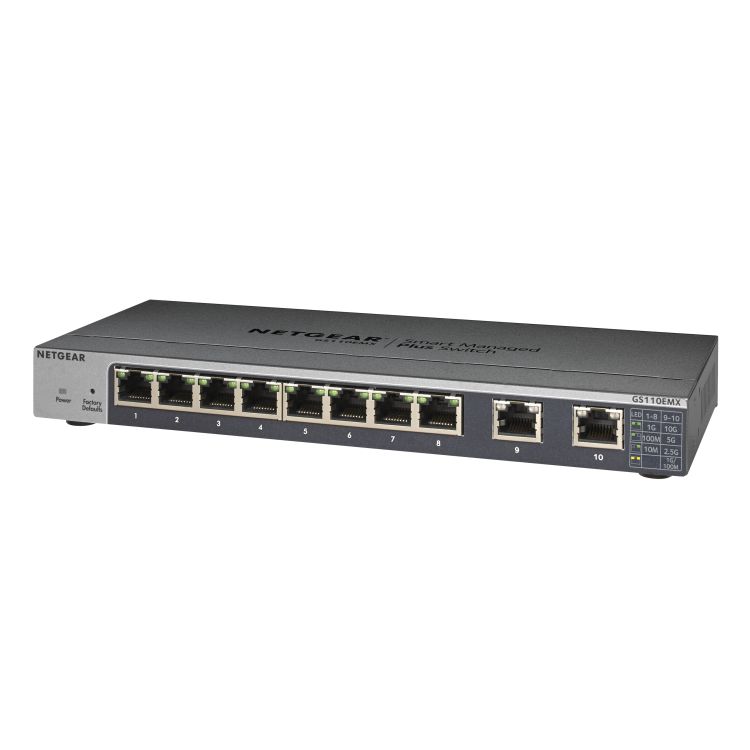

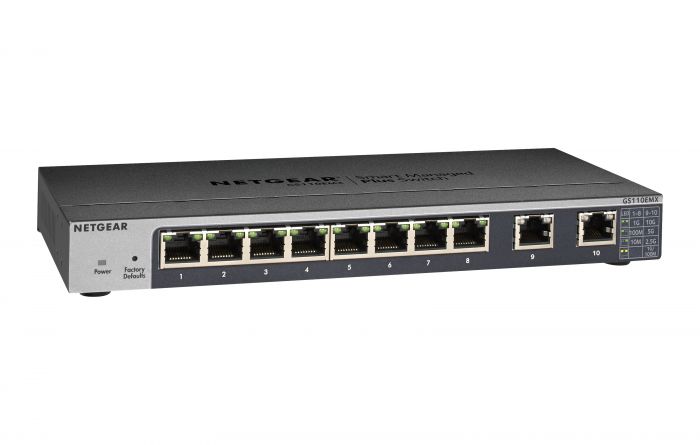

NETGEAR GS110EMX Managed L2/L3 Gigabit Ethernet (10/100/1000) Black
EAN:
0606449128932
NETGEAR GS110EMX. Switch type: Managed, Switch layer: L2/L3. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 10. Full duplex. MAC address table: 16000 entries, Switching...
Product Description
Product Description
0
NETGEAR GS110EMX. Switch type: Managed, Switch layer: L2/L3. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 10. Full duplex. MAC address table: 16000 entries, Switching capacity: 56 Gbit/s. Networking standards: IEEE 802.1Q, IEEE 802.1p, IEEE 802.3az, IEEE 802.3x. Power connector: DC-in jack. Wall mountable, Rack mounting
NETGEAR GS110EMX. Switch type: Managed, Switch layer: L2/L3. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 10. Full duplex. MAC address table: 16000 entries, Switching capacity: 56 Gbit/s. Networking standards: IEEE 802.1Q, IEEE 802.1p, IEEE 802.3az, IEEE 802.3x. Power connector: DC-in jack. Wall mountable, Rack mounting
Technical Spec
Technical Spec
Product Description
NETGEAR GS110EMX, Managed, L2/L3, Gigabit Ethernet (10/100/1000), Full duplex, Rack mounting, Wall mountable
Tech Specs
Management features
Switch type
Managed
Switch layer
L2/L3
Quality of Service (QoS) support
Yes
Web-based management
Yes
Virtual Cable Test (VCT)
Yes
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity
10
Basic switching RJ-45 Ethernet ports type
Gigabit Ethernet (10/100/1000)
Installed SFP modules quantity
0
Installed SFP+ modules quantity
0
Gigabit Ethernet (copper) ports quantity
8
Power connector
DC-in jack
Network
Networking standards
IEEE 802.1Q, IEEE 802.1p, IEEE 802.3az, IEEE 802.3x
10G support
Yes
Cable types supported
Cat5, Cat5e, Cat6, Cat6a, Cat7
Port mirroring
Yes
Full duplex
Yes
Flow control support
Yes
Link aggregation
Yes
Broadcast storm control
Yes
Rate limiting
Yes
VLAN support
Yes
Virtual LAN features
Voice VLAN, Tagged VLAN, Port-based VLAN
Number of VLANs
64
Data transmission
MAC address table
16000 entries
Switching capacity
56 Gbit/s
Forwarding rate
41.664 Mpps
Latency (10-100 Mbps)
7 µs
Latency (1 Gbps)
4 µs
Latency (10 Gbps)
3 µs
Number of queues
8
Jumbo frames support
Yes
Jumbo frames
10240
Packet buffer memory
0.128 MB
Security
DHCP features
DHCP client
IGMP snooping
Yes
Loop protection
Yes
Password protection
Yes
DoS attack prevention
Yes
Queue scheduling algorithms
Weighted Round Robin (WRR)
Multicast features
Multicast support
Yes
Number of multicast groups filtered
128
Design
Rack mounting
Yes
Product colour
Black
Housing material
Metal
LED indicators
Link, Power, Speed
Wall mountable
Yes
Number of fans
0 fan(s)
Safety
UL/cUL Listed (UL 60950-1)/CAN/CSA C22.2 No. 60960-1-07, EN 60950-1
Electromagnetic compatibility
Class B
Performance
Noise level
0 dB
Firmware upgradeable
Yes
Power
Output voltage
12 V
Output current
2.5 A
Power consumption (typical)
6.6 W
Power consumption (max)
15.6 W
Power over Ethernet (PoE)
Power over Ethernet (PoE)
No
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-20 - 70 °C
Operating relative humidity (H-H)
0 - 90%
Storage relative humidity (H-H)
0 - 95%
Operating altitude
0 - 3000 m
Non-operating altitude
0 - 3000 m
Heat dissipation
53.35 BTU/h
Weight & dimensions
Width
236 mm
Depth
102 mm
Height
27 mm
Weight
750 g
Packaging content
Quick start guide
Yes
Rack mount kit
Yes
Packaging data
Wall mounting kit
Yes
AC adapter included
Yes
Rubber feet
Yes
Package width
164 mm
Package depth
270 mm
Package height
85 mm
Package weight
1.34 kg
Technical details
Shipping (inner) case height
33.9 cm
Shipping (inner) case width
49 cm
Shipping (inner) case length
39.1 cm
Shipping (inner) case net weight
15.5 kg
Products per shipping (inner) case
10 pc(s)
Master (outer) cases per pallet layer
6 pc(s)
Layers per pallet (air)
4 pc(s)
Layers per pallet (sea)
6 pc(s)
Certificates
Certification
47 CFR FCC Part 15, SubpartB, Class B
ICES-003
Logistics data
Harmonized System (HS) code
85176990
