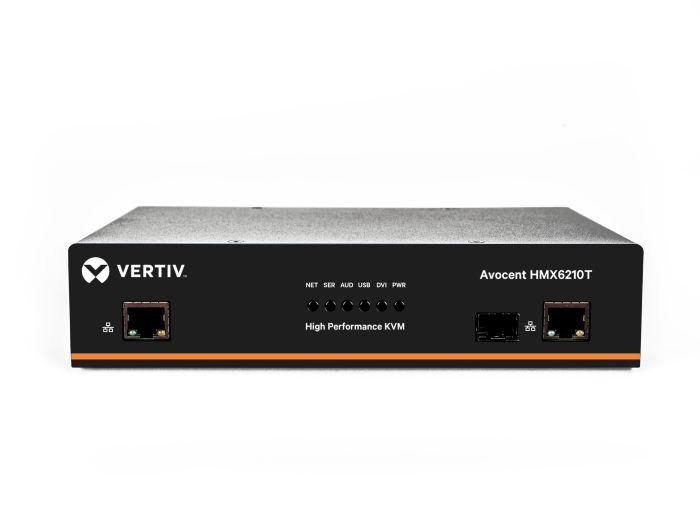

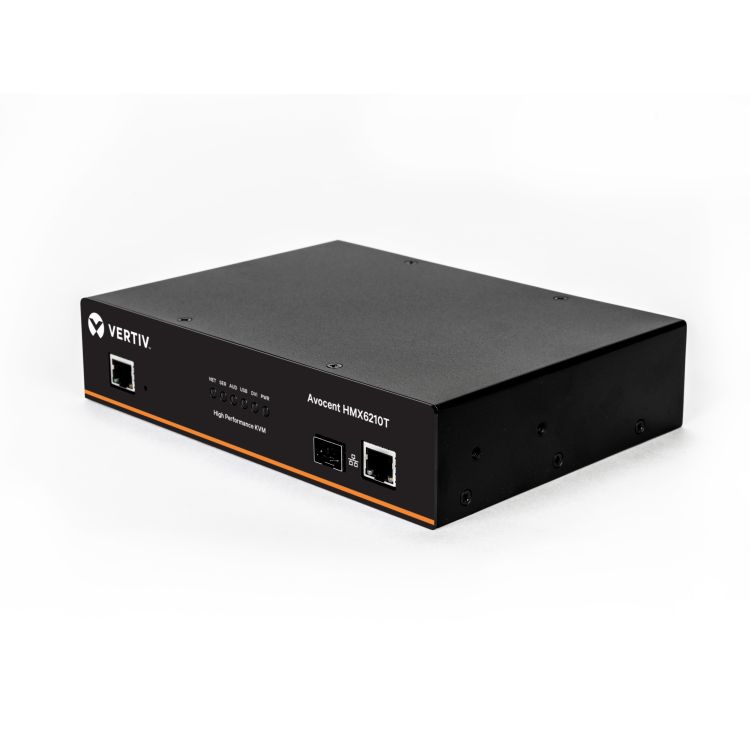

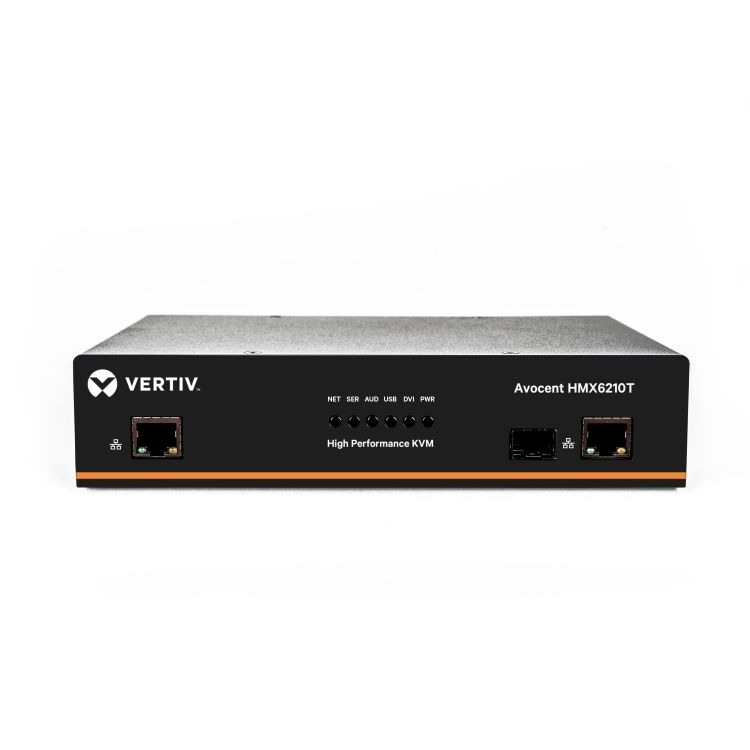

Vertiv Avocent HMX6210T KVM switch Rack mounting Blue
EAN:
0636430077949
Vertiv Avocent HMX6210T KVM switch Rack mounting Blue. Keyboard port type: USB, Mouse port type: USB, Video port type: DVI-D. HD type: 2K Ultra HD, Maximum resolution: 1920 x 1200 pixels, Video bandwidth: 60 Hz. Product colour: Blue, Rack...
Product Description
Product Description
Vertiv Avocent HMX6210T KVM switch Rack mounting Blue. Keyboard port type: USB, Mouse port type: USB, Video port type: DVI-D. HD type: 2K Ultra HD, Maximum resolution: 1920 x 1200 pixels, Video bandwidth: 60 Hz. Product colour: Blue, Rack capacity: 1U, Housing material: Metal. Power source: AC, Input voltage: 100 - 240 V, AC input frequency: 50 - 60 Hz. Width: 198 mm, Depth: 150 mm, Height: 44 mm
Technical Spec
Technical Spec
Product Description
Vertiv Avocent HMX6210T KVM switch Rack mounting Blue, 1920 x 1200 pixels, Ethernet LAN, 2K Ultra HD, Rack mounting, 1U, 20 W
Tech Specs

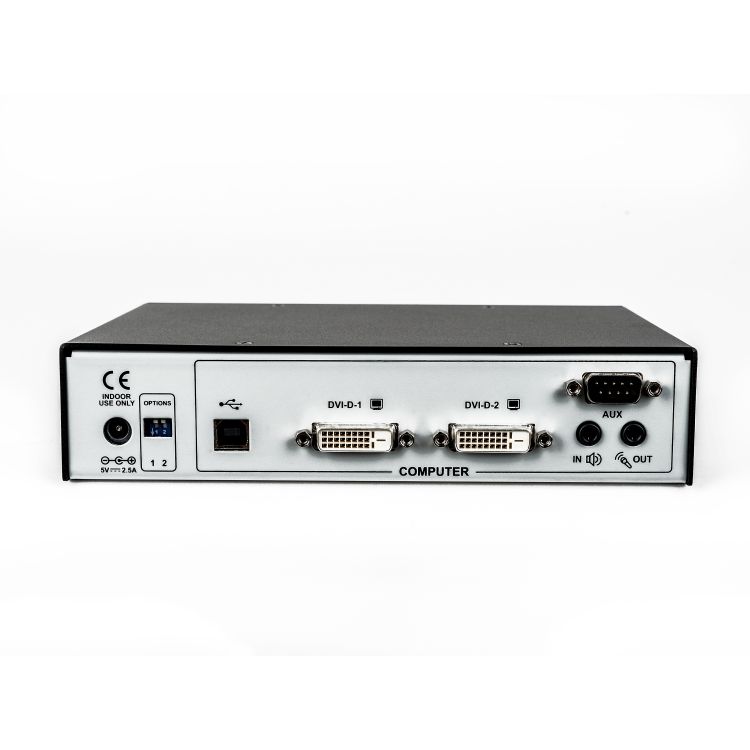

Ports & interfaces
Keyboard port type
USB
Mouse port type
USB
Video port type
DVI-D
DVI-D ports quantity
2
USB 2.0 Type-B ports quantity
1
USB 2.0 ports quantity
1
USB connector type
USB Type-B
Serial port type
DE-9 (DB-9)
Serial ports quantity
1
Audio connections
Yes
Headphone outputs
1
Number of microphone inputs
1
DC-in jack
Yes
Network
Ethernet LAN
Yes
Ethernet LAN (RJ-45) ports
1
Performance
HD type
2K Ultra HD
Maximum resolution
1920 x 1200 pixels
Video bandwidth
60 Hz
Number of users
16 user(s)
Firmware upgradeable
Yes
Design
Rack mounting
Yes
Product colour
Blue
Rack capacity
1U
Housing material
Metal
LED indicators
Yes
Hot keys
Yes
Certification
CE, FCC. UL
Display
Built-in display
No
Power
Power source
AC
Input voltage
100 - 240 V
AC input frequency
50 - 60 Hz
Input current
0.8 A
Output voltage
5 V
Power consumption (typical)
20 W
External power adapter
Yes
Compatible power plug types
EU
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-20 - 60 °C
Operating relative humidity (H-H)
10 - 90%
Storage relative humidity (H-H)
10 - 90%
Weight & dimensions
Width
198 mm
Depth
150 mm
Height
44 mm
Weight
1.1 kg

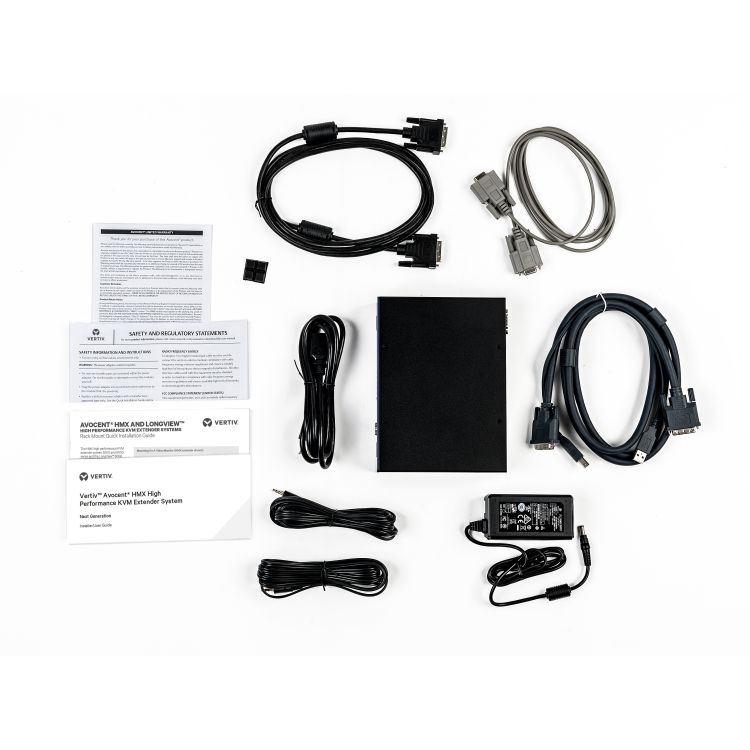

Packaging content
Cables included
AC, Audio (3.5mm), DVI, Serial, USB
Quick installation guide
Yes
Manual
Yes
AC adapter included
Yes
Logistics data
Harmonized System (HS) code
85176200
