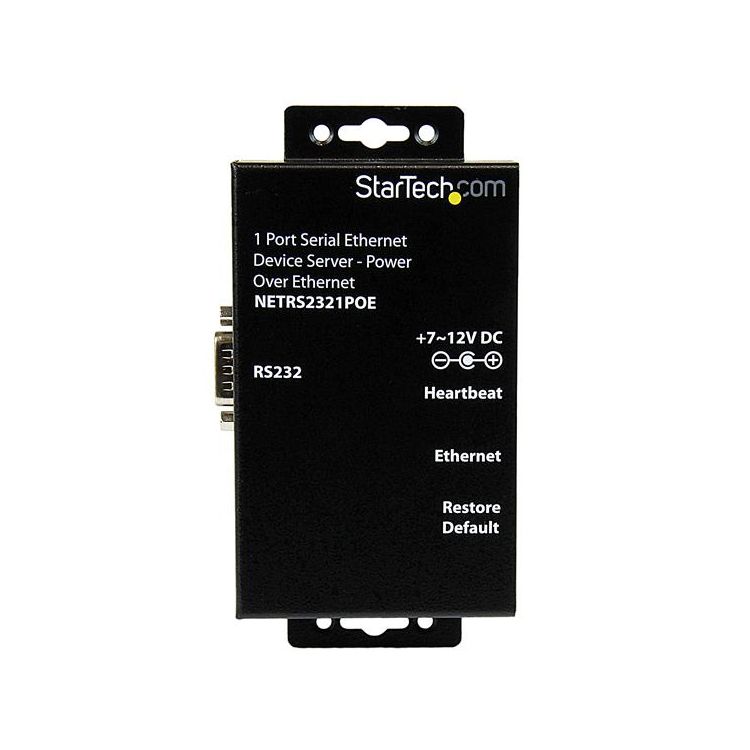

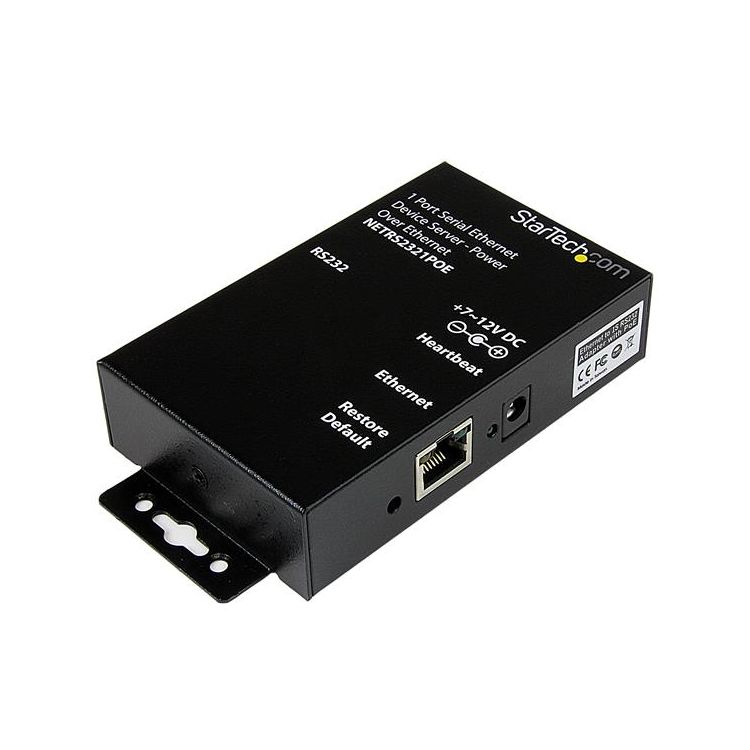

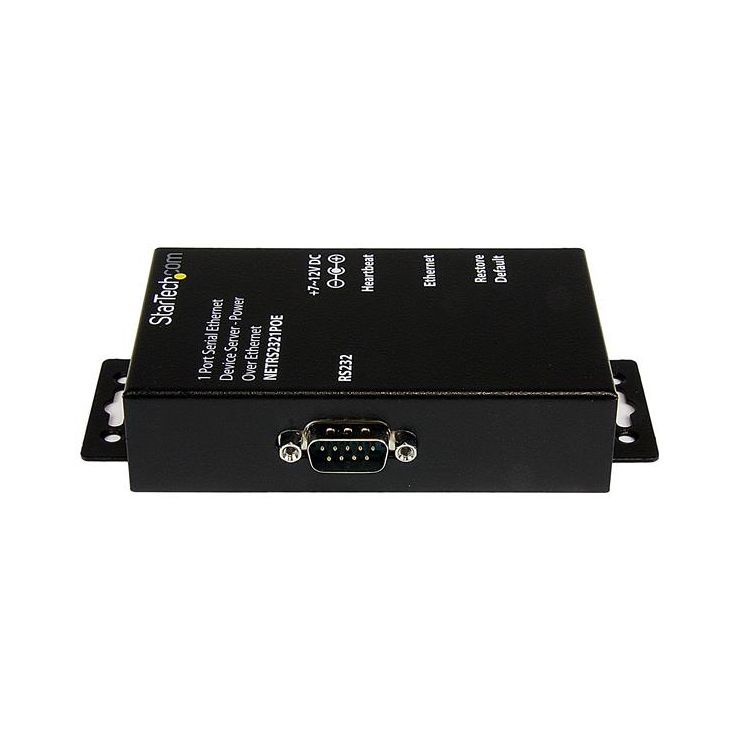

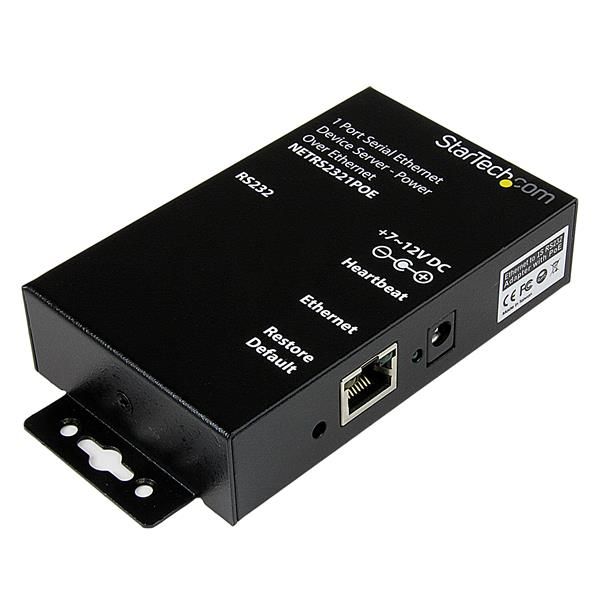

StarTech.com 1 Port RS232 Serial Ethernet Device Server - PoE Power Over Ethernet
EAN:
0065030834162
Connect to, configure and remotely manage an RS-232 serial device over an IP network
The NETRS2321POE 1 Port RS232 Serial Ethernet Device Server - PoE (Power Over Ethernet) allows you to install your RS232 devices anywhere on your TCP/IP Ethernet...
Product Description
Product Description
Connect to, configure and remotely manage an RS-232 serial device over an IP network
The NETRS2321POE 1 Port RS232 Serial Ethernet Device Server - PoE (Power Over Ethernet) allows you to install your RS232 devices anywhere on your TCP/IP Ethernet WAN/LAN, and access them as if they were right beside you - even over the Internet!
The Serial Device Server is designed to function seamlessly with your other integrated and add-on serial ports as if they were right inside your computer. Perfect for industrial automation, security, Point of Sale, or any long-range serial application, delivering reliable performance in any environment.
The Ethernet/serial device server supports PoE (Power over Ethernet) when connected to a PoE compliant device - eliminating the need for an external power supply and outlet, and making it easier to situate the device server as needed.
Backed by a StarTech.com 2-year warranty and free lifetime technical support.
The StarTech.com Advantage
- PoE support gives you the freedom to situate your serial device where it is needed even when no power outlet is available
- IP-based connection to your serial devices allows remote administration from anywhere; even over the Internet
- Remotely connect to multiple NETRS2321POE units with a single PC for simple and efficient management of devices from a single location
Technical Spec
Technical Spec
Product Description
StarTech.com 1 Port RS232 Serial Ethernet Device Server - PoE Power Over Ethernet, 10/100Base-T(X), 12 V, 100 mA, UDP, IP, TCP, ICMP, HTTP, DHCP, ARP-Ping, Windows 2000,Windows 2000 Professional,Windows Vista Business,Windows Vista Enterprise,Windows..., 66.3 x 107 x 25.4 mm
Tech Specs
Technical details
Serial ports quantity
1
Serial interface type
RS-232
Ethernet LAN data rates
10,100 Mbit/s
Data transfer rate
0.1152 Mbit/s
Networking standards
IEEE 802.3af
Ports & interfaces
Ethernet LAN (RJ-45) ports
1
Cabling technology
10/100Base-T(X)
Power
Input voltage
12 V
Power consumption
100 mA
Protocols
Supported network protocols
UDP, IP, TCP, ICMP, HTTP, DHCP, ARP-Ping
Indication
Link/Act LED
Y
Software
Windows operating systems supported
Windows 2000,Windows 2000 Professional,Windows Vista Business,Windows Vista Enterprise,Windows Vista Home Basic,Windows Vista Home Premium,Windows Vista Ultimate,Windows XP Home,Windows XP Professional
Weight & dimensions
Dimensions (WxDxH)
66.3 x 107 x 25.4 mm
Weight
480 g
Package width
55 mm
Package height
158 mm
Operational conditions
Operating temperature (T-T)
0 - 55 °C
Storage temperature (T-T)
-20 - 85 °C
Operating relative humidity (H-H)
5 - 95%
Other features
Compatible operating systems
Win2000, Win XP 32bit, Vista 32bit
Design
Certification
CE, FCC, RoHS
