StarTech.com PCI to PCI Express Adapter Card
EAN:
0065030837835
Install half-height/low profile x1 PCI Express interface cards in a standard PCI expansion slot
The PCI1PEX1 PCI to PCI Express Adapter card lets you use low profile PCIe expansion cards in a server/desktop motherboard PCI slot. The adapter...
Product Description
Product Description
Install half-height/low profile x1 PCI Express interface cards in a standard PCI expansion slot

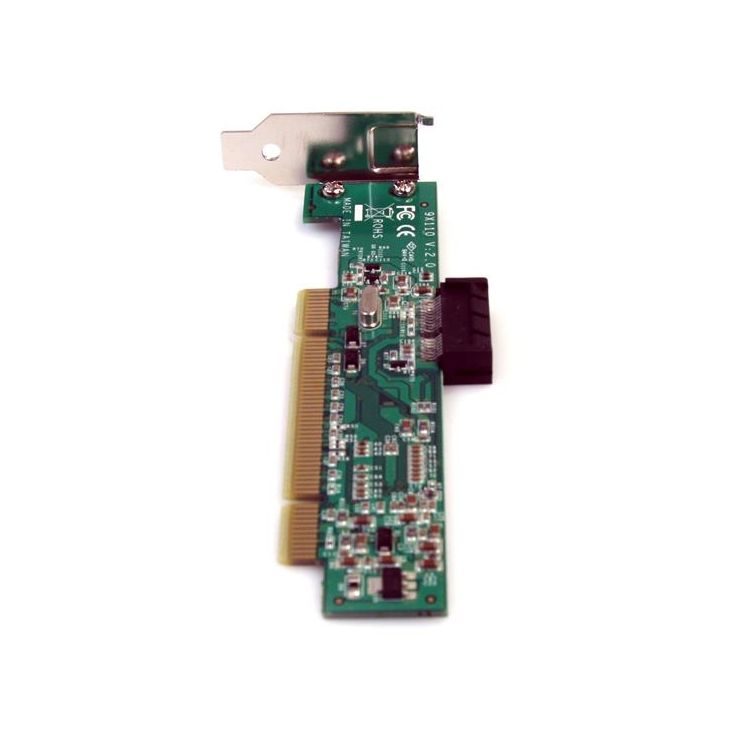

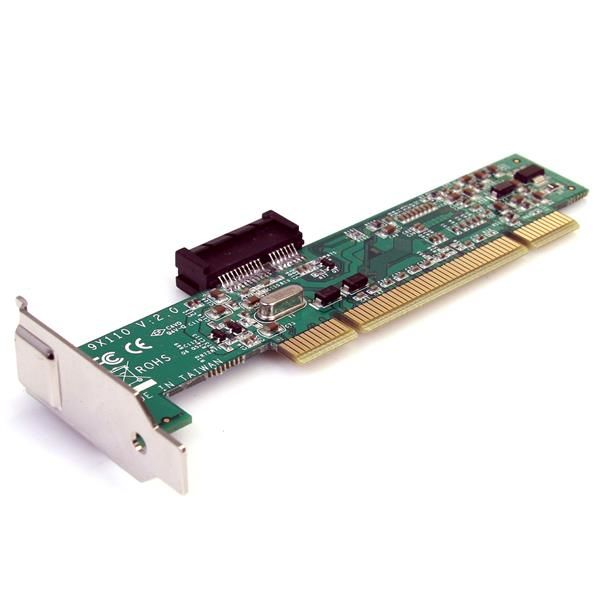

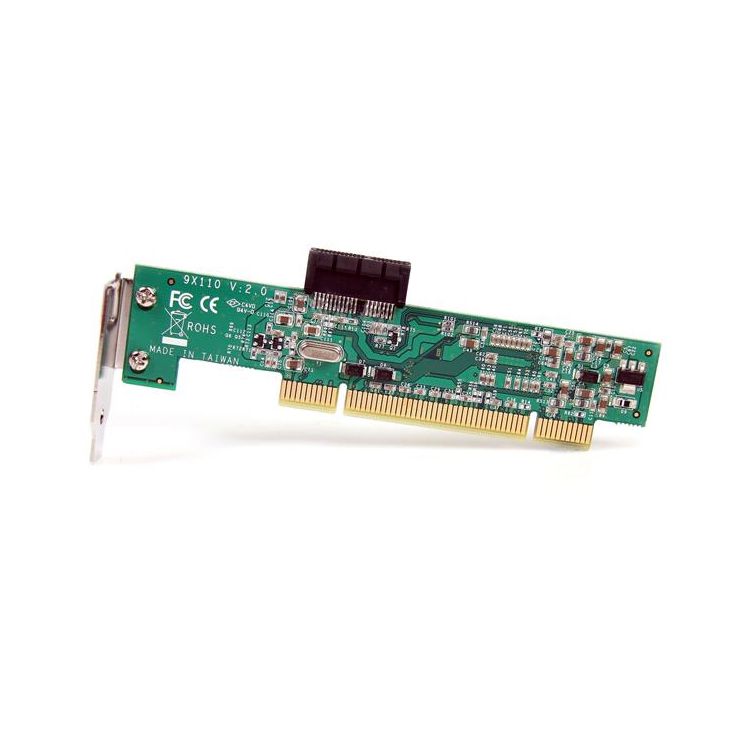

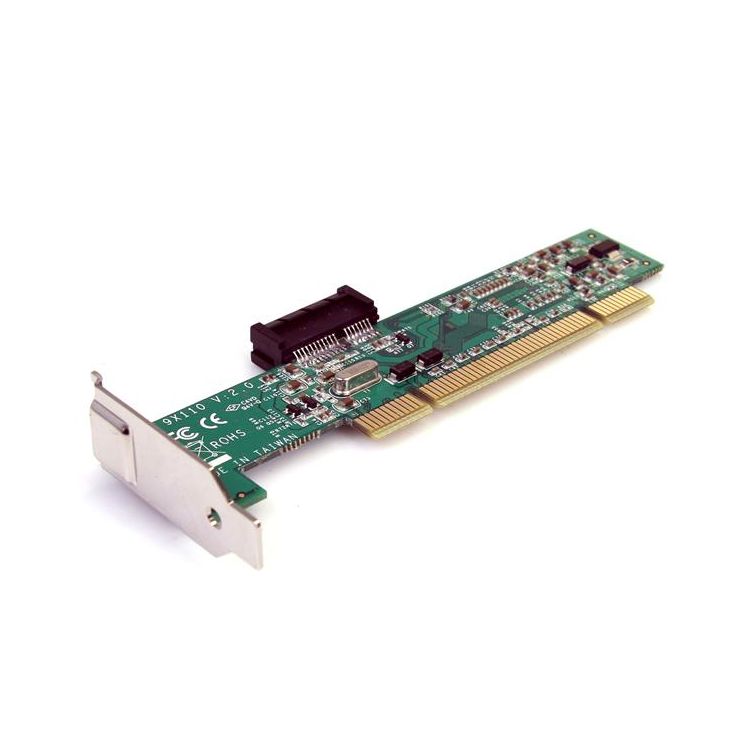

The PCI1PEX1 PCI to PCI Express Adapter card lets you use low profile PCIe expansion cards in a server/desktop motherboard PCI slot. The adapter connects through a 32-bit PCI slot to provide a low profile PCIe x1 slot in its place; a spare, full size bracket is included for installation in larger desktop or server expansion slots that can accommodate a full-sized card.

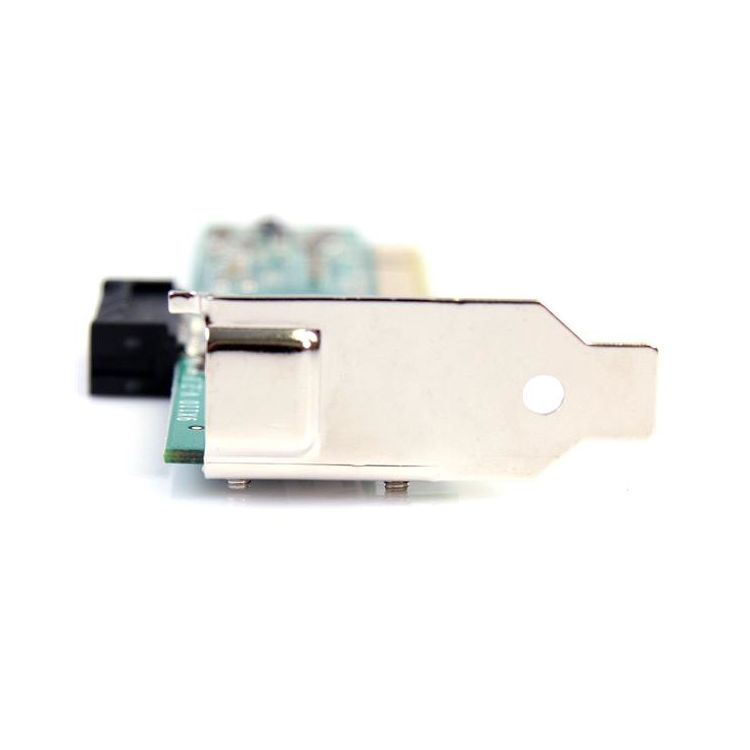

The PCI to PCI Express Adapter features an innovative bracket design that adapts and secures the low profile PCI Express card into the converted slot, ensuring a versatile and economical solution for extending the usability of older PCI motherboards or using low profile PCIe cards that do not have PCI equivalents.
The StarTech.com Advantage
- The unique bracket design allows a low profile/half-height PCI Express card to work seamlessly in a PCI-based expansion slot
- Backed by a StarTech.com 2-year warranty and free lifetime technical support
Technical Spec
Technical Spec
Product Description
StarTech.com PCI to PCI Express Adapter Card, PCIe, 1x PCIe FM, Pericom PI7C9X111SLBFDE, Green, CE, FCC, 0 - 85 °C
Tech Specs
Ports & interfaces
Host interface
PCIe
Connector(s)
1x PCIe FM
Performance
Chipset
Pericom PI7C9X111SLBFDE
Product colour
Green
Design
Certification
CE, FCC
Operational conditions
Operating temperature (T-T)
0 - 85 °C
Storage temperature (T-T)
-10 - 95 °C
Operating relative humidity (H-H)
0 - 95%
Weight & dimensions
Width
60 mm
Depth
135 mm
Height
20 mm
Weight
27 g
Package width
39 mm
Package depth
208 mm
Package height
145 mm
Package weight
120 g
Other features
Ports quantity
1
Platform
PC
Connectivity technology
Wired
Form factor
LP/ST
Mac compatibility
N
Compatible operating systems
Windows 2000, XP(32/64bit), Server 2003(32/64bit), Vista(32/64bit), 7(32/64bit), Server 2008 R2
Linux
Linux
Power requirements
3.3/5V
