StarTech.com PCI Express to PCI Adapter Card
EAN:
0065030834629
Install half-height/low profile PCI interface cards in a standard PCI Express expansion slot
This PCIe to PCI Adapter Card lets you use low profile PCI expansion cards in a server or desktop motherboard PCI Express slot. Compliant with PCI Express...
Product Description
Product Description
Install half-height/low profile PCI interface cards in a standard PCI Express expansion slot

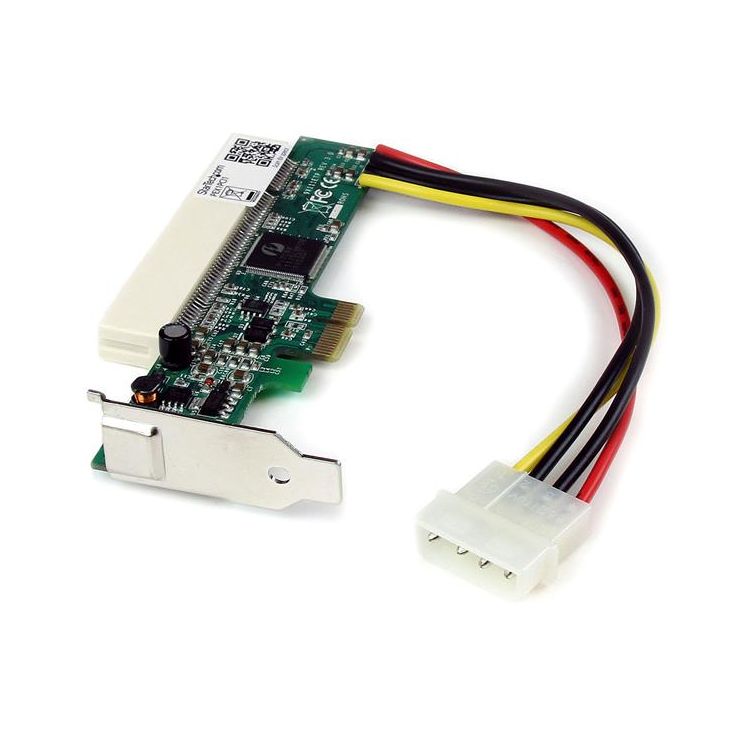

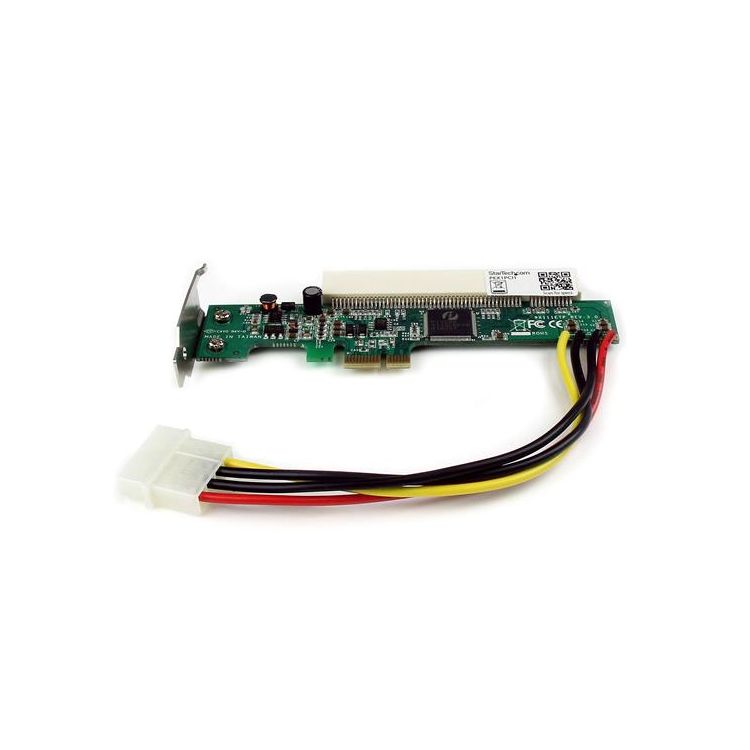

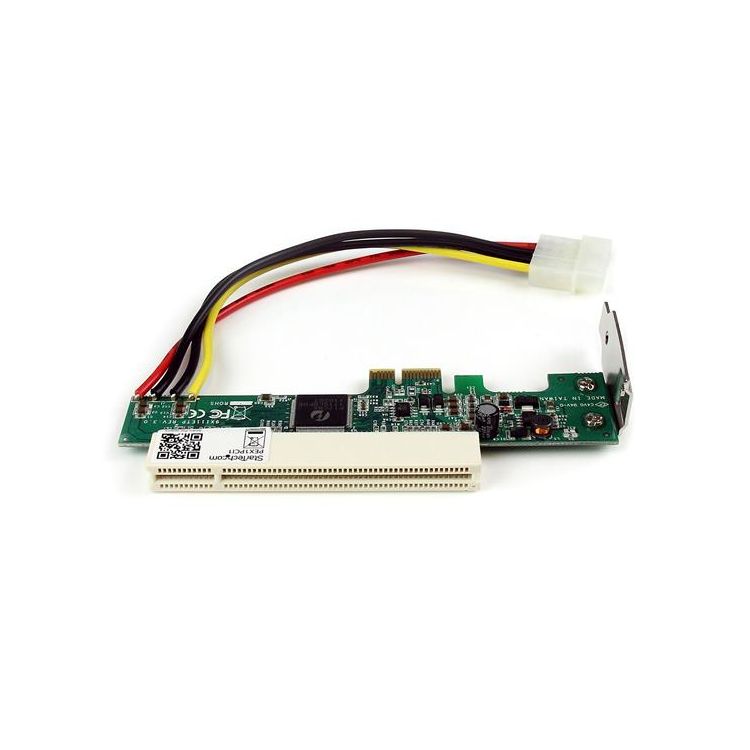

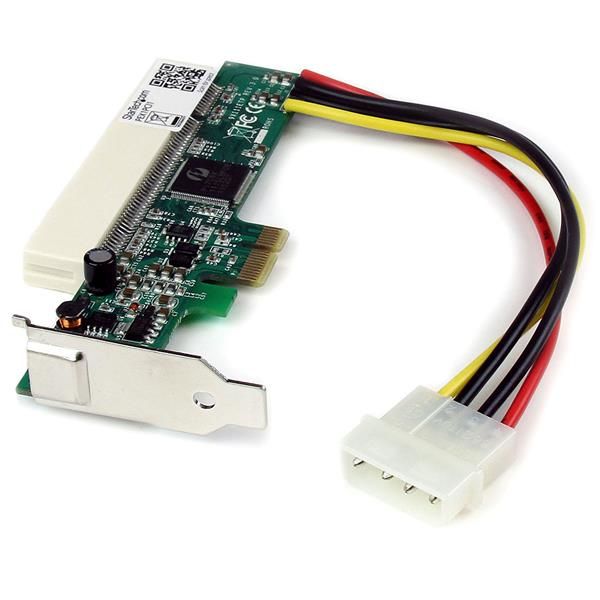

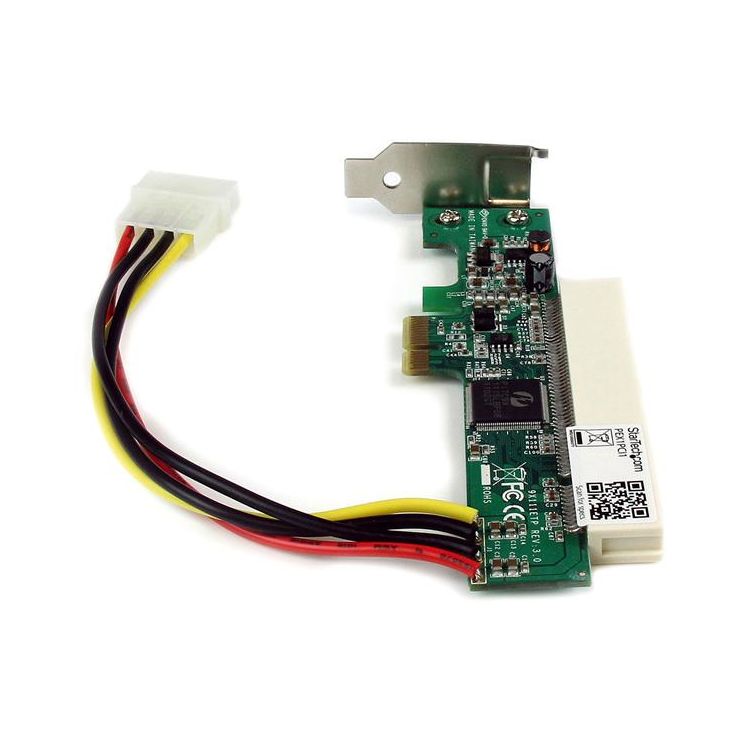

This PCIe to PCI Adapter Card lets you use low profile PCI expansion cards in a server or desktop motherboard PCI Express slot. Compliant with PCI Express Specification 1.0a and PCI Specification 2.2, the adapter card connects through a PCIe 1x slot to provide a low profile PCI slot in its place. A spare full size bracket for PCI Express card is also included for use in larger desktop or server PCI Express slots.
A versatile solution, the adapter card converts PCIe to PCI or PCI-X; a built-on LP4 power connector links the card to the computer power supply, allowing you to install universal voltage PCI cards (3.3V/5V).
The adapter card offers an economical solution that lets you extend the usability of older or extra PCI Bus cards in newer PCIe capable systems.
To ensure suitable installation in any low profile server or desktop computer, the PCIe/PCI adapter features an innovative bracket design that adapts and secures the low profile PCI or PCI-X card into the converted slot.
The StarTech.com Advantage
- The unique bracket design allows a low profile/half-height PCI card to work seamlessly in a PCI Express-based expansion slot
- Backed by a StarTech.com 2-year warranty and free lifetime technical support
Technical Spec
Technical Spec
Product Description
StarTech.com PCI Express to PCI Adapter Card, PCIe, PCI 32-bit, PERICOM PI7C9X110BNBE, Red, 8.27 mm, CE, FC, ROHS
Tech Specs
Ports & interfaces
Host interface
PCIe
Output interface
PCI 32-bit
Performance
Chipset
PERICOM PI7C9X110BNBE
Product colour
Red
Package length
8.27 mm
Design
Certification
CE, FC, ROHS
Operational conditions
Operating temperature (T-T)
0 - 85 °C
Weight & dimensions
Width
70 mm
Depth
135 mm
Height
20 mm
Weight
52 g
Package width
140 mm
Package depth
210 mm
Package height
40 mm
Package weight
140 g
Other features
Ports quantity
1
Platform
PC
Connectivity technology
Wired
Form factor
LP/ST
Mac compatibility
N
Compatible operating systems
Windows 2000/XP/Vista
Power requirements
3.3V
I/O ports
1x PCI 32-bit
