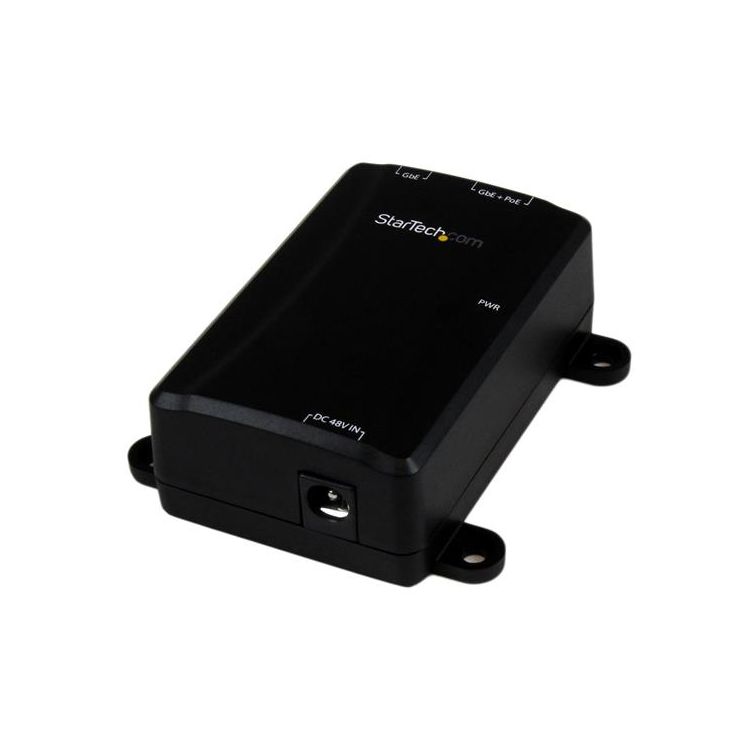

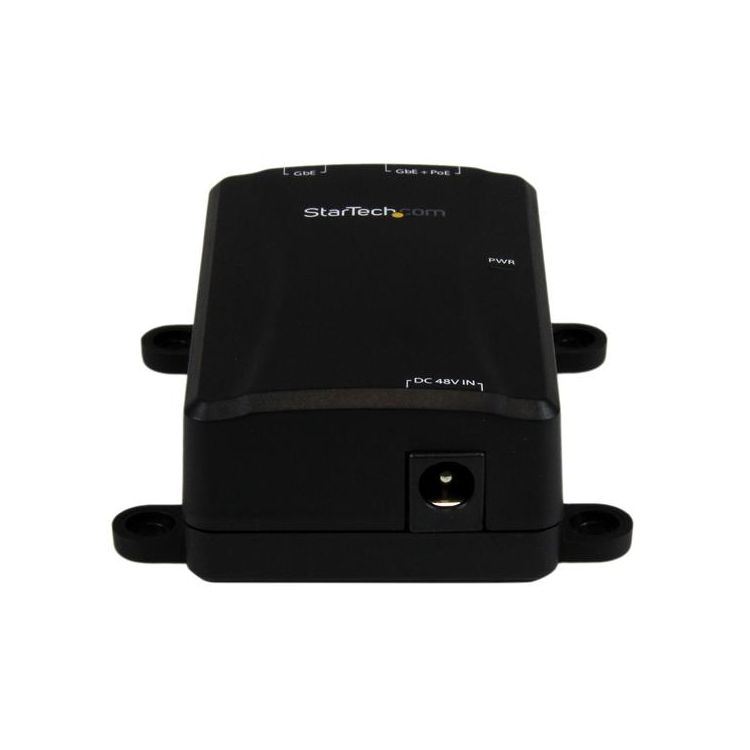

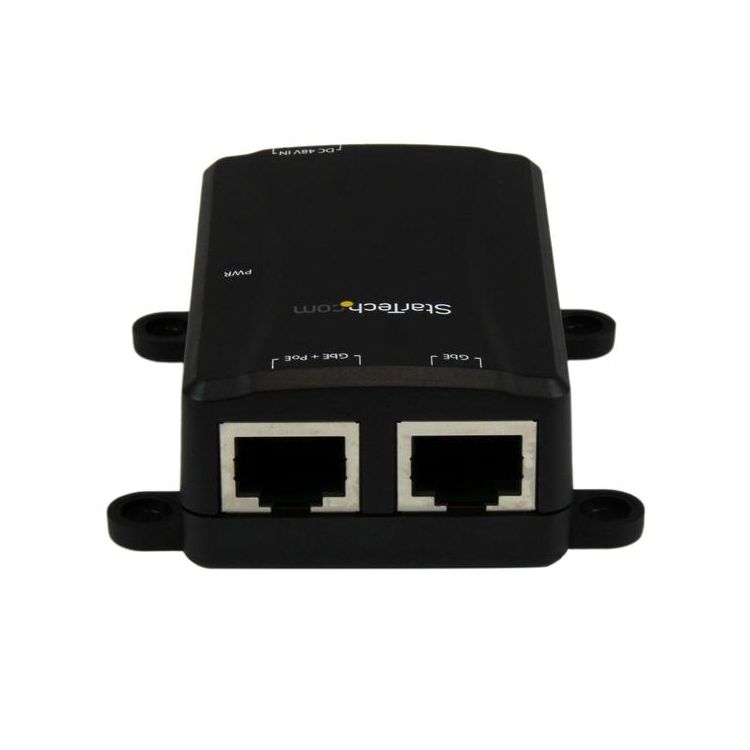

StarTech.com 1-Port Gigabit Midspan - PoE+ Injector - 802.3at and 802.3af
EAN:
0065030865500
StarTech.com 1-Port Gigabit Midspan - PoE+ Injector - 802.3at and 802.3af. Ethernet interface type: Gigabit Ethernet, Ethernet LAN data rates: 10,100,1000 Mbit/s, Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE...
Product Description
Product Description
StarTech.com 1-Port Gigabit Midspan - PoE+ Injector - 802.3at and 802.3af. Ethernet interface type: Gigabit Ethernet, Ethernet LAN data rates: 10,100,1000 Mbit/s, Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u. Product colour: Black, Maximum operating distance: 100 m, LED indicators: Power. Power over Ethernet (PoE) voltage: 48 V, Output power: 30 W, Input voltage: 100 - 240 V. Width: 63 mm, Depth: 70 mm, Height: 25 mm. Package width: 230 mm, Package depth: 190 mm, Package height: 76 mm
Technical Spec
Technical Spec
Product Description
StarTech.com 1-Port Gigabit Midspan - PoE+ Injector - 802.3at and 802.3af, Gigabit Ethernet, 10,100,1000 Mbit/s, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, Full, Cat5, Black
Tech Specs
Ethernet interface type
Gigabit Ethernet
Ethernet LAN data rates
10,100,1000 Mbit/s
Power over Ethernet (PoE)
Yes
Networking standards
IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u
Duplex system
Full
Cable types supported
Cat5
Product colour
Black
Plug and Play
Yes
Maximum operating distance
100 m
LED indicators
Power
Ethernet LAN (RJ-45) ports
2
DC-in jack
Yes
Power over Ethernet (PoE) voltage
48 V
Output power
30 W
Input voltage
100 - 240 V
Input current
0.75 A
Output current
0.64 A
Power consumption (max)
36 W
Operating temperature (T-T)
0 - 45 °C
Operating relative humidity (H-H)
10 - 90%
Storage temperature (T-T)
-20 - 85 °C
Width
63 mm
Depth
70 mm
Height
25 mm
Weight
50 g
Package width
230 mm
Package depth
190 mm
Package height
76 mm
Package weight
1 kg
AC adapter included
Yes
Power cord included
Yes
Quick installation guide
Yes
Sustainability certificates
CE, RoHS
Harmonized System (HS) code
85044095
Master (outer) case width
400 mm
Master (outer) case length
490 mm
Master (outer) case height
260 mm
Products per master (outer) case
12 pc(s)
