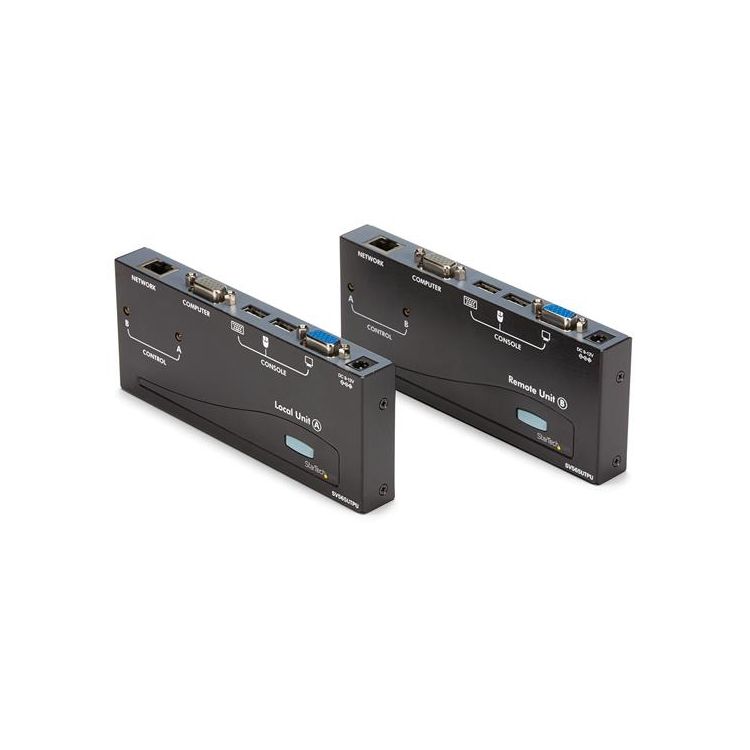

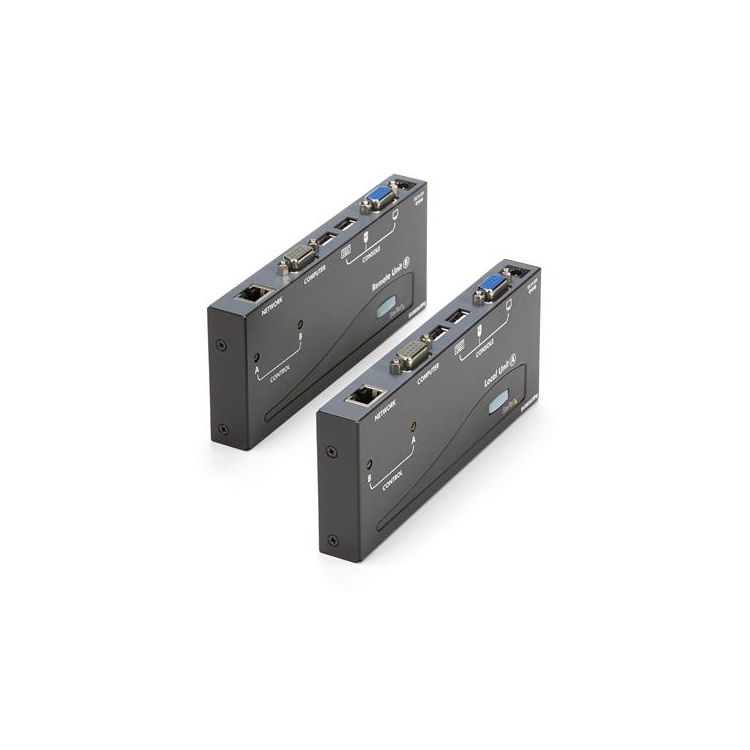

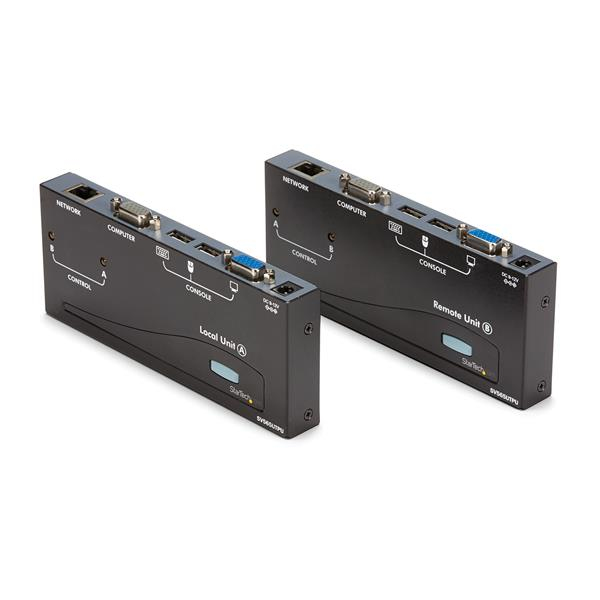

StarTech.com USB VGA KVM Console Extender over CAT5 UTP (500 ft)
EAN:
0065030834506
StarTech.com USB VGA KVM Console Extender over CAT5 UTP (500 ft). Type: Transmitter & receiver, Connectivity technology: Wired, Maximum transfer distance: 150 m. Transmitter video port type: VGA, Transmitter local video port type: VGA. USB port...
Product Description
Product Description
StarTech.com USB VGA KVM Console Extender over CAT5 UTP (500 ft). Type: Transmitter & receiver, Connectivity technology: Wired, Maximum transfer distance: 150 m. Transmitter video port type: VGA, Transmitter local video port type: VGA. USB port type: USB Type-A. Power plug type: Type M, AC input voltage: 100 - 240 V, Input current: 0.2 A. Transmitter width: 15.5 cm, Transmitter depth: 7.5 cm, Transmitter height: 2 cm
Technical Spec
Technical Spec
Product Description
StarTech.com USB VGA KVM Console Extender over CAT5 UTP (500 ft), Transmitter & receiver, Wired, 150 m, Black, CE, FCC, RoSH, VGA
Tech Specs
Features
Type
Transmitter & receiver
Connectivity technology
Wired
Maximum transfer distance
150 m
Rack mounting
No
Product colour
Black
Plug and Play
Yes
Certification
CE, FCC, RoSH
Transmitter
Transmitter video port type
VGA
Transmitter local video port
Yes
Transmitter local video port type
VGA

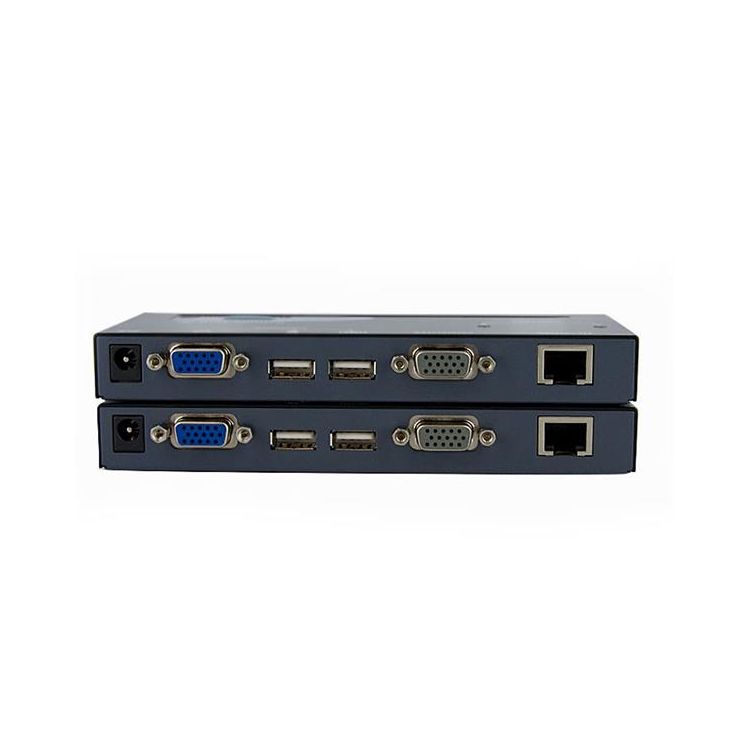

Ports & interfaces
USB port type
USB Type-A
USB 2.0 ports quantity
4
RJ-45 ports quantity
2
Power
Power plug type
Type M
AC input voltage
100 - 240 V
Input current
0.2 A
AC adapter output voltage
9 V
AC adapter output current
0.6 A
Power consumption (transmitter) (max)
5.4 W
Power consumption (receiver) (max)
5.4 W
Weight & dimensions
Transmitter width
15.5 cm
Transmitter depth
7.5 cm
Transmitter height
2 cm
Transmitter weight
299 g
Receiver width
15.5 cm
Receiver depth
7.5 cm
Receiver height
2 cm
Receiver weight
299 g
Packaging data
Package width
85 mm
Package depth
294 mm
Package height
243 mm
Package weight
1.7 kg

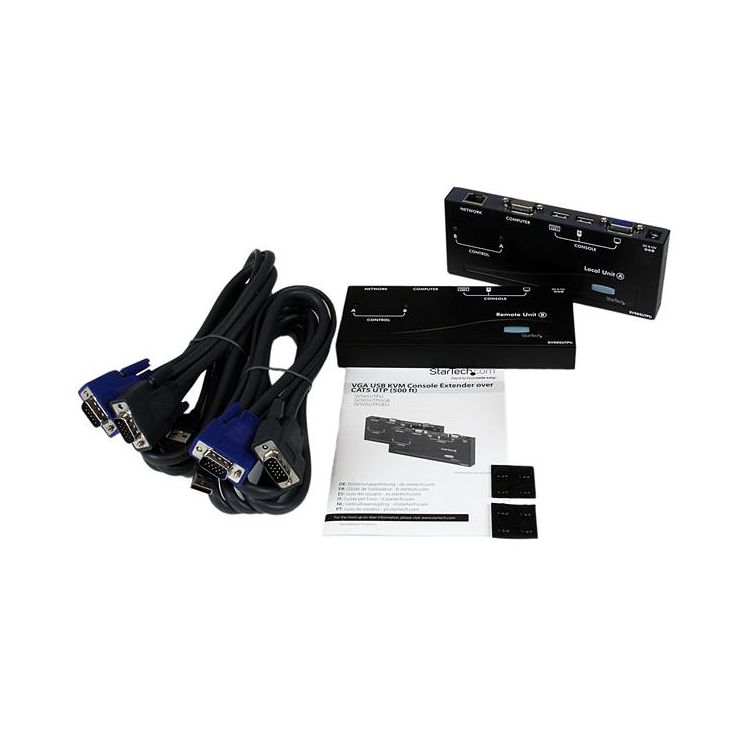

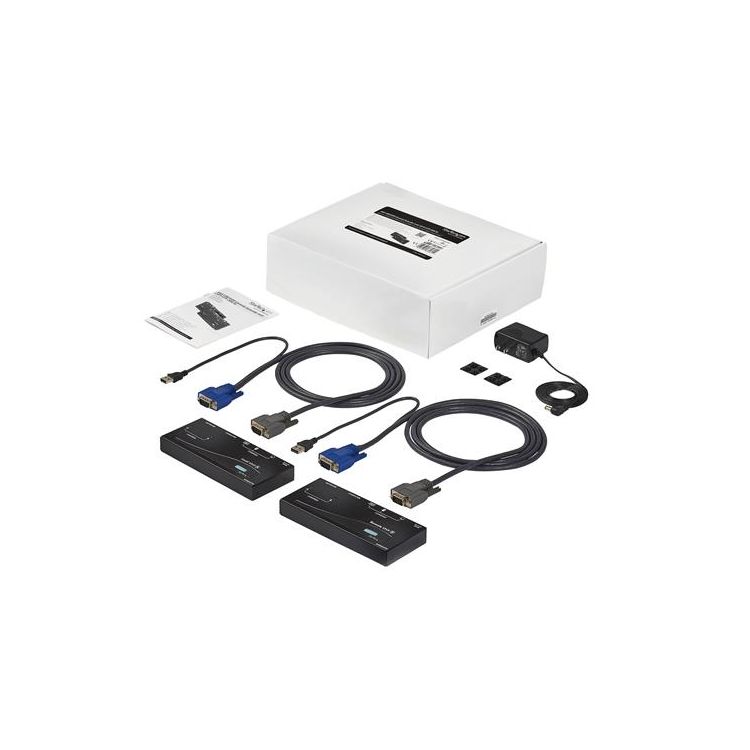

Packaging content
AC adapter included
Yes
Cables included
KVM
Manual
Yes
Operational conditions
Operating temperature (T-T)
0 - 50 °C
Storage temperature (T-T)
-20 - 60 °C
Operating relative humidity (H-H)
0 - 80%
Technical details
Maximum resolution
1280 x 1024 pixels
Power requirements
230 AC
Weight
299 g
Logistics data
Harmonized System (HS) code
84733080
