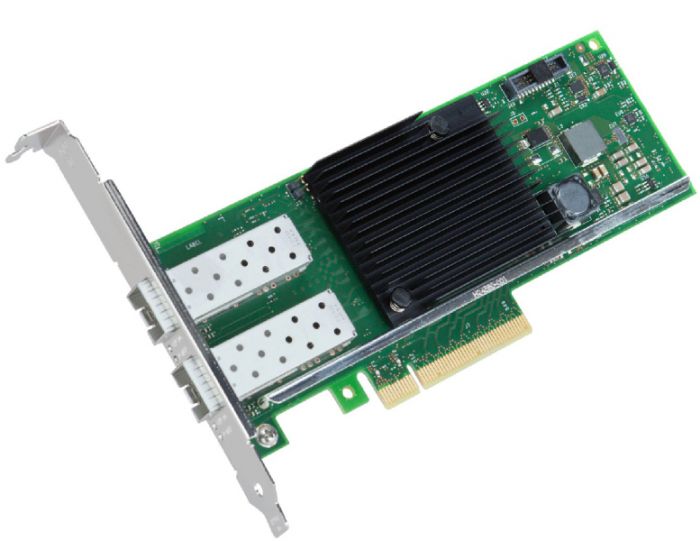

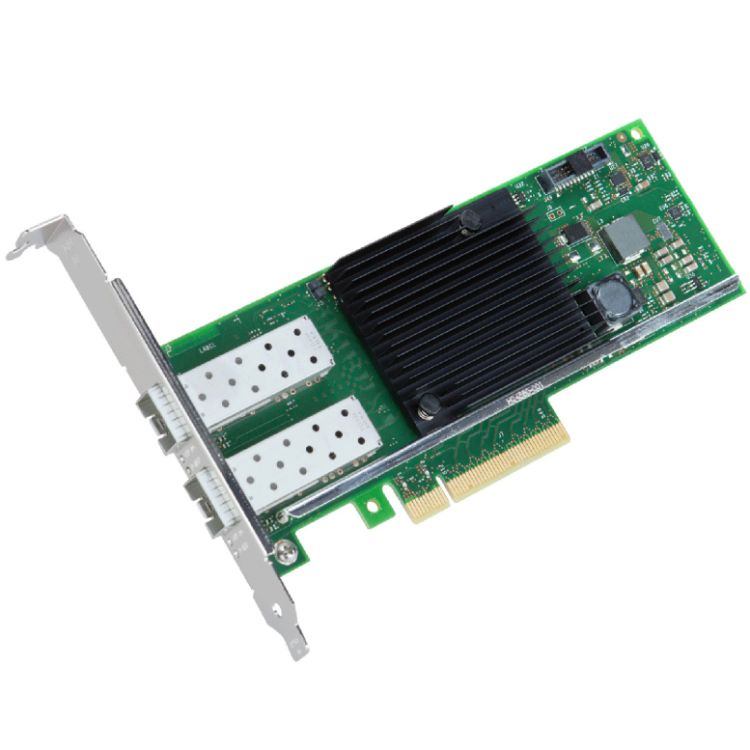

Intel X710DA2 networking card Internal Fiber 10000 Mbit/s
EAN:
0675901263580
Intel® Ethernet Power Management Technology provides solutions to common power management approaches by reducing idle power, reducing capacity and power as a function of demand, operating at maximum energy efficiency whenever possible, and...
Product Description
Product Description
Intel® Ethernet Power Management Technology provides solutions to common power management approaches by reducing idle power, reducing capacity and power as a function of demand, operating at maximum energy efficiency whenever possible, and enabling functionality only when needed.
Intel® Data Direct I/O Technology is a platform technology that improves I/O data processing efficiency for data delivery and data consumption from I/O devices. With Intel DDIO, Intel® Server Adapters and controllers talk directly to the processor cache without a detour via system memory, reducing latency, increasing system I/O bandwidth, and reducing power consumption.
Flexible Port Partitioning (FPP) technology utilizes industry standard PCI SIG SR-IOV to efficiently divide your physical Ethernet device into multiple virtual devices, providing Quality of Service by ensuring each process is assigned to a Virtual Function and is provided a fair share of the bandwidth.
Virtual Machine Device Queues (VMDq) is a technology designed to offload some of the switching done in the VMM (Virtual Machine Monitor) to networking hardware specifically designed for this function. VMDq drastically reduces overhead associated with I/O switching in the VMM which greatly improves throughput and overall system performance
Technical Spec
Technical Spec
Product Description
Intel X710DA2, Internal, Wired, PCI-E, Fiber, 10000 Mbit/s, Black,Green
Tech Specs
Intel® Virtualization Technology (Intel® VT)|http
//images.icecat.biz/img/feature_logo/84-3324.png|Simplify Virtualization and Reduce Overheads
Intel® Virtualization Technology (Intel® VT) helps make virtualization practical by eliminating performance overheads, reducing complexity, and improving security with hardware assistance. Virtualization allows multiple workloads to share a common set of resources so that a variety of workloads can co-locate while maintaining full isolation from each other.
Intel® Virtualization Technology (Intel® VT) helps make virtualization practical by eliminating performance overheads, reducing complexity, and improving security with hardware assistance. Virtualization allows multiple workloads to share a common set of resources so that a variety of workloads can co-locate while maintaining full isolation from each other.
Ports & interfaces
Connectivity technology
Wired
Internal
Y
Host interface
PCI-E
Interface
Fiber
Fiber ports quantity
2
Fiber optic connector
SFP+
Bandwidth
Maximum data transfer rate
10000 Mbit/s
Networking
Networking standards
IEEE 802.1as,IEEE 802.1p,IEEE 802.1Q,IEEE 802.3,IEEE 802.3ad
Chipset
X710-AM2
Ethernet LAN
Y
Ethernet LAN data rates
10000 Mbit/s
Flow control support
Y
Fiber ethernet cabling technology
10GBASE-LR,10GBASE-SR
LAN controller
Intel(R) X710
VLAN tagging
Y
Power
Power consumption (typical)
4.5 W
Protocols
Management protocols
PXE, SNMP, RMON
Supported network protocols
TCP, UDP, IP
Design
Product colour
Black,Green
LED indicators
Y
PCI Card form factor
Full-height (low-profile)
Performance
Number of VLANs
4096
Intel® Virtualization Technology (Intel® VT)
VT-c
Intel Virtual Machine Device Queues (VMDq)
Y
PCI-SIG* SR-IOV Capable
Y
On-chip QoS and Traffic Management
Y
Intel Flexible Port Partitioning
Y
Storage-over-ethernet
Y
Speed & slot width
8.0 GT/s, x 8 Lane
Intelligent Offloads
Y
iWARP/RDMA
N
Fiber Channel over Ethernet
Y
Intel Ethernet Power Management
Y
Intel Data Direct I/O Technology
Y
Ethernet adapter ARK ID
83964
System requirements
Linux operating systems supported
RedHat EL Linux 6.0
Other operating systems supported
FreeBSD
Server operating systems supported
Windows Server 2008 R2,Windows Server 2012,Windows Server 2012 R2
Weight & dimensions
Width
68.6 mm
Depth
167.1 mm
Certificates
Certification
FCC B, UL, CE, VCCI, BSMI, CTICK, KCC
Operational conditions
Operating temperature (T-T)
0 - 55 °C
Storage temperature (T-T)
-40 - 70 °C
Storage relative humidity (H-H)
35 - 90%
Other features
Cable type
SFP+ Direct Attached Twin Axial Cabling up to 10m
Compatible operating systems
intel.com/support/EthernetOS
Intel Trusted Execution Technology
N
Embedded options available
N
Message signal interrupt
N
Low halogen options available
Y
Intel Virtualization Technology for Connectivity (VT-c)
Y
Interface type
PCIe v3.0 (8.0 GT/s)
Technical details
Halogen free
N
Market segment
SRV
Product type
13
Number of QPI links
Dual
Design
Product family
Intel 10 Gigabit server adapter
Product series
Intel Converged X710
Product codename
Fortville
Other features
Storage Over Ethernet
iSCSI NFS
Technical details
Born on date
Q4'14
Bracket height
Low Profile and Full Height
Launch date
2014-10-01T00
Network interface card cable medium
Copper
Network interface card type
Server
Product brief URL
http
Product name
Intel Ethernet Converged Network Adapter X710-DA2
Status
Launched
