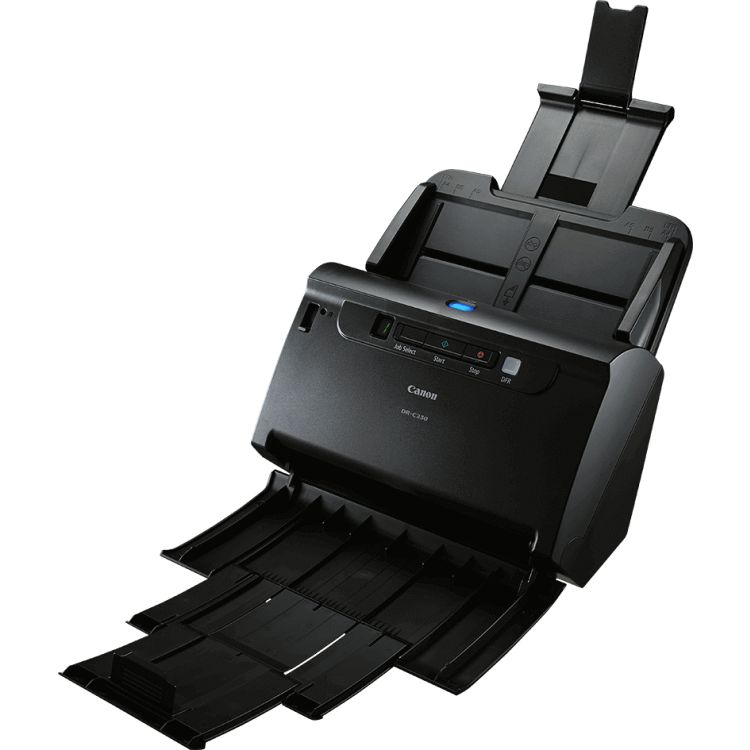

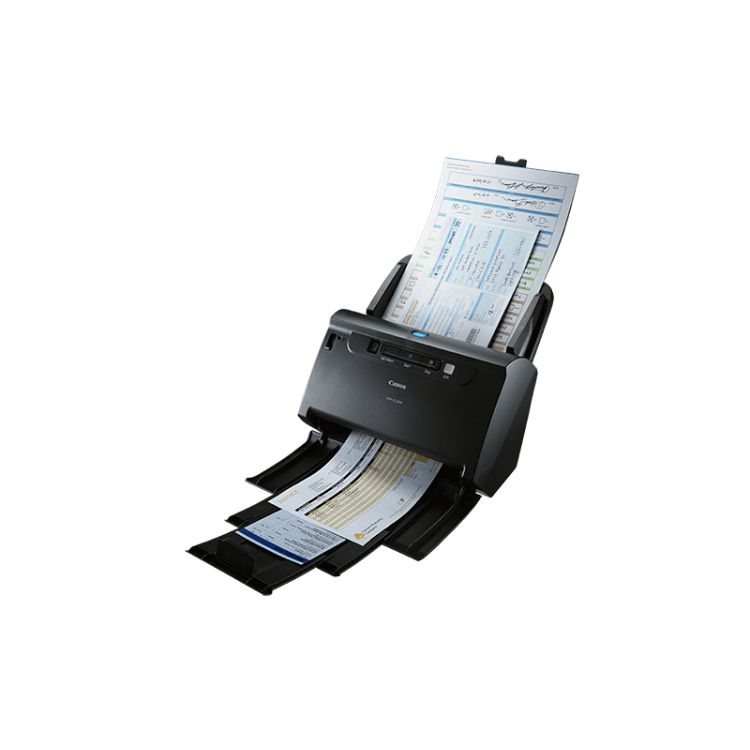

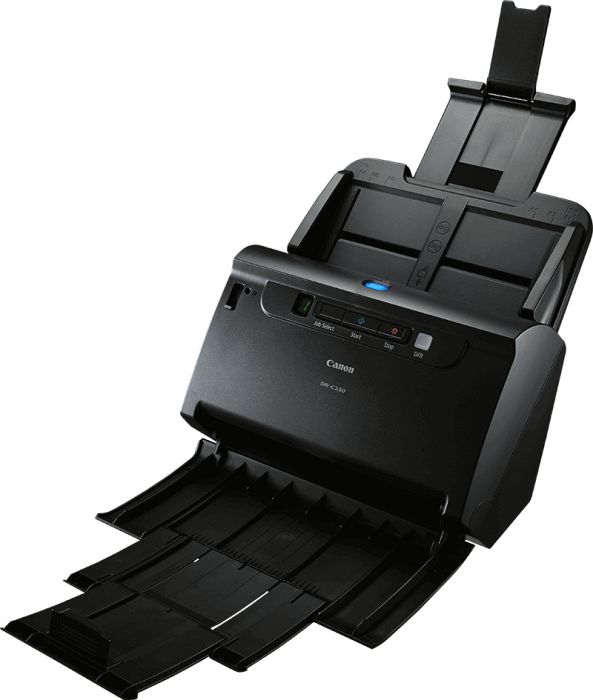

Canon imageFORMULA DR-C230 Sheet-fed scanner 600 x 600 DPI A4 Black
EAN:
4528472107882
Canon imageFORMULA DR-C230. Maximum scan size: 216 x 3000 mm, Optical scanning resolution: 600 x 600 DPI, Output colour depth: 24 bit. Scanner type: Sheet-fed scanner, Product colour: Black. Sensor type: CMOS CIS, Daily duty cycle (max): 3500...
Product Description
Product Description
Canon imageFORMULA DR-C230. Maximum scan size: 216 x 3000 mm, Optical scanning resolution: 600 x 600 DPI, Output colour depth: 24 bit. Scanner type: Sheet-fed scanner, Product colour: Black. Sensor type: CMOS CIS, Daily duty cycle (max): 3500 pages, Light source: RGB LED. Standard input capacity: 60 sheets. Maximum ISO A-series paper size: A4, Scanning media types supported: Business Card, Plastic Card, Media thickness (min): 0.06 mm
Technical Spec
Technical Spec
Product Description
Canon imageFORMULA DR-C230, 216 x 3000 mm, 600 x 600 DPI, 24 bit, 8 bit, 30 ppm, 30 ppm
Tech Specs
Scanning
Maximum scan size
216 x 3000 mm
Optical scanning resolution
600 x 600 DPI
Duplex scanning
Yes
Colour scanning
Yes
Output colour depth
24 bit
Output greyscale depth
8 bit
Greyscale levels
256
ADF scan speed (b/w, A4)
30 ppm
ADF scan speed (colour, A4)
30 ppm
Duplex ADF scan speed (b/w, A4)
60 ipm
Duplex ADF scan speed (colour, A4)
60 ipm
Design
Scanner type
Sheet-fed scanner
Built-in display
No
Product colour
Black
Performance
Sensor type
CMOS CIS
Daily duty cycle (max)
3500 pages
Light source
RGB LED
Scan drivers
ISIS, TWAIN
Input capacity
Standard input capacity
60 sheets
Paper handling
Maximum ISO A-series paper size
A4
Scanning media types supported
Business Card, Plastic Card
Multi feed detection
Yes
Media thickness (min)
0.06 mm
Maximum scan width
21.6 cm
Maximum scan length
3 m
Ports & interfaces
USB port
Yes
USB version
2.0
Standard interfaces
USB 2.0
Power
Power supply type
AC
Power consumption (typical)
19 W
Power consumption (standby)
1.4 W
Power consumption (off)
0.1 W
AC input frequency
50 - 60 Hz
Input voltage
100-240 V
Weight & dimensions
Width
291 mm
Depth
253 mm
Height
231 mm
Weight
2.8 kg
Packaging content
Cables included
AC, USB
AC adapter included
Yes
Sustainability
Sustainability certificates
ENERGY STAR
System requirements
Windows operating systems supported
Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64
Mac operating systems supported
Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra
Server operating systems supported
Windows Server 2008 R2, Windows Server 2012 R2, Windows Server 2016
Operational conditions
Operating temperature (T-T)
10 - 32.5 °C
Operating relative humidity (H-H)
20 - 80%
Other features
Scan media weight
27 - 209 g/m²
Compliance certificates
RoHS
Logistics data
Harmonized System (HS) code
84716070
