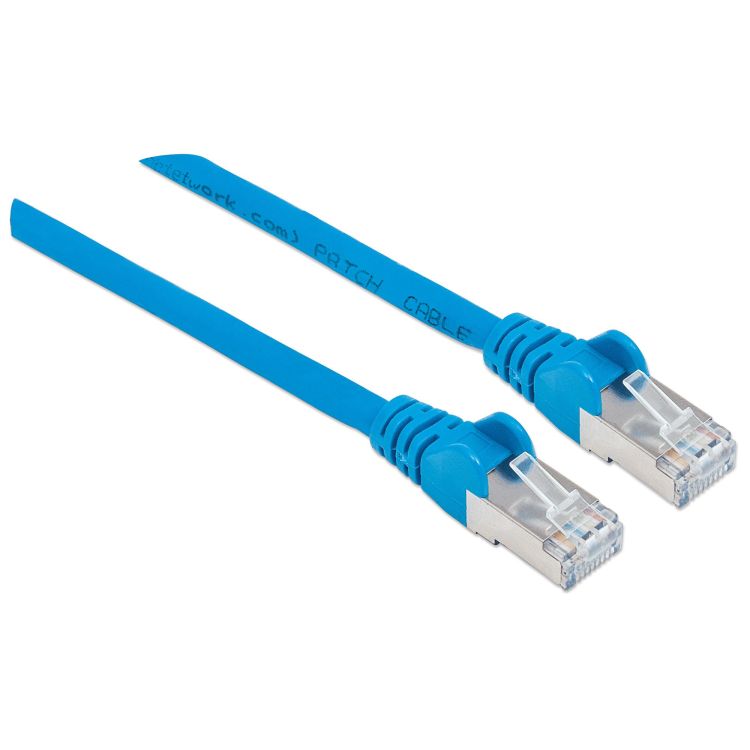

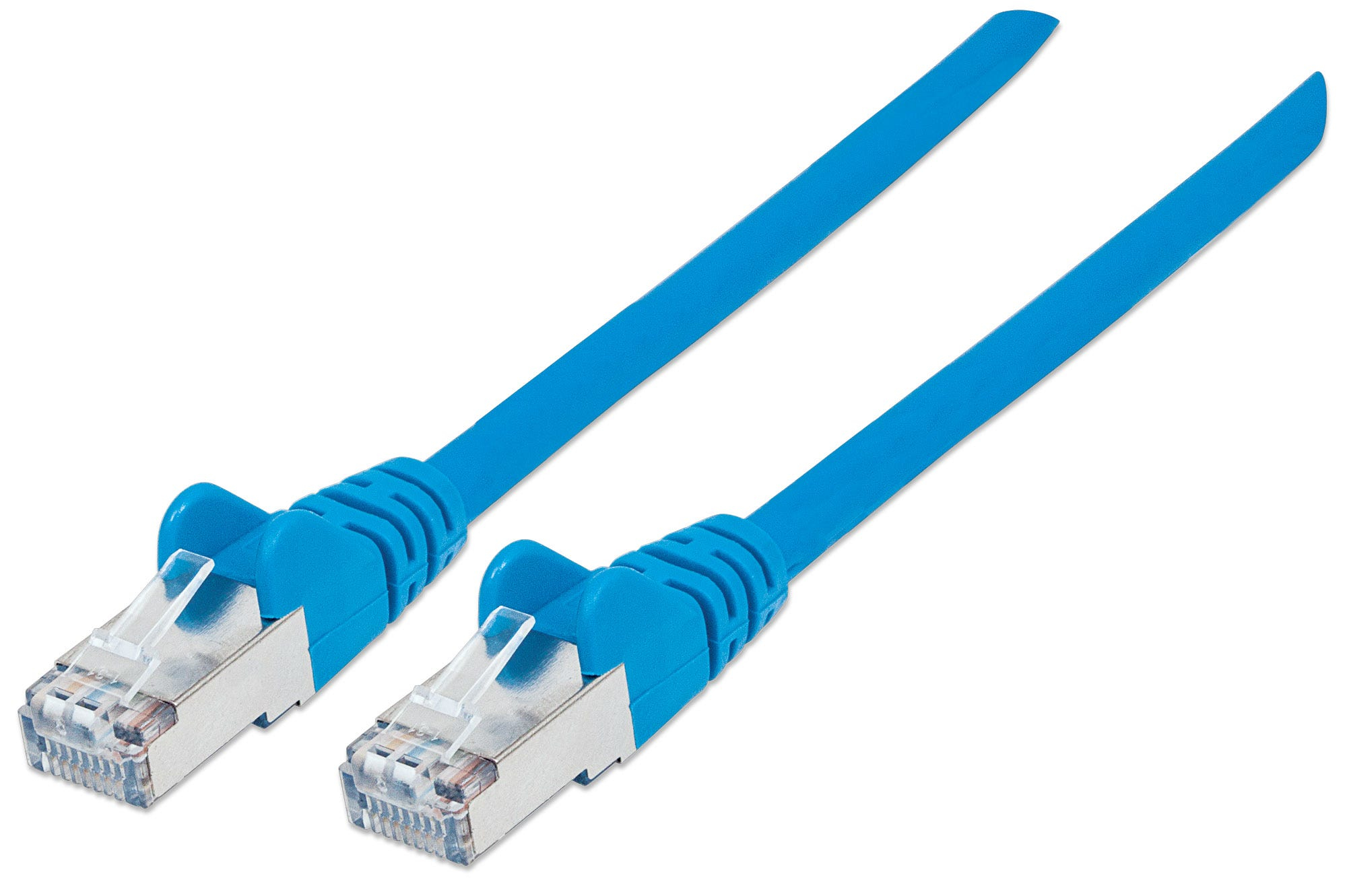

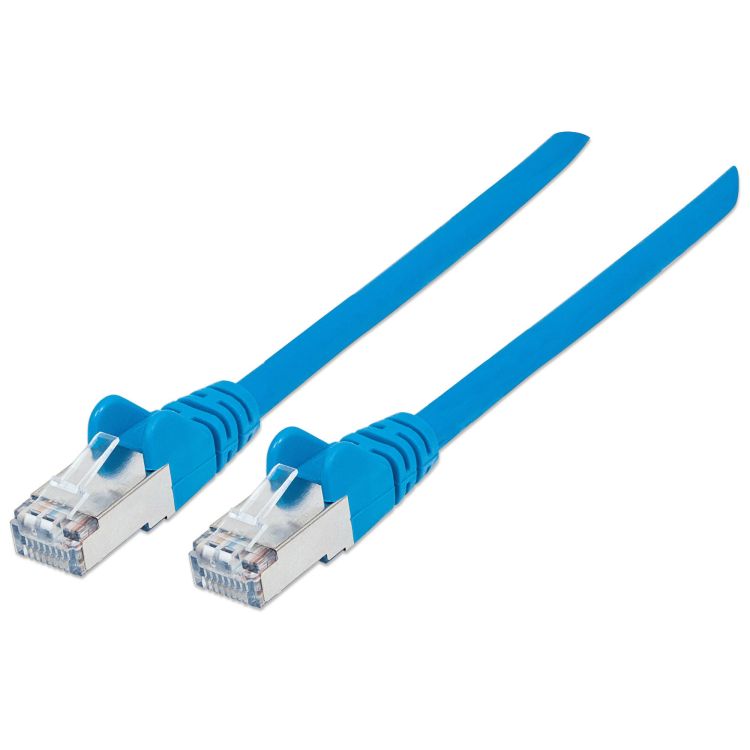

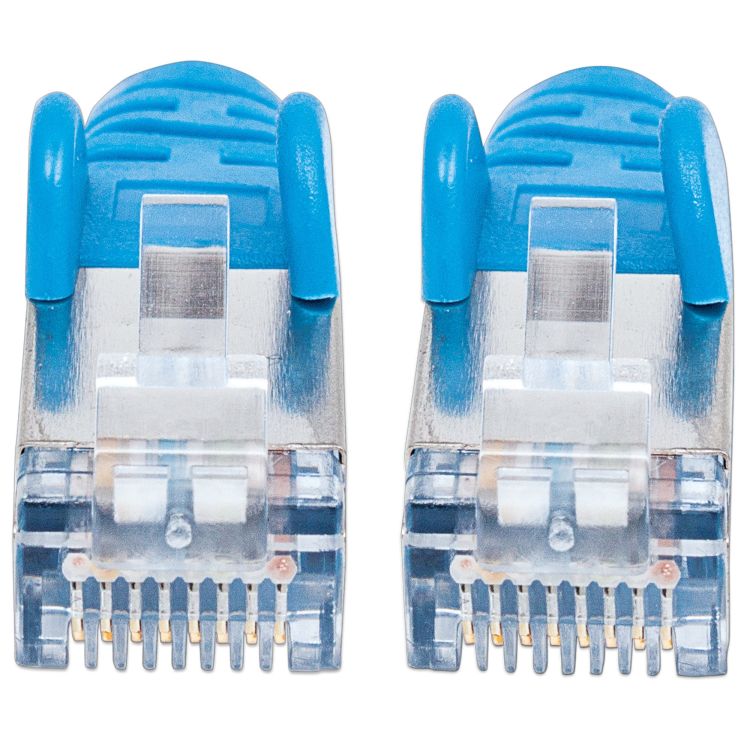

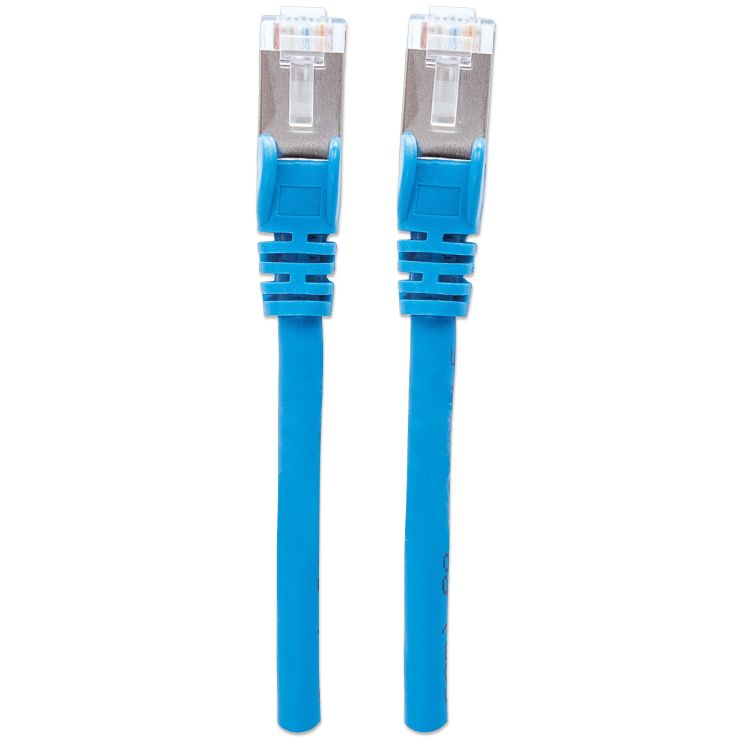

Intellinet 1m Cat6A S/FTP networking cable Blue 39.4" (1 m) S/FTP (S-STP)
EAN:
0766623350730
10 Gigabit data transmission over twisted pair cable — The next generation of network technology._x000D_ _x000D_ Intellinet Network Solutions Cat6a cables provide 10 Gigabit data transmission over twisted pair cable, allowing for connection...
Product Description
Product Description
10 Gigabit data transmission over twisted pair cable — The next generation of network technology._x000D_
_x000D_
Intellinet Network Solutions Cat6a cables provide 10 Gigabit data transmission over twisted pair cable, allowing for connection distances of up to 100 meters. Low Smoke Zero Halogen (LSZH/LS0H) is a cable jacket made of polypropylene, which reduces the amount of toxic and corrosive gasses emitted should combustion ever occur. Typically used in poorly ventilated areas, LSZH is becoming very popular where the protection of people and equipment from toxic and corrosive gasses is critical._x000D_
_x000D_
Expanded Capabilities_x000D_
• The Cat6a standard extends Cat6 electrical specifications from 250 MHz to 500 MHz _x000D_
• Ideal for server-to-server, server-to-storage and server-to-switch connections_x000D_
• Also used for distributed backbones, 10Gb-to-desktop, and active-zone cabling applications_x000D_
• Supports PoE and PoE+ applications like VoIP, WAP and security_x000D_
_x000D_
Lifetime Warranty_x000D_
Strict manufacturing standards ensure the highest quality in all Intellinet Network Solutions products. These cables carry a full Lifetime Warranty — the strongest commitment a business can make.
Technical Spec
Technical Spec
Product Description
Intellinet 1m Cat6A S/FTP, 39.4" (1 m), Cat6a, S/FTP (S-STP), RJ-45, RJ-45, Blue
Tech Specs
Augmented Category 6 (Cat6a)|10 Gigabit Ethernet qualified|500 MHz|Low Smoke Zero Halogen (LSZH / LS0H) cable with molded boot|Screened, fully shielded twisted pair cable|Connection distances of up to 100 meters|Compatible with T568A and T568B wiring|Supports IEEE 802.3af and is DTE power compliant|Fully backward compatible with all the previous cable categories, including Category 6, 5e and 5|Lifetime Warranty
Features
Cable length
39.4" (1 m)
Cable standard
Cat6a
Cable shielding
S/FTP (S-STP)
Connector 1
RJ-45
Connector 2
RJ-45
Product color
Blue
Connector 1 gender
Male
Connector 2 gender
Male
Connector contacts plating
Gold
Connector shielding
Yes
Connector shield material
Aluminum
Jacket material
Low smoke zero halogen (LSZH), Polypropylene
Conductor type
Stranded
Conductor material
Copper
Networking standards
IEEE 802.3af
AWG wire size
28
Data transfer rate
10000 Mbit/s
Frequency
500 MHz
Snagless cable boot
Yes
Certification
GHMT
Weight & dimensions
Weight
2.15 oz (61 g)
Packaging data
Quantity per pack
1 pc(s)
Technical details
Doesn't contain
Halogen
Logistics data
Harmonized System (HS) code
84733080
