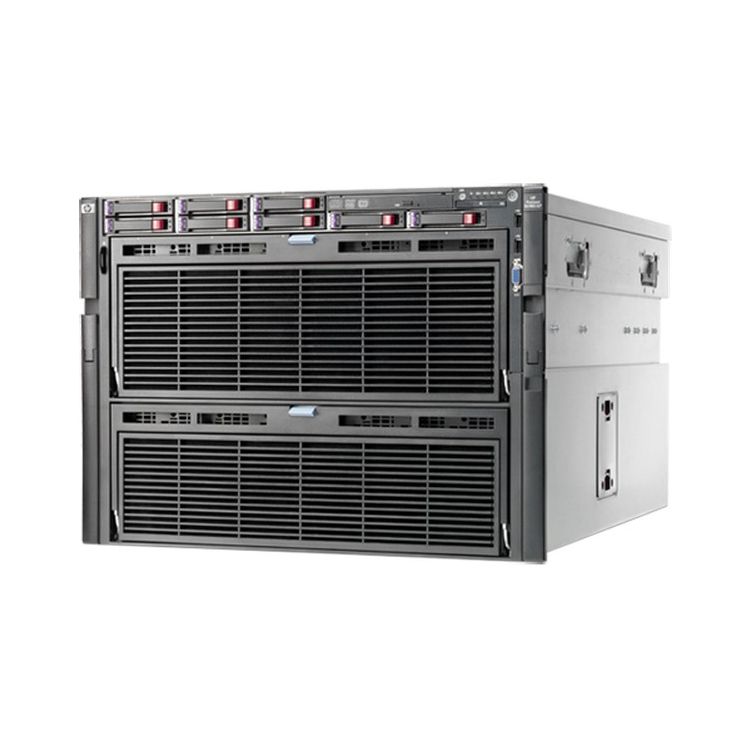

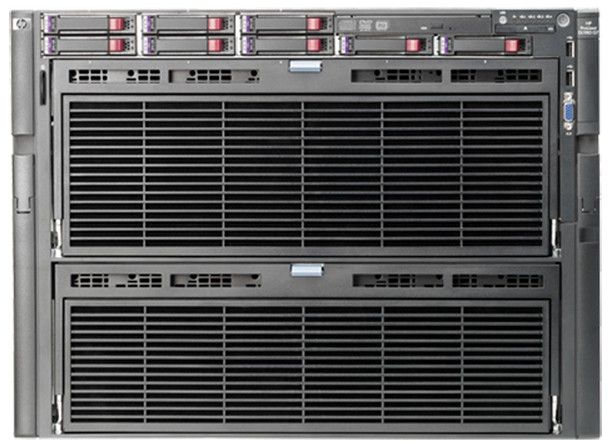

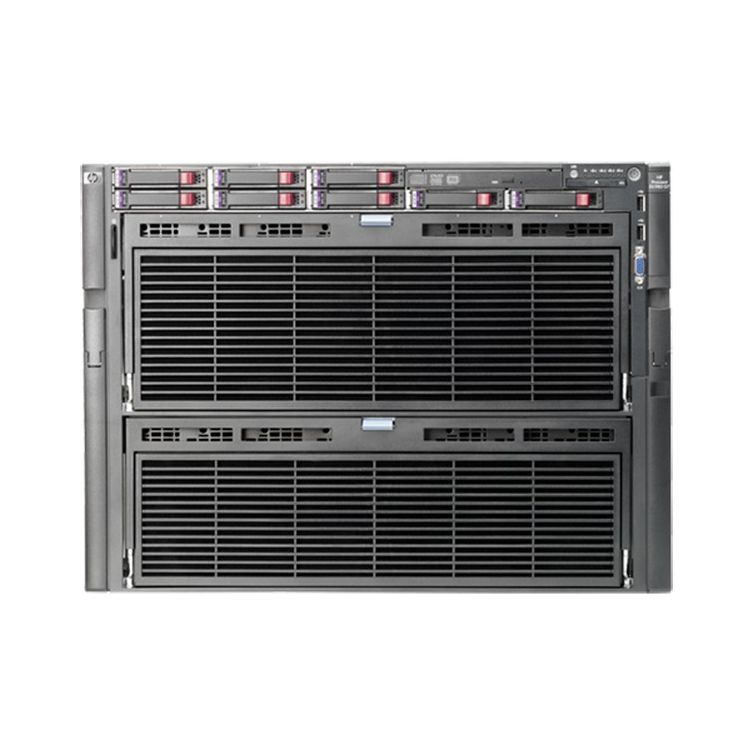

HPE ProLiant DL980 server Rack (8U) Intel® Xeon® E7 Family E7-4870 2.4 GHz 256 GB DDR3-SDRAM 1200 W
EAN:
4948382839855
HPE ProLiant DL980. Processor family: Intel® Xeon® E7 Family, Processor frequency: 2.4 GHz, Processor model: E7-4870. Internal memory: 256 GB, Internal memory type: DDR3-SDRAM, Memory layout (slots x size): 32 x 8 GB. HDD interface: Serial ATA,...
Product Description
Product Description
0
HPE ProLiant DL980. Processor family: Intel® Xeon® E7 Family, Processor frequency: 2.4 GHz, Processor model: E7-4870. Internal memory: 256 GB, Internal memory type: DDR3-SDRAM, Memory layout (slots x size): 32 x 8 GB. HDD interface: Serial ATA, Serial Attached SCSI (SAS). Ethernet LAN, Cabling technology: 10/100/1000Base-T(X). Optical drive type: DVD-RW. Power supply: 1200 W, Redundant power supply (RPS) support. Chassis type: Rack (8U)
HPE ProLiant DL980. Processor family: Intel® Xeon® E7 Family, Processor frequency: 2.4 GHz, Processor model: E7-4870. Internal memory: 256 GB, Internal memory type: DDR3-SDRAM, Memory layout (slots x size): 32 x 8 GB. HDD interface: Serial ATA, Serial Attached SCSI (SAS). Ethernet LAN, Cabling technology: 10/100/1000Base-T(X). Optical drive type: DVD-RW. Power supply: 1200 W, Redundant power supply (RPS) support. Chassis type: Rack (8U)
Technical Spec
Technical Spec
Product Description
HPE ProLiant DL980, 2.4 GHz, E7-4870, 256 GB, DDR3-SDRAM, 1200 W, Rack (8U)
Tech Specs
Processor family
Intel® Xeon® E7 Family
Processor manufacturer
Intel
Processor model
E7-4870
Processor frequency
2.4 GHz
Processor boost frequency
2.8 GHz
Processor cores
10
Processor cache
30 MB
Memory channels supported by processor
Quad
Number of processors installed
4
Thermal Design Power (TDP)
130 W
Processor cache type
Smart Cache
System bus rate
6.4 GT/s
Maximum number of SMP processors
8
Processor front side bus
1333 MHz
Processor socket
LGA 1567 (Socket LS)
Processor lithography
32 nm
Processor threads
20
Processor operating modes
64-bit
Stepping
A2
FSB Parity
No
Bus type
QPI
Processor codename
Westmere EX
Tcase
69 °C
Maximum internal memory supported by processor
2.05 TB
Memory types supported by processor
DDR3 800/978/1066/1333 (Max Speed 1066 MHz)
ECC supported by processor
Yes
Execute Disable Bit
Yes
Thermal Monitoring Technologies
Yes
Processor package size
49.17 x 56.47 mm
Supported instruction sets
SSE4.1/4.2
Processor code
SLC3T
Scalability
S4S
Embedded options available
No
CPU multiplier (bus/core ratio)
18
Processor series
Intel Xeon E7-4800
Conflict-Free processor
No
Internal memory
256 GB
Internal memory type
DDR3-SDRAM
Memory slots
128
Memory layout (slots x size)
32 x 8 GB
Maximum storage capacity
4 TB
Optical drive type
DVD-RW
HDD interface
Serial ATA, Serial Attached SCSI (SAS)
Number of HDDs supported
8
SSD interface
Serial Attached SCSI (SAS)
Number of SSDs supported
8
Supported storage drive interfaces
SAS
Wi-Fi
No
LAN controller
HP NC375i
Ethernet LAN
Yes
Cabling technology
10/100/1000Base-T(X)
Ethernet interface type
Gigabit Ethernet
Ethernet LAN (RJ-45) ports
4
Number of slots
16
Chassis type
Rack (8U)
Redundant fans support
Yes
CPU configuration (max)
4
Intel Rapid Storage Technology
No
Enhanced Intel SpeedStep Technology
Yes
Intel® Wireless Display (Intel® WiDi)
No
Intel Virtualization Technology for Directed I/O (VT-d)
Yes
Intel® Anti-Theft Technology (Intel® AT)
No
Intel® Hyper Threading Technology (Intel® HT Technology)
Yes
Intel® My WiFi Technology (Intel® MWT)
No
Intel® Turbo Boost Technology
1.0
Intel® Quick Sync Video Technology
No
Intel® InTru™ 3D Technology
No
Intel® Clear Video HD Technology (Intel® CVT HD)
No
Intel® Insider™
No
Intel Flex Memory Access
No
Intel® AES New Instructions (Intel® AES-NI)
Yes
Intel Trusted Execution Technology
Yes
Intel Enhanced Halt State
No
Intel VT-x with Extended Page Tables (EPT)
Yes
Intel Demand Based Switching
No
Intel Clear Video Technology
No
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)
No
Intel 64
Yes
Intel Virtualization Technology (VT-x)
Yes
Intel Dual Display Capable Technology
No
Intel FDI Technology
No
Intel Fast Memory Access
No
Processor ARK ID
53579
Redundant power supply (RPS) support
Yes
Power supply
1200 W
Number of redundant power supplies installed
8
Width
350.2 mm
Depth
439.9 mm
Height
695.9 mm
Weight
93 kg
Dimensions (WxDxH)
350.2 x 439.9 x 695.9 mm
Intel® Virtualization Technology (Intel® VT)
VT-d, VT-x
Plug and Play
Yes
Expansion slots
16x PCIe/PCIx
