Allied Telesis AT-x230-28GT-50 Managed L3 Gigabit Ethernet (10/100/1000) Grey 1U
EAN:
0767035208435
The Allied Telesis x230 Series of Layer 3 Gigabit switches offers an impressive set of features in a compact design, ready for flexible deployment at the network edge. Gigabit to the desktop ensures maximum network performance for demanding...
Product Description
Product Description
The Allied Telesis x230 Series of Layer 3 Gigabit switches offers an impressive set of features in a compact design, ready for flexible deployment at the network edge. Gigabit to the desktop ensures maximum network performance for demanding applications.
The Power over Ethernet (PoE+) models are ideal for connecting and remotely powering access and security devices. PoE+ provides up to 30 Watts to support high power connected edge devices such as multi-band wireless access points and pan-tilt-zoom (PTZ) digital security cameras, supporting the growth of wireless networking and digital video surveillance.
The fully featured AlliedWare Plus™ operating system brings a host of powerful features, such as Ethernet Protection Switched Ring (EPSRing™) for high-speed ring connectivity, Allied Telesis Management Framework™ (AMF) for automated management, and eco-friendly Energy Efficient Ethernet (EEE) to reduce running costs.
The x230 Series is perfect for network access connectivity.

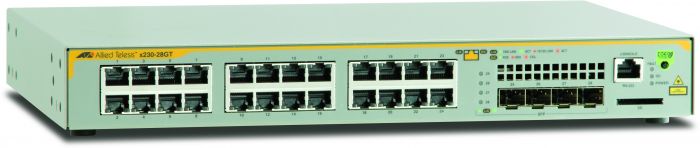

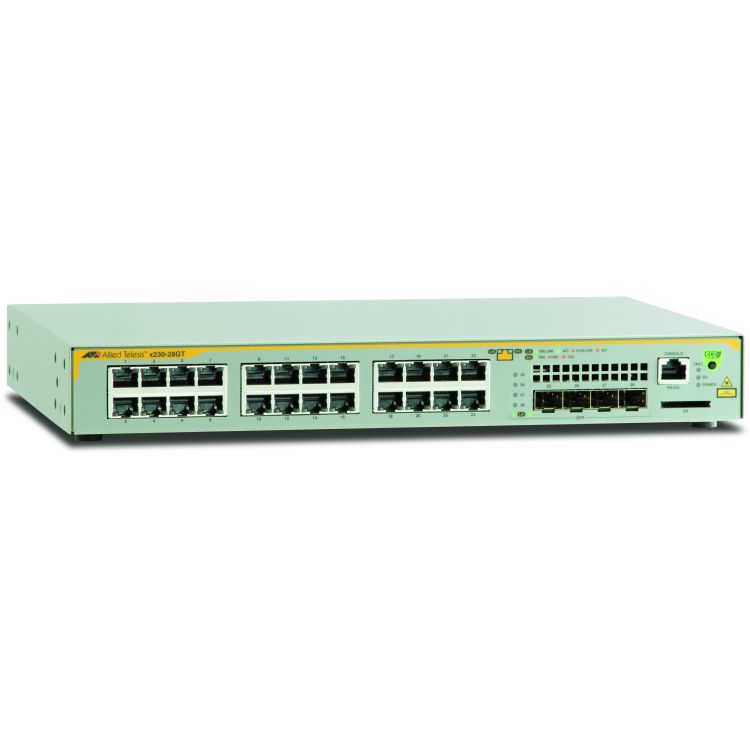

The Allied Telesis x230-28GT features 24 x 10/100/1000T ports with 4 SFP Gigabit uplink ports. A full feature-set makes it ideal for applications at the network edge, supporting Gigabit to the desktop for maximum network performance.
Technical Spec
Technical Spec
Product Description
Allied Telesis AT-x230-28GT-50, Managed, L3, Gigabit Ethernet (10/100/1000), Full duplex, Rack mounting, 1U
Tech Specs
Management features
Switch type
Managed
Switch layer
L3
Quality of Service (QoS) support
Y
Web-based management
Y
Traffic classification
Y
ARP inspection
Y
System event log
Y
MIB support
SNMP
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity
24
Basic switching RJ-45 Ethernet ports type
Gigabit Ethernet (10/100/1000)
SFP module slots quantity
4
Fiber optic connector
SFP
Console port
RJ-45
Compatible memory cards
SD,SDHC
Networking
Networking standards
IEEE 802.1Q,IEEE 802.1v,IEEE 802.2,IEEE 802.3,IEEE 802.3ab,IEEE 802.3ad,IEEE 802.3af,IEEE 802.3at,IEEE 802.3az,IEEE 802.3u,IEEE 802.3x,IEEE 802.3z
10G support
Y
Copper ethernet cabling technology
10BASE-T,10GBASE-T,100BASE-FX,100BASE-T,1000BASE-LX,1000BASE-SX
Port mirroring
Y
Full duplex
Y
IP routing
Y
Flow control support
Y
Link aggregation
Y
Broadcast storm control
Y
Rate limiting
Y
Spanning tree protocol
Y
Active link detection
Y
VLAN support
Y
Virtual LAN features
Private VLAN
Optical fiber
Fiber ethernet cabling technology
1000BASE-X,1000BASE‑LX,1000BASE‑SX,1000BASE‑ZX
Transmission distance (max)
80 km
Data transmission
MAC address table
16000 entries
Switching capacity
56 Gbit/s
Throughput
41.7 Mpps
Number of queues
8
Jumbo frames support
Y
Jumbo frames
10000
Packet buffer memory
1.5 MB
Security
DHCP features
DHCP client
Access Control List (ACL)
Y
IGMP snooping
Y
Security algorithms
802.1x RADIUS,EAP,HTTPS,MD5,PEAP,SNMP,SSH,SSH-2,SSL/TLS
MAC address filtering
Y
SSH/SSL support
Y
Loop protection
Y
BPDU filtering/protection
Y
Authentication
MAC-based authentication,Port-based authentication
Multicast features
Multicast support
Y
Protocols
Management protocols
SNMP
Supported network protocols
IPv6, IPv4, DHCP, NTPv6, STP, BDPU, IP, ICMP, ARP, LLDP, SNMP, MSTP, RSTP, RIP, TLS,TTLS,PEAP, MD5, Telnet, GVRP
Design
Rack mounting
Y
Stackable
Y
Product colour
Grey
Form factor
1U
LED indicators
Y
Country of origin
China
Safety
UL60950-1, CAN/CSA-C22.2 # 60950-1-03, EN60950-1, EN60825-1, AS/NZS 60950.1
Electromagnetic compatibility
EN55022 A, FCC A, VCCI A
Certification
UL, cUL, UL-EU, RoHS
Performance
Physical stacking (units)
32
Memory type
DDR-SDRAM
Internal memory
256 MB
Flash memory
64 MB
Noise level
34 dB
Power
AC input voltage
100 - 240 V
AC input frequency
50 - 60 Hz
Input current
2.4 A
Power consumption (max)
26 W
Power over Ethernet (PoE)
Power over Ethernet (PoE)
N
Operational conditions
Operating temperature (T-T)
0 - 50 °C
Storage temperature (T-T)
-25 - 70 °C
Operating relative humidity (H-H)
5 - 90%
Storage relative humidity (H-H)
5 - 95%
Operating altitude
0 - 3048 m
Heat dissipation
89 BTU/h
Weight & dimensions
Width
341 mm
Depth
231 mm
Height
44 mm
Weight
2.4 kg
