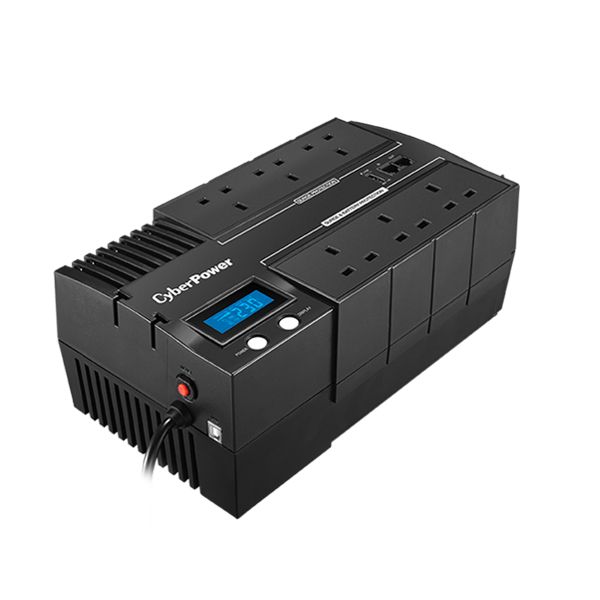

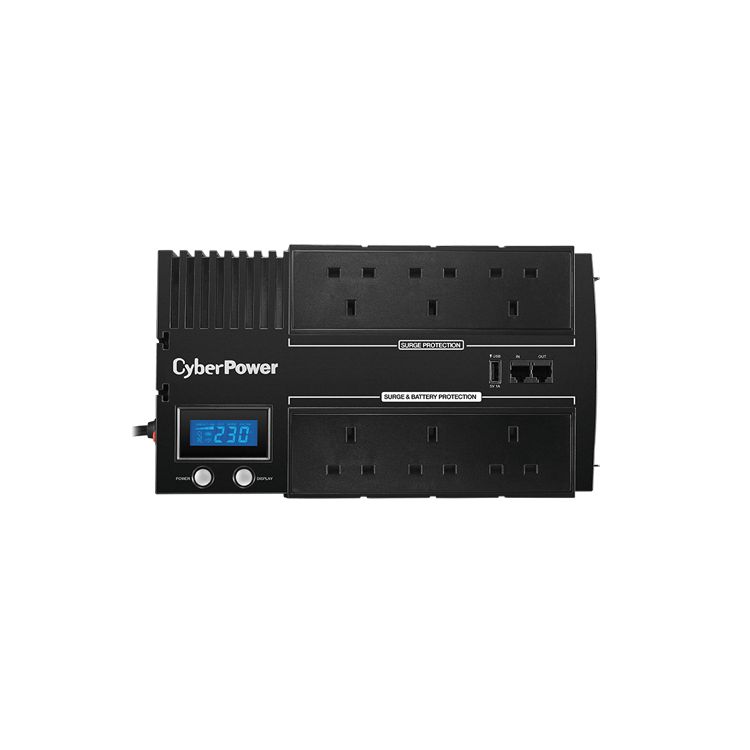

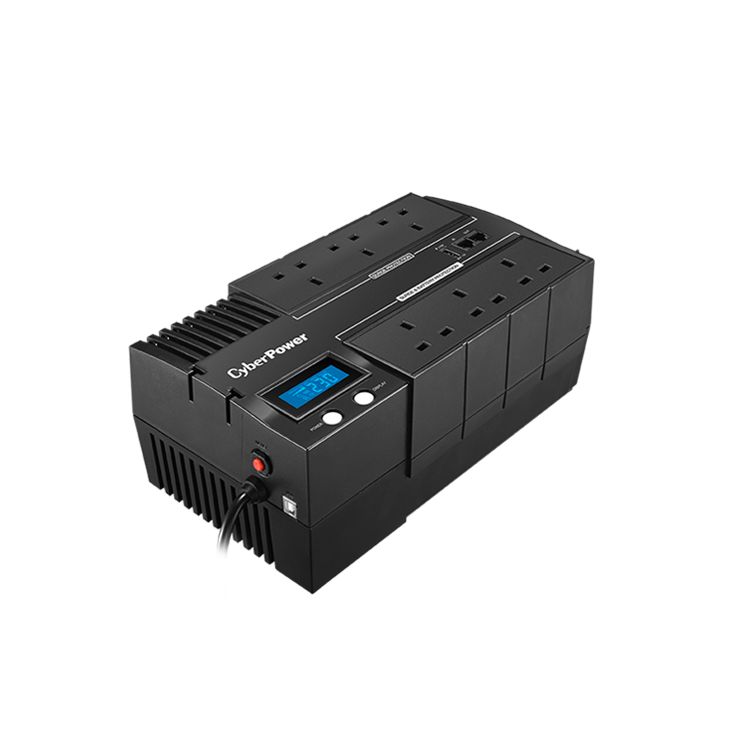

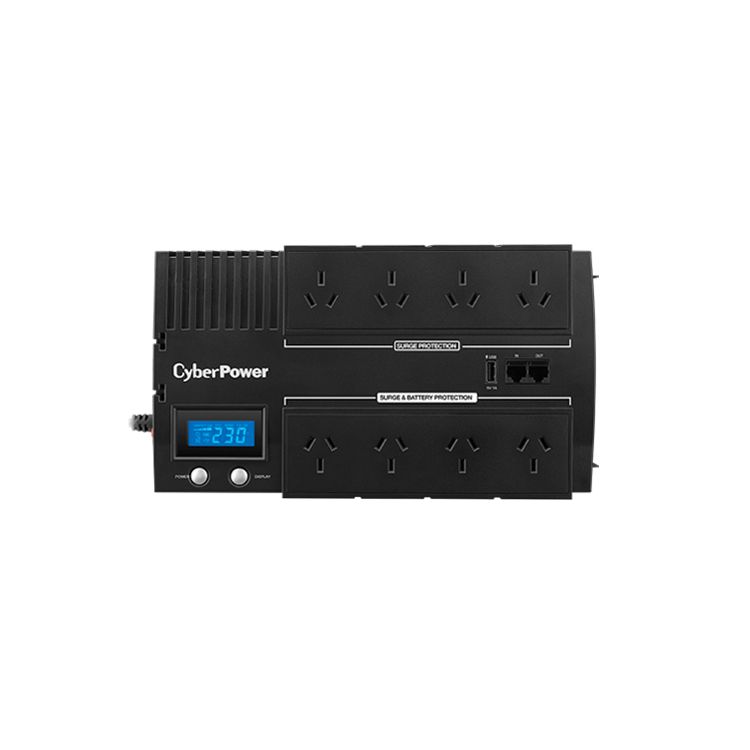

CyberPower BR700ELCD uninterruptible power supply (UPS) Line-Interactive 0.7 kVA 420 W 6 AC outlet(s)
CyberPower BR700ELCD. UPS topology: Line-Interactive, Output power capacity: 0.7 kVA, Output power: 420 W. AC outlets quantity: 6 AC outlet(s). Battery technology: Sealed Lead Acid (VRLA), Typical backup time at full load: 2 min, Typical backup...
Product Description
Product Description
CyberPower BR700ELCD. UPS topology: Line-Interactive, Output power capacity: 0.7 kVA, Output power: 420 W. AC outlets quantity: 6 AC outlet(s). Battery technology: Sealed Lead Acid (VRLA), Typical backup time at full load: 2 min, Typical backup time at half load: 6 min. Form factor: Compact, Product colour: Black, Housing material: Plastic. Width: 166 mm, Depth: 288 mm, Height: 118 mm
Technical Spec
Technical Spec
Product Description
CyberPower BR700ELCD, Line-Interactive, 0.7 kVA, 420 W, Sine, 165 V, 290 V
Tech Specs
UPS topology
Line-Interactive
Output power capacity
0.7 kVA
Output power
420 W
Waveform
Sine
Input operation voltage (min)
165 V
Input operation voltage (max)
290 V
Input frequency
50/60 Hz
Output frequency
50/60 Hz
Automatic Voltage Regulation (AVR)
Yes
Surge energy rating
125 J
Response time
4 ms
EMI/RFI noise filtering
Yes
Surge protection
Yes
Surge protection features
Digital Subscriber Line (DSL), Fax, Modem, Network, Telephone
Power protection features
Overload
Audible alarm(s)
Yes
Audible alarm modes
Alarm when on battery, Fault, Low battery alarm, Overload alarm
AC outlets quantity
6 AC outlet(s)
USB port
Yes
USB 2.0 ports quantity
1
Serial interface
No
Modem (RJ-11) ports
2
Ethernet LAN (RJ-45) ports
2
Battery technology
Sealed Lead Acid (VRLA)
Typical backup time at full load
2 min
Typical backup time at half load
6 min
Battery recharge time
8 h
Cold start
Yes
Form factor
Compact
Product colour
Black
Housing material
Plastic
Display type
LCD
LED indicators
Yes
Certification
CE
RoHS
Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-20 - 50 °C
Operating relative humidity (H-H)
0 - 90%
Storage relative humidity (H-H)
0 - 90%
Operating altitude
0 - 3000 m
Width
166 mm
Depth
288 mm
Height
118 mm
Weight
5.3 kg
Bundled software
PowerPanel® Personal Edition
Nominal output voltage
230 V
