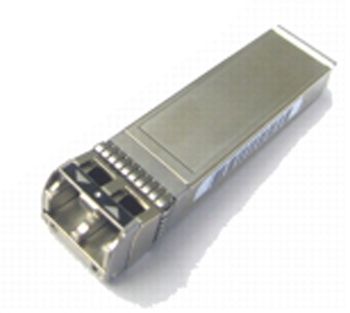

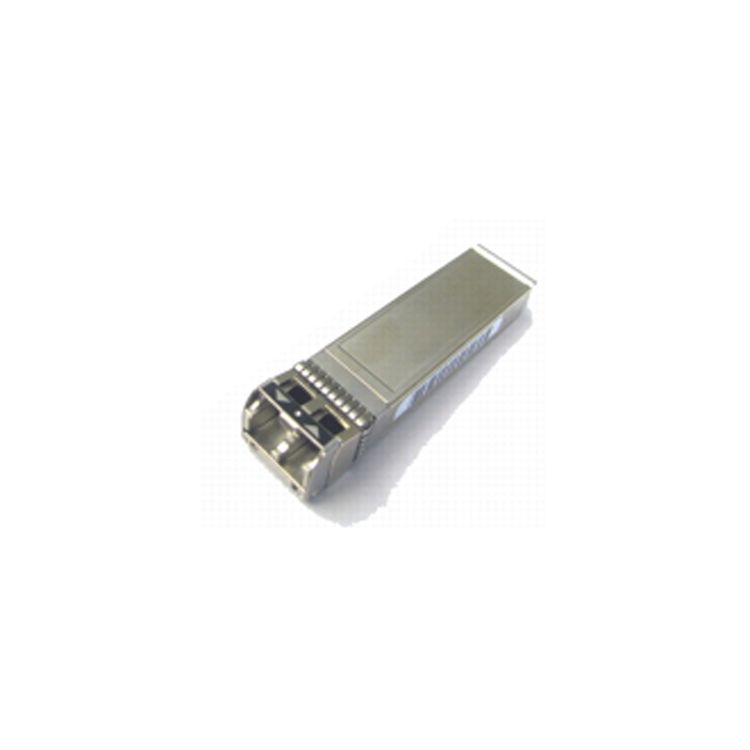

Cisco DS-SFP-FC8G-SW= network transceiver module Fiber optic 8000 Mbit/s SFP+ 850 nm
EAN:
0882658191398
Cisco DS-SFP-FC8G-SW=. SFP transceiver type: Fiber optic, Maximum data transfer rate: 8000 Mbit/s, Interface type: SFP+. Product colour: Stainless steel, Compatible products: Cisco MDS 9000. Width: 8.5 mm, Depth: 55.2 mm, Height: 13.8 mm. Number...
Product Description
Product Description
0
Cisco DS-SFP-FC8G-SW=. SFP transceiver type: Fiber optic, Maximum data transfer rate: 8000 Mbit/s, Interface type: SFP+. Product colour: Stainless steel, Compatible products: Cisco MDS 9000. Width: 8.5 mm, Depth: 55.2 mm, Height: 13.8 mm. Number of products included: 1 pc(s). Transmit power range: -1.3, Dimensions (WxDxH): 13.55 x 56.5 x 8.5 mm
Cisco DS-SFP-FC8G-SW=. SFP transceiver type: Fiber optic, Maximum data transfer rate: 8000 Mbit/s, Interface type: SFP+. Product colour: Stainless steel, Compatible products: Cisco MDS 9000. Width: 8.5 mm, Depth: 55.2 mm, Height: 13.8 mm. Number of products included: 1 pc(s). Transmit power range: -1.3, Dimensions (WxDxH): 13.55 x 56.5 x 8.5 mm
Technical Spec
Technical Spec
Product Description
Cisco DS-SFP-FC8G-SW=, Fiber optic, 8000 Mbit/s, SFP+, LC, 50/125,62.5/125 µm, SW
Tech Specs
SFP transceiver type
Fiber optic
Maximum data transfer rate
8000 Mbit/s
Interface type
SFP+
Multi-mode fiber (MMF) supported
Yes
Fiber optic connector
LC
Fiber cable diameters supported (core/cladding)
50/125,62.5/125 µm
SFP transceiver standard
SW
Wavelength
850 nm
Tx power (min)
-8.2 dBmW
Tx power (max)
-1.3 dBmW
Ethernet LAN
No
Fiber ports quantity
1
Product colour
Stainless steel
Hot-swap
Yes
Compatible products
Cisco MDS 9000
Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-40 - 85 °C
Operating relative humidity (H-H)
10 - 80%
Storage relative humidity (H-H)
10 - 85%
Width
8.5 mm
Depth
55.2 mm
Height
13.8 mm
Number of products included
1 pc(s)
Harmonized System (HS) code
85369010
Transmit power range
-1.3
Dimensions (WxDxH)
13.55 x 56.5 x 8.5 mm
