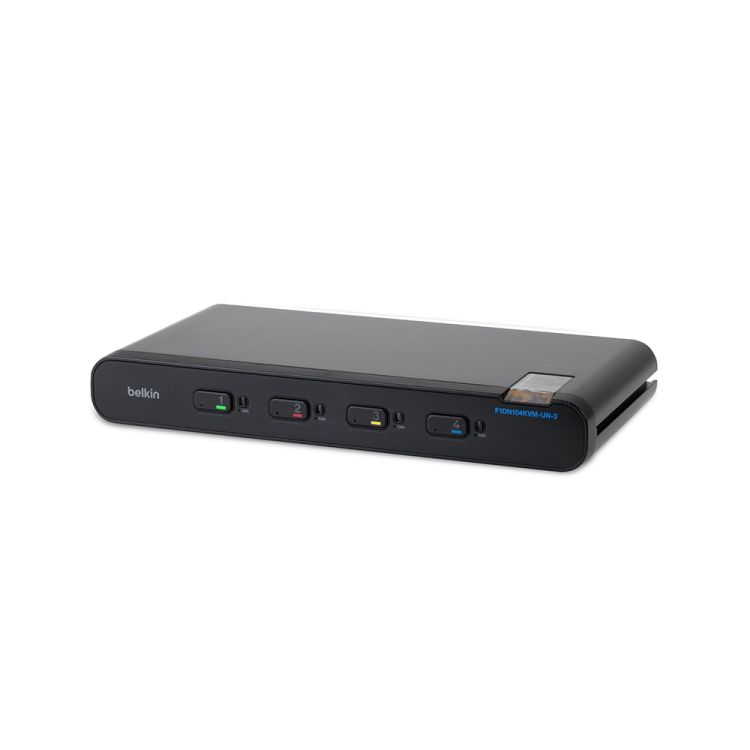

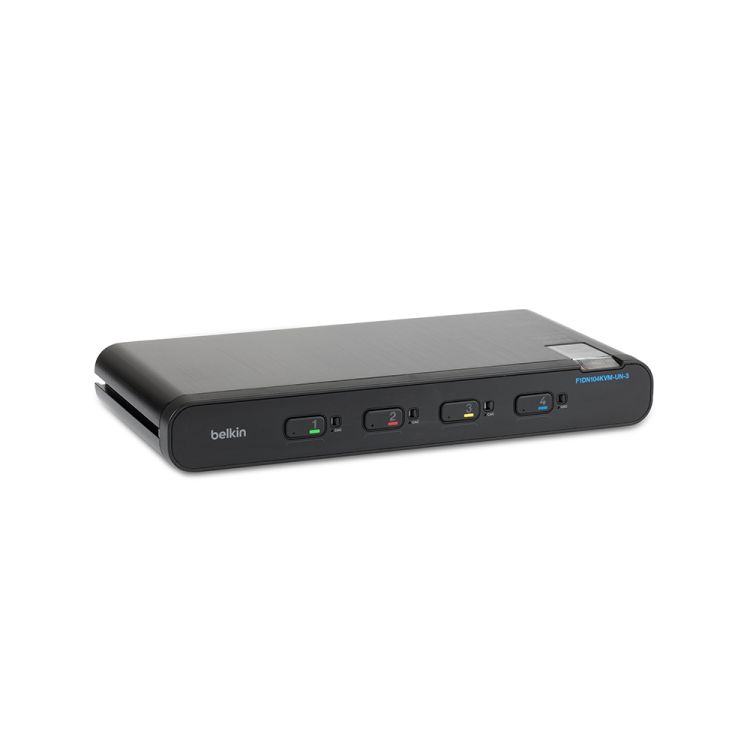

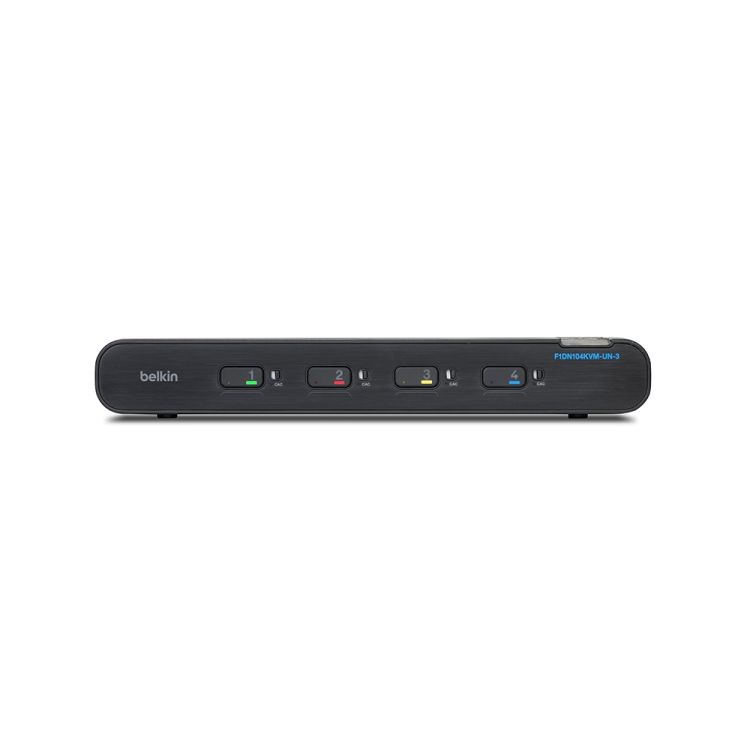

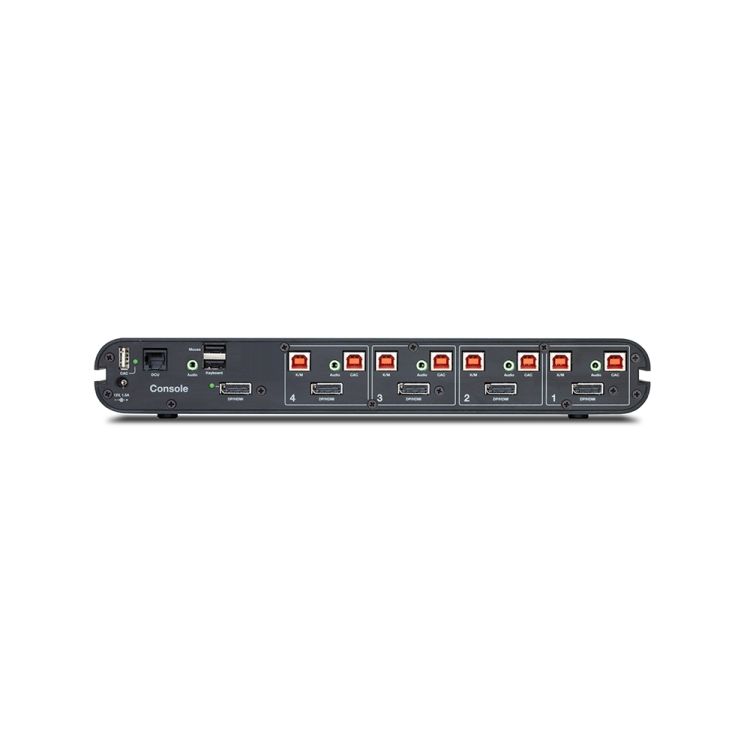

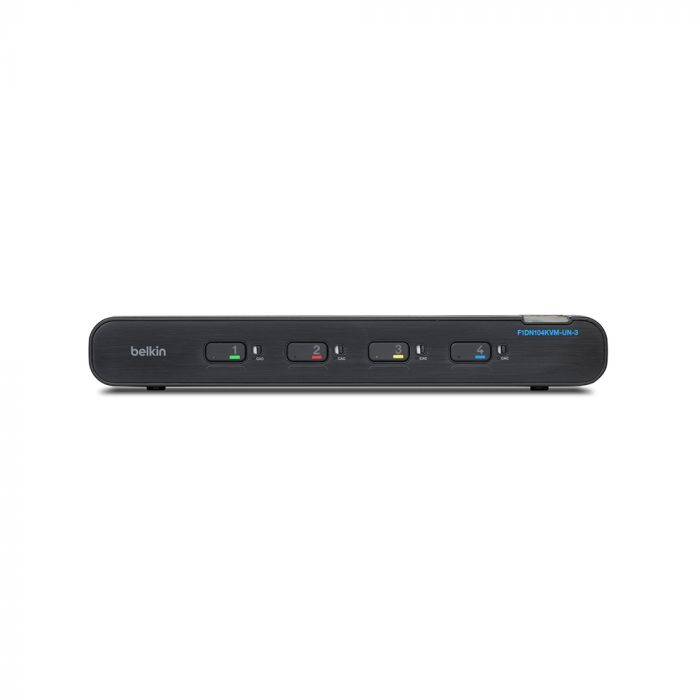

Belkin F1DN104KVM-UN-3 KVM switch Rack mounting Black
EAN:
0745883761036
Belkin F1DN104KVM-UN-3. Keyboard port type: USB, Mouse port type: USB, Video port type: HDMI/DisplayPort. HD type: 4K Ultra HD, Maximum resolution: 3840 x 2160 pixels, Video bandwidth: 60 Hz. Product colour: Black, Housing material: Aluminium,...
Product Description
Product Description
Belkin F1DN104KVM-UN-3. Keyboard port type: USB, Mouse port type: USB, Video port type: HDMI/DisplayPort. HD type: 4K Ultra HD, Maximum resolution: 3840 x 2160 pixels, Video bandwidth: 60 Hz. Product colour: Black, Housing material: Aluminium, Certification: FCC Class B, UL, CE, RoHS, ICES, RCM. Power source: AC, Input voltage: 100 - 240 V, Input current: 1.5 A. Width: 317.5 mm, Depth: 162.6 mm, Height: 63.5 mm
Technical Spec
Technical Spec
Product Description
Belkin F1DN104KVM-UN-3, 3840 x 2160 pixels, 4K Ultra HD, Rack mounting, Black
Tech Specs
Ports & interfaces
Number of computers controlled
4
Keyboard port type
USB
Mouse port type
USB
Video port type
HDMI/DisplayPort
Console ports
USB A
HDMI ports quantity
1
HDMI version
2.0
DisplayPorts quantity
1
DisplayPort version
1.2a
Console USB ports quantity
1
USB 2.0 Type-A hub ports quantity
2
Audio connections
Yes
Performance
HD type
4K Ultra HD
Maximum resolution
3840 x 2160 pixels
Video bandwidth
60 Hz
Hot-Plug support
Yes
Design
Rack mounting
Yes
Product colour
Black
Housing material
Aluminium
Certification
FCC Class B, UL, CE, RoHS, ICES, RCM
Power
Power source
AC
Input voltage
100 - 240 V
Input current
1.5 A
External power adapter
Yes
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-20 - 60 °C
Storage relative humidity (H-H)
0 - 80%
Weight & dimensions
Width
317.5 mm
Depth
162.6 mm
Height
63.5 mm
Weight
1.77 kg
Packaging content
Cables included
AC
Manual
Yes
AC adapter included
Yes
Other features
Safety
PP 3.0 NIAP Listed
Logistics data
Harmonized System (HS) code
85176200
