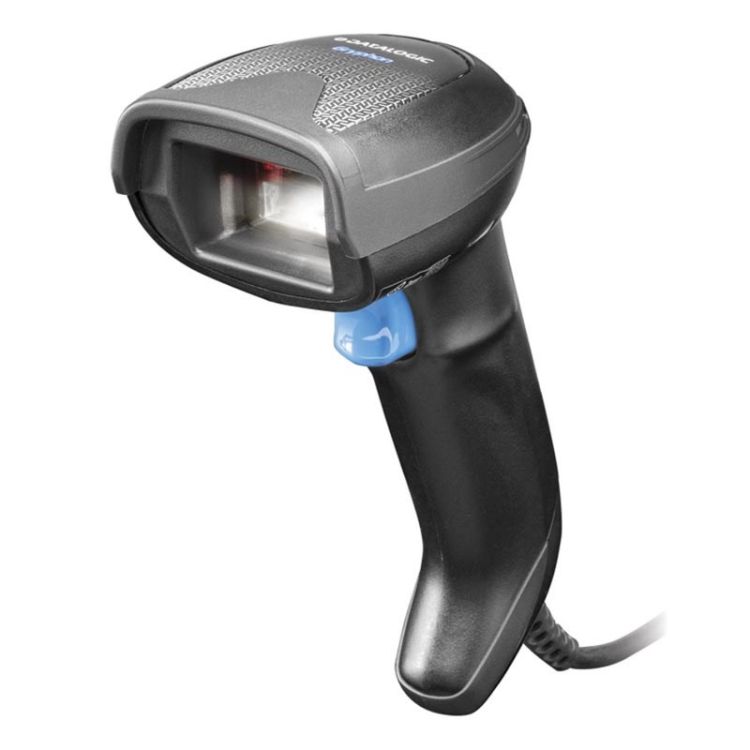

Datalogic Gryphon I GD4520 Handheld bar code reader 1D/2D Black
EAN:
5706998335319
Datalogic Gryphon I GD4520. Type: Handheld bar code reader, Scanner type: 1D/2D, 2D (matrix & stacked) barcodes supported: Aztec Code, Data Matrix, Han Xin, MaxiCode, Micro QR Code, QR Code. Connectivity technology: Wired, Standard interfaces:...
Product Description
Product Description
Datalogic Gryphon I GD4520. Type: Handheld bar code reader, Scanner type: 1D/2D, 2D (matrix & stacked) barcodes supported: Aztec Code, Data Matrix, Han Xin, MaxiCode, Micro QR Code, QR Code. Connectivity technology: Wired, Standard interfaces: USB. Product colour: Black, International Protection (IP) code: IP52, Protection features: Shock resistant. Power source type: DC, Input voltage: 5 V, Power consumption: 300 mA. Weight: 161 g, Width: 68 mm, Depth: 109 mm
Technical Spec
Technical Spec
Product Description
Datalogic Gryphon I GD4520, Handheld bar code reader, 1D/2D, Aztec Code, Data Matrix, Han Xin, MaxiCode, Micro QR Code, QR Code, 1280 x 800 pixels, 0 - 100000 lx, 650 nm
Tech Specs
Scanning
Type
Handheld bar code reader
Scanner type
1D/2D
2D (matrix & stacked) barcodes supported
Aztec Code, Data Matrix, Han Xin, MaxiCode, Micro QR Code, QR Code
Optical sensor resolution (W x H)
1280 x 800 pixels
Light levels (direct sunlight)
0 - 100000 lx
Wavelength
650 nm
Tilt reading angle
0 - 360°
Pitch reading angle
-65 - 65°
Motion tolerance (cm/s)
88.9
Ports & interfaces
Connectivity technology
Wired
Standard interfaces
USB
Performance
Product colour
Black
International Protection (IP) code
IP52
Protection features
Shock resistant
Image formats supported
TIFF, BMP, JPEG
Certification
IEC 60825 Class 2
Power
Power source type
DC
Input voltage
5 V
Power consumption
300 mA
Weight & dimensions
Weight
161 g
Width
68 mm
Depth
109 mm
Height
166 mm
Packaging data
Cables included
USB
Charging base
Yes
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-40 - 70 °C
Operating relative humidity (H-H)
0 - 95%
Technical details
Compliance certificates
RoHS
Logistics data
Harmonized System (HS) code
84716070
