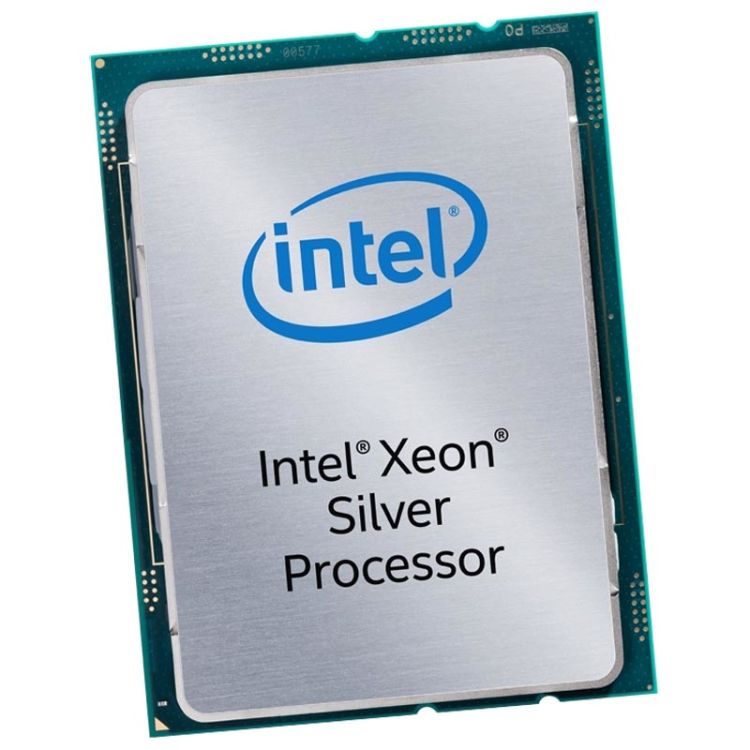

Lenovo Intel Xeon Silver 4114 processor 2.2 GHz 13.75 MB L3
EAN:
0889488459032
For the SR590 server models that come standard with one processor, the second processor can be ordered, if required. The second processor must be of the same model as the first processor. The second processor option includes a processor, a...
Product Description
Product Description
For the SR590 server models that come standard with one processor, the second processor can be ordered, if required. The second processor must be of the same model as the first processor. The second processor option includes a processor, a heatsink, and an additional system fan.
Technical Spec
Technical Spec
Product Description
Lenovo Intel Xeon Silver 4114, Intel Xeon Silver, 2.2 GHz, LGA 3647, Server/Workstation, 14 nm, 64-bit
Tech Specs
Intel® Turbo Boost Technology|http
//images.icecat.biz/img/feature_logo/61-5887.png|Higher Performance When You Need It Most
Intel® Turbo Boost Technology 2.01 accelerates processor and graphics performance by increasing the operating frequency when operating below specification limits. The maximum frequency varies depending on workload, hardware, software, and overall system configuration.
Intel® vPro™ Technology|http
Intel® Turbo Boost Technology 2.01 accelerates processor and graphics performance by increasing the operating frequency when operating below specification limits. The maximum frequency varies depending on workload, hardware, software, and overall system configuration.
Intel® vPro™ Technology|http
Processor
Processor family
Intel Xeon Silver
Processor frequency
2.2 GHz
Processor cores
10
Processor socket
LGA 3647
Component for
Server/Workstation
Processor lithography
14 nm
Cooler included
Y
Processor model
4114
Processor threads
20
Processor operating modes
64-bit
Processor cache
13.75 MB
Processor cache type
L3
Stepping
U0
Processor boost frequency
3 GHz
Processor codename
Skylake
Memory
Memory channels
Hexa
Maximum internal memory supported by processor
768 GB
Memory types supported by processor
DDR4-SDRAM
Memory clock speeds supported by processor
2400 MHz
ECC
Y
Graphics
On-board graphics adapter
N
Power
Thermal Design Power (TDP)
85 W
Features
Execute Disable Bit
Y
Maximum number of PCI Express lanes
48
PCI Express slots version
2.0
Scalability
2S
Embedded options available
N
Processor special features
Intel® Hyper Threading Technology (Intel® HT Technology)
Y
Intel® Turbo Boost Technology
2.0
Intel® vPro™ Technology
Y
Intel® AES New Instructions (Intel® AES-NI)
Y
Enhanced Intel SpeedStep Technology
Y
Intel Trusted Execution Technology
Y
Intel® Speed Shift Technology
Y
Intel TSX-NI
Y
Intel 64
Y
Intel Virtualization Technology (VT-x)
Y
Conflict Free processor
Y
Intel Turbo Boost Max Technology 3.0
N
Intel® Optane™ Memory Ready
N
Operational conditions
Tcase
78 °C
