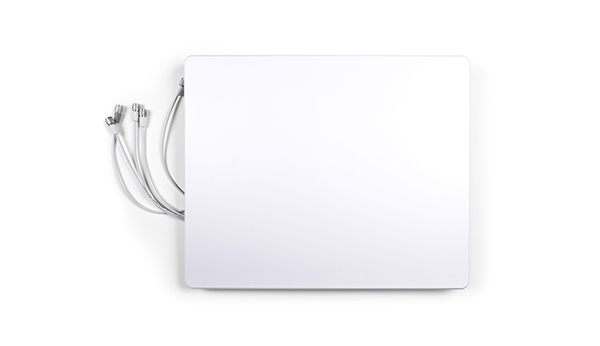

Cisco MA-ANT-3-F5 network antenna 11.2 dBi RP-TNC

SKU: ma-ant-3-f5

The Narrow Patch antenna is ideal for high ceiling (25 ft+) aesthetic consensus installations in high density applications and where APs are covering high density users in small zones. Some example use cases are in large lecture halls/stadiums as...

£887.37
Star-black
Product Description

Product Description


The Narrow Patch antenna is ideal for high ceiling (25 ft+) aesthetic consensus installations in high density applications and where APs are covering high density users in small zones. Some example use cases are in large lecture halls/stadiums as well as event venue centers. This antenna supports Meraki’s smart antenna capabilities. The price shown is for a 5-connector model; the Narrow Patch antenna can be purchased with 5 or 6 connectors.
Technical Spec

Technical Spec

Product Description

Cisco MA-ANT-3-F5, 11.2 dBi, 2.4/5 GHz, 11.2 dBi, 10.8 dBi, 30°, 30°

Tech Specs

Performance

Antenna gain level (max)
11.2 dBi
Frequency band
2.4/5 GHz
Antenna gain (2.4 GHz)
11.2 dBi
Antenna gain (5 GHz)
10.8 dBi
Horizontal beam width (2.4 GHz)
30°
Vertical beam width (2.4 GHz)
30°
Horizontal beam width (5 GHz)
30°
Vertical beam width (5 GHz)
30°

Features

Antenna connector type
RP-TNC
Product colour
White

Operational conditions

Operating temperature (T-T)
0 - 40 °C

Weight & dimensions

Width
660 mm
Depth
530 mm
Height
130 mm
