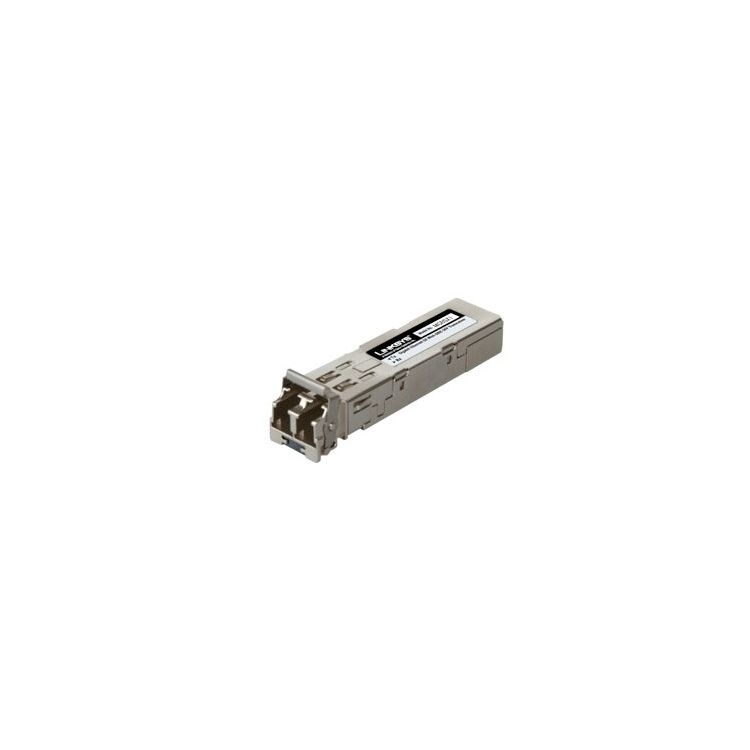

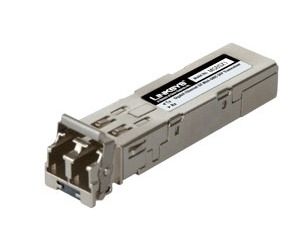

Cisco MGBLX1 SFP Transceiver | Gigabit Ethernet (GbE) 1000BASE-LX Mini-GBIC (MGBLX1)
EAN:
0882658262791
Cisco MGBLX1 SFP Transceiver | Gigabit Ethernet (GbE) 1000BASE-LX Mini-GBIC (MGBLX1). Maximum data transfer rate: 1000 Mbit/s, Cabling technology: 1000Base-LX. Maximum transfer distance: 10000 m, Wavelength: 1310 nm. Connectivity technology:...
Product Description
Product Description
0
Cisco MGBLX1 SFP Transceiver | Gigabit Ethernet (GbE) 1000BASE-LX Mini-GBIC (MGBLX1). Maximum data transfer rate: 1000 Mbit/s, Cabling technology: 1000Base-LX. Maximum transfer distance: 10000 m, Wavelength: 1310 nm. Connectivity technology: Wired. Power consumption (typical): 1 W. Width: 55.7 mm, Depth: 13.4 mm, Height: 8.5 mm
Cisco MGBLX1 SFP Transceiver | Gigabit Ethernet (GbE) 1000BASE-LX Mini-GBIC (MGBLX1). Maximum data transfer rate: 1000 Mbit/s, Cabling technology: 1000Base-LX. Maximum transfer distance: 10000 m, Wavelength: 1310 nm. Connectivity technology: Wired. Power consumption (typical): 1 W. Width: 55.7 mm, Depth: 13.4 mm, Height: 8.5 mm
Technical Spec
Technical Spec
Product Description
Cisco MGBLX1 SFP Transceiver | Gigabit Ethernet (GbE) 1000BASE-LX Mini-GBIC (MGBLX1), 1000 Mbit/s, 1000Base-LX, 10000 m, 1310 nm, Wired, 1 W
Tech Specs
Network
Maximum data transfer rate
1000 Mbit/s
Cabling technology
1000Base-LX
Performance
Maximum transfer distance
10000 m
Wavelength
1310 nm
Features
Hot-swap
Yes
Plug and Play
Yes
Ports & interfaces
Connectivity technology
Wired
Power
Power consumption (typical)
1 W
Weight & dimensions
Width
55.7 mm
Depth
13.4 mm
Height
8.5 mm
Weight
20 g
Operational conditions
Operating temperature (T-T)
0 - 70 °C
Storage temperature (T-T)
-40 - 85 °C
Operating relative humidity (H-H)
10 - 85%
Storage relative humidity (H-H)
5 - 90%
Packaging data
Package width
81.3 mm
Package depth
127 mm
Package height
25.4 mm
Package weight
50 g
Certificates
Safety
FDA 21 CFR 1040.10 & 1040.11, EN60950, EN (IEC) 60825-1,2
Certification
FCC Part 15 Class B,
EN55022 Class B (CISPR 22B),
VCCI Class B.
Logistics data
Country of origin
China
Quantity per pack
1 pc(s)
Harmonized System (HS) code
85176990
Other features
Transmit power range
-9.5 - -3 dBmW
Dimensions (WxDxH)
13.4 x 55.7 x 8.5 mm
Interface
SFP
Connector(s)
LC-LC
Full duplex
Yes
Fiber type
SMF
