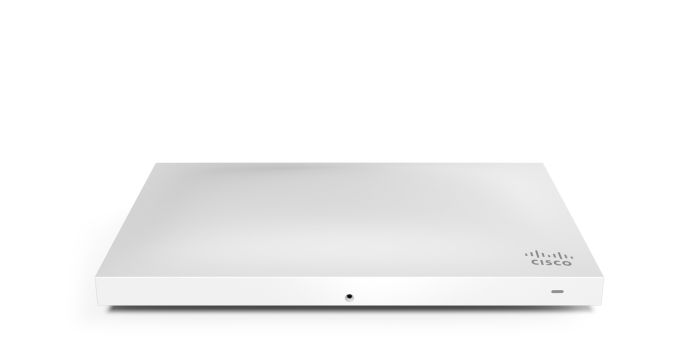

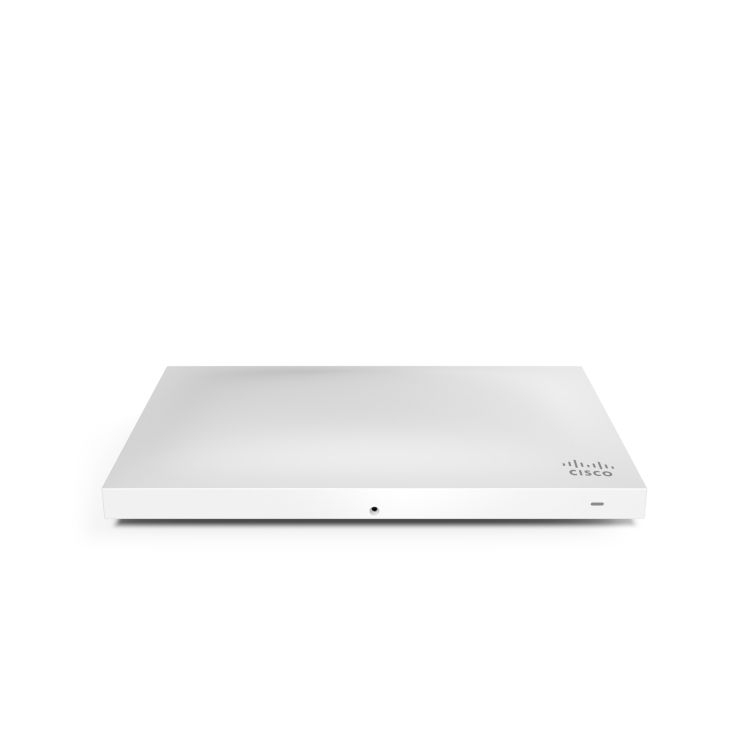

Cisco Meraki MR42 Cloud Managed Access Point (AP)
EAN:
0810979012207
Meraki cloud-managed APs feature ease of multi-site management through a dashboard used to manage the entire Meraki portfolio. Meraki APs benefit from 802.11ac performance, embedded security, exceptional network insight and analytics. - High...
Product Description
Product Description
Meraki cloud-managed APs feature ease of multi-site management through a dashboard used to manage the entire Meraki portfolio. Meraki APs benefit from 802.11ac performance, embedded security, exceptional network insight and analytics.
- High performance 802.11ac
- Built-in scanning radio
- Bluetooth Low Energy
Technical Spec
Technical Spec
Product Description
Cisco Meraki MR42 Cloud Managed AP, 1900 Mbit/s, IEEE 802.11a,IEEE 802.11ac,IEEE 802.11b,IEEE 802.11e,IEEE 802.11g,IEEE 802.11h,IEEE 802.11i,IEEE..., 5 GHz, 10,100,1000 Mbit/s, 2.412 - 5.825 GHz, 256-QAM
Tech Specs
Performance
Maximum data transfer rate
1900 Mbit/s
2.4 GHz
Y
5 GHz
Y
Networking standards
IEEE 802.11a,IEEE 802.11ac,IEEE 802.11b,IEEE 802.11e,IEEE 802.11g,IEEE 802.11h,IEEE 802.11i,IEEE 802.11k,IEEE 802.11n,IEEE 802.11r,IEEE 802.11u
Bandwidth
5 GHz
Ethernet LAN data rates
10,100,1000 Mbit/s
Frequency band
2.412 - 5.825 GHz
Modulation
256-QAM
Web-based management
Y
Quality of Service (QoS) support
Y
VLAN support
Y
Tagged VLAN
Y
Ports & interfaces
Ethernet LAN (RJ-45) ports
1
WAN connection
Ethernet (RJ-45)
DC-in jack
Y
Security
Security algorithms
AES,TKIP
Antenna
Antenna type
omni
Integrated antenna
Y
Power
Power consumption (max)
20 W
Input voltage
12 V
Power over Ethernet (PoE)
Y
Design
Internal
Y
Product colour
White
Placement
Ceiling,Table,Wall
Cable lock slot
Y
Cable lock slot type
Kensington
LED indicators
Status
Operational conditions
Operating relative humidity (H-H)
5 - 95%
Operating temperature (T-T)
0 - 40 °C
Weight & dimensions
Width
253.4 mm
Depth
155.8 mm
Height
37.1 mm
Weight
700 g
Packaging content
Mounting kit
Y
