Product Description

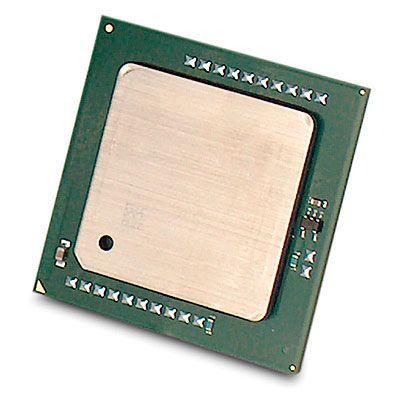

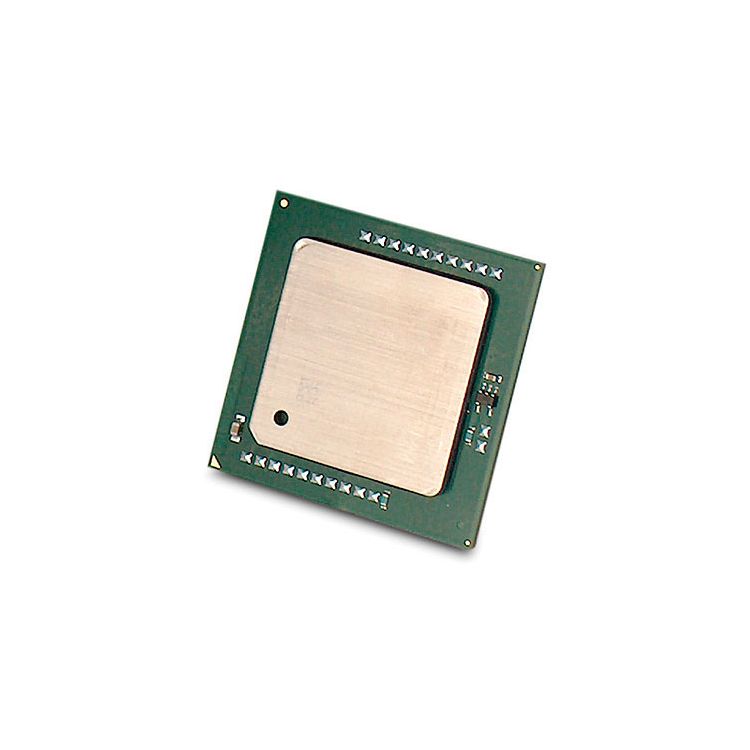

Hewlett Packard Enterprise Intel Xeon Gold 5220, Intel® Xeon® Gold, 2.2 GHz, LGA 3647, Server/Workstation, 14 nm, 64-bit
Tech Specs
Intel® Turbo Boost Technology|http
//images.icecat.biz/img/feature_logo/61-5887.png|Higher Performance When You Need It Most
Intel® Turbo Boost Technology 2.01 accelerates processor and graphics performance by increasing the operating frequency when operating below specification limits. The maximum frequency varies depending on workload, hardware, software, and overall system configuration.
Intel® vPro™ Technology|http
Intel® Turbo Boost Technology 2.01 accelerates processor and graphics performance by increasing the operating frequency when operating below specification limits. The maximum frequency varies depending on workload, hardware, software, and overall system configuration.
Intel® vPro™ Technology|http
Processor
Processor family
Intel® Xeon® Gold
Processor frequency
2.2 GHz
Processor cores
18
Processor socket
LGA 3647
Component for
Server/Workstation
Processor lithography
14 nm
Cooler included
N
Processor model
5220
Processor threads
36
Processor operating modes
64-bit
Processor series
Intel Xeon Gold 5000 Series
Processor cache
25 MB
Processor cache type
L3
Stepping
L1
Processor boost frequency
3.9 GHz
Bus type
UPI
Processor codename
Cascade Lake
Memory
Memory channels supported by processor
Hexa
Maximum internal memory supported by processor
1000 GB
Memory types supported by processor
DDR4-SDRAM
Memory clock speeds supported by processor
2667 MHz
ECC supported by processor
Y
Graphics
On-board graphics adapter
N
Discrete graphics adapter
N
Power
Thermal Design Power (TDP)
125 W
Features
Execute Disable Bit
Y
Maximum number of PCI Express lanes
48
PCI Express slots version
3.0
Supported instruction sets
AVX-512
Scalability
4S
Embedded options available
N
Intel® Optane™ Memory module included
Y
Processor special features
Intel® Hyper Threading Technology (Intel® HT Technology)
Y
Intel® Turbo Boost Technology
2.0
Intel® vPro™ Technology
Y
Intel® AES New Instructions (Intel® AES-NI)
Y
Enhanced Intel SpeedStep Technology
Y
Intel Trusted Execution Technology
Y
Intel® Speed Shift Technology
Y
Intel VT-x with Extended Page Tables (EPT)
Y
Intel TSX-NI
Y
Intel 64
Y
Intel Virtualization Technology (VT-x)
Y
Intel Virtualization Technology for Directed I/O (VT-d)
Y
Intel Turbo Boost Max Technology 3.0
N
AVX-512 Fused Multiply-Add (FMA) units
1
Operational conditions
Tcase
87 °C
Other features
Compatibility
DL360 Gen10
Technical details
Intel® Run Sure Technology version
Y
Intel® Volume Management Device (VMD) version
Y
Mode-based Execute Control (MBE) version
Y
Number of UPI links
2
