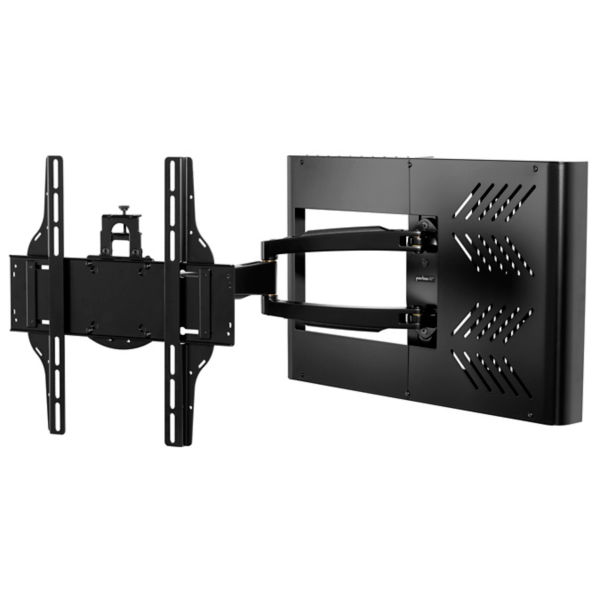

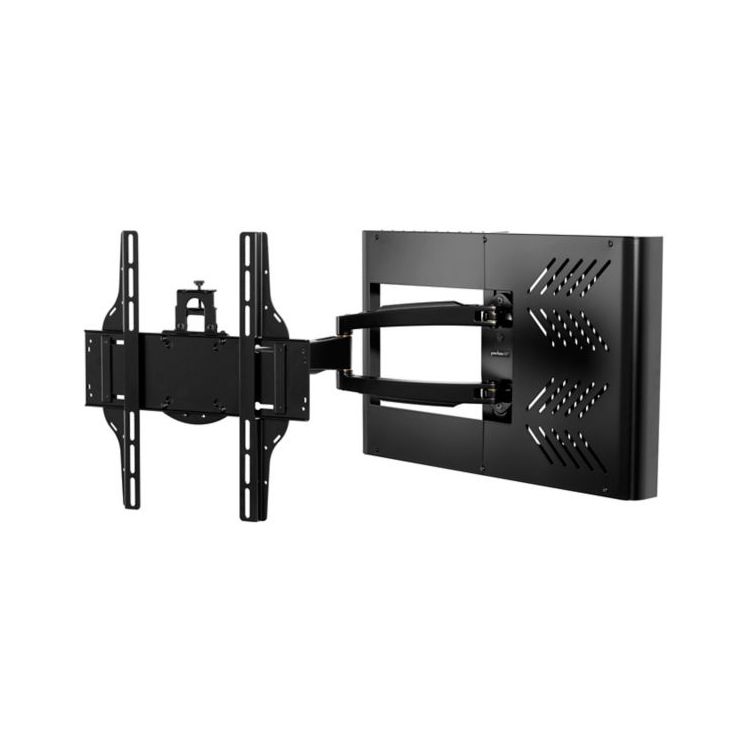

Peerless HA746-STB flat panel wall mount 139.7 cm (55") Black
EAN:
0735029314226
The Hospitality Wall Arm Mount with Set Top Box (STB) Enclosure was designed with the Hospitality market in mind, offering installation flexibility and an aesthetically pleasing solution for cable management and electronic storage. This...
Product Description
Product Description

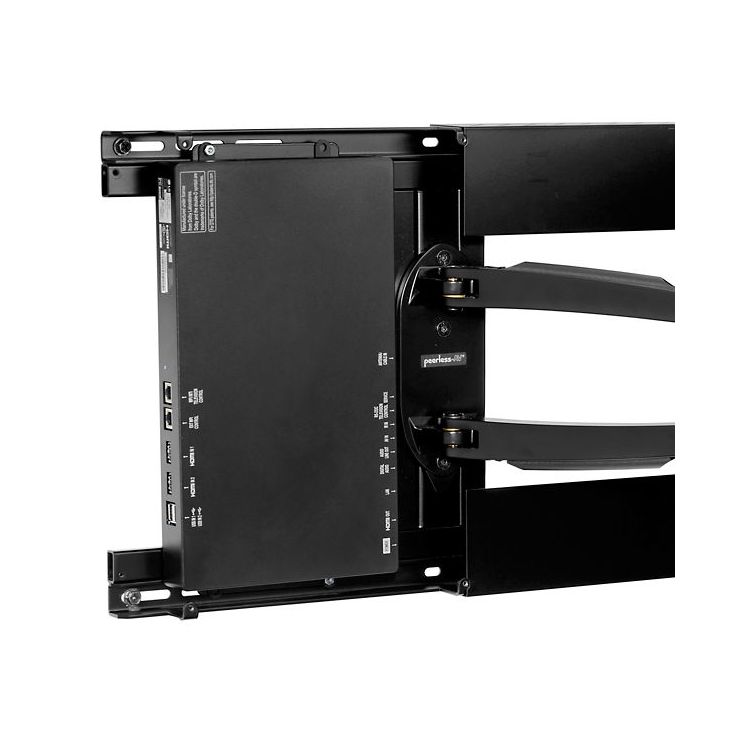

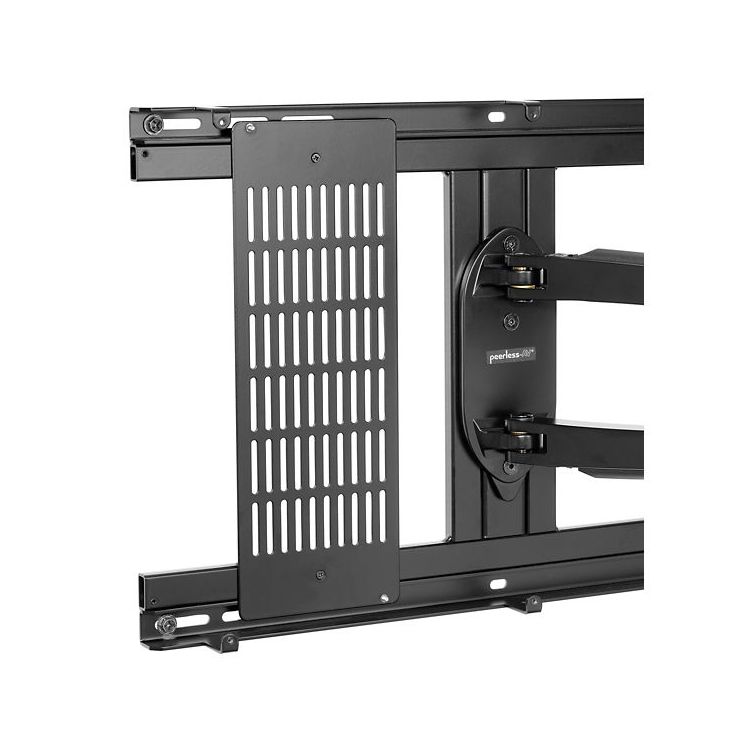

The Hospitality Wall Arm Mount with Set Top Box (STB) Enclosure was designed with the Hospitality market in mind, offering installation flexibility and an aesthetically pleasing solution for cable management and electronic storage. This articulating wall mount can be installed easily on single and dual metal studs, wood or concrete and comes complete with attachment hardware. The enclosure provides a secure, vented storage area for electronics to avoid the mess of tangled cables and exposed cable boxes in guest rooms/ public areas. For maintenance purposes, simply remove the tamper resistant screws and the enclosure covers can easily be removed, allowing for quick access to the STB without disturbing the TV or mount itself. Additionally, the mount's open wall plate design allows for easy access to the wall or junction box.
Technical Spec
Technical Spec
Product Description
Peerless HA746-STB, 36 kg, 109.2 cm (43"), 139.7 cm (55"), 100 x 200 mm, 400 x 400 mm, Black
Tech Specs
Mounting
Maximum weight capacity
36 kg
Maximum screen size compatibility
139.7 cm (55")
Minimum VESA mount
100 x 200 mm
Maximum VESA mount
400 x 400 mm
Minimum screen size compatibility
109.2 cm (43")
Suitable for
TV
Panel mounting interface
100 x 200,400 x 400 mm
Ergonomics
Tilt angle range
-5 - 15°
Swivel angle range
-90 - 90°
Distance to the wall (max)
56.4 cm
Distance to the wall (min)
10 cm
Design
Product colour
Black
Cable management
Y
Weight & dimensions
Width
584 mm
Depth
101 mm
Height
377 mm
Weight
9.5 kg
Packaging data
Package width
419.1 mm
Package depth
616 mm
Package height
215.9 mm
Package weight
11.3 kg
