StarTech.com 1 Port PCI Express PCIe Gigabit Network Server Adapter NIC Card - Dual Profile
EAN:
0065030849265
The ST1000SPEX2 PCIe Gigabit Ethernet Network Card adds a 10/100/1000 Mbps compatible RJ45 Ethernet port to a PCI Express-enabled client, server or workstation, providing a convenient addition or replacement networking interface. Compliant...
Product Description
Product Description
The ST1000SPEX2 PCIe Gigabit Ethernet Network Card adds a 10/100/1000 Mbps compatible RJ45 Ethernet port to a PCI Express-enabled client, server or workstation, providing a convenient addition or replacement networking interface.
Compliant with IEEE 802.3/u/ab standards, and with support for 9K Jumbo Frames, VLAN tagging and Wake on LAN (WOL), this versatile Gigabit NIC/Server Adapter delivers rock-solid performance.

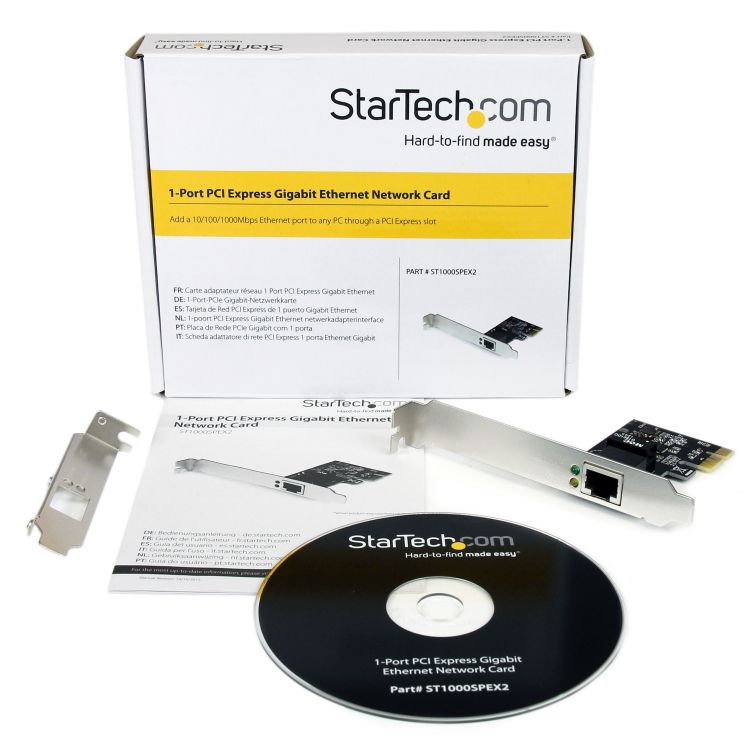

Plus, the card includes both full profile and low profile/half-height installation brackets for installation in a wide range of computer/server chassis, regardless of form factor.
The ST1000SPEX2 network card is backed by a 2-year StarTech.com warranty and free lifetime technical support.
The StarTech.com Advantage
- Fits into full-size or low profile/small form factor (SFF) systems, with the addition of a half-height bracket
- Offers performance flexibility and easy setup with support for advanced features such as Jumbo Frames, Wake-On-LAN and Auto MDIX
Technical Spec
Technical Spec
Product Description
StarTech.com 1 Port PCI Express PCIe Gigabit Network Server Adapter NIC Card - Dual Profile, Internal, Wired, PCI-E, Ethernet, 1000 Mbit/s
Tech Specs
Ports & interfaces
Connectivity technology
Wired
Internal
Y
Host interface
PCI-E
Interface
Ethernet
Ethernet LAN (RJ-45) ports
1
Bandwidth
Maximum data transfer rate
1000 Mbit/s
Supported data transfer rates
10/100/1000 Mbit/s
Full duplex
Y
Wireless LAN features
Wi-Fi
N
Networking
Networking standards
IEEE 802.3,IEEE 802.3ab,IEEE 802.3u,IEEE 802.3x
Chipset
Realtek RTL8111E
Ethernet LAN
Y
Cabling technology
10/100/1000BaseT(X)
Ethernet LAN data rates
10,100,1000 Mbit/s
Ethernet interface type
Gigabit Ethernet
Jumbo frames support
Y
Jumbo frames
9000
Protocols
Supported network protocols
CSMA/CD
Design
LED indicators
Activity,Link
Performance
Wake-on-LAN ready
Y
Auto MDIX IEEE
Y
Mean time between failures (MTBF)
376212 h
System requirements
Windows operating systems supported
Windows 10 Education,Windows 10 Education x64,Windows 10 Enterprise,Windows 10 Enterprise x64,Windows 10 Home,Windows 10 Home x64,Windows 10 Pro,Windows 10 Pro x64,Windows 2000,Windows 2000 Professional,Windows 7 Enterprise,Windows 7 Enterprise x64,Windows 7 Home Basic,Windows 7 Home Basic x64,Windows 7 Home Premium,Windows 7 Home Premium x64,Windows 7 Professional,Windows 7 Professional x64,Windows 7 Starter,Windows 7 Starter x64,Windows 7 Ultimate,Windows 7 Ultimate x64,Windows 8,Windows 8 Enterprise,Windows 8 Enterprise x64,Windows 8 Pro,Windows 8 Pro x64,Windows 8 x64,Windows 8.1,Windows 8.1 Enterprise,Windows 8.1 Enterprise x64,Windows 8.1 Pro,Windows 8.1 Pro x64,Windows 8.1 x64,Windows Vista Business,Windows Vista Business x64,Windows Vista Enterprise,Windows Vista Enterprise x64,Windows Vista Home Basic,Windows Vista Home Basic x64,Windows Vista Home Premium,Windows Vista Home Premium x64,Windows Vista Ultimate,Windows Vista Ultimate x64,Windows XP Home,Windows XP Home x64,Windows XP Professional,Windows XP Professional x64
Mac operating systems supported
Mac OS X 10.0 Cheetah,Mac OS X 10.1 Puma,Mac OS X 10.10 Yosemite,Mac OS X 10.11 El Capitan,Mac OS X 10.2 Jaguar,Mac OS X 10.3 Panther,Mac OS X 10.4 Tiger,Mac OS X 10.5 Leopard,Mac OS X 10.6 Snow Leopard,Mac OS X 10.7 Lion,Mac OS X 10.8 Mountain Lion,Mac OS X 10.9 Mavericks
Linux operating systems supported
Y
Server operating systems supported
Windows Server 2003,Windows Server 2003 x64,Windows Server 2008 R2,Windows Server 2012 R2
Weight & dimensions
Width
120.3 mm
Depth
67.9 mm
Height
18 mm
Weight
40 g
Package width
176 mm
Package depth
144 mm
Package height
34 mm
Package weight
120 g
Certificates
Certification
CE, FCC
RoHS compliance
Y
Operational conditions
Operating temperature (T-T)
0 - 70 °C
Storage temperature (T-T)
0 - 100 °C
Operating relative humidity (H-H)
10 - 90%
Packaging content
Manual
Y
Drivers included
Y
Low-profile bracket
Y
