APC Smart-UPS RT 15kVA, 230/400V, LCD, rackmount, 12U, 2x IEC Jumpers & 8x IEC 60320 C19 outlets
EAN:
0731304255727
APC Smart-UPS RT 15kVA, 230/400V, LCD, rackmount, 12U, 2x IEC Jumpers & 8x IEC 60320 C19 outlets. UPS topology: Double-conversion (Online), Output power capacity: 15 kVA, Output power: 12000 W. AC outlet types: C19 coupler, Power plug: Terminal,...
Product Description
Product Description
0
APC Smart-UPS RT 15kVA, 230/400V, LCD, rackmount, 12U, 2x IEC Jumpers & 8x IEC 60320 C19 outlets. UPS topology: Double-conversion (Online), Output power capacity: 15 kVA, Output power: 12000 W. AC outlet types: C19 coupler, Power plug: Terminal, AC outlets quantity: 8 AC outlet(s). Battery technology: Sealed Lead Acid (VRLA), Battery capacity: 3840 VAh, Typical backup time at full load: 8.3 min. Form factor: Rackmount/Tower, Product colour: Black, Rack capacity: 12U. Compliance certificates: RoHS, Certification: EN/IEC 62040-2, EN/IEC 62040-1-1, VDE, PEP, EOLI
APC Smart-UPS RT 15kVA, 230/400V, LCD, rackmount, 12U, 2x IEC Jumpers & 8x IEC 60320 C19 outlets. UPS topology: Double-conversion (Online), Output power capacity: 15 kVA, Output power: 12000 W. AC outlet types: C19 coupler, Power plug: Terminal, AC outlets quantity: 8 AC outlet(s). Battery technology: Sealed Lead Acid (VRLA), Battery capacity: 3840 VAh, Typical backup time at full load: 8.3 min. Form factor: Rackmount/Tower, Product colour: Black, Rack capacity: 12U. Compliance certificates: RoHS, Certification: EN/IEC 62040-2, EN/IEC 62040-1-1, VDE, PEP, EOLI
Technical Spec
Technical Spec
Product Description
APC Smart-UPS RT 15kVA, 230/400V, LCD, rackmount, 12U, 2x IEC Jumpers & 8x IEC 60320 C19 outlets, Double-conversion (Online), 15 kVA, 12000 W, Sine, 40 - 70 Hz, 220 V
Tech Specs
Features
UPS topology
Double-conversion (Online)
Output power capacity
15 kVA
Output power
12000 W
Waveform
Sine
Input frequency
40 - 70 Hz
Output operation voltage (min)
220 V
Output operation voltage (max)
240 V
Output frequency regulation
50/60 Hz
Maximum current
90 A
Number of output phases
1
Efficiency
95%
Crest factor
3
Emergency Power Off (EPO)
Yes
Noise level
50 dB
Surge protection
Yes
Audible alarm(s)
Yes
Auto-restart
Yes
Ports & interfaces
AC outlet types
C19 coupler
Power plug
Terminal
AC outlets quantity
8 AC outlet(s)
Number of output IEC jumpers
2
Serial interface
Yes
Serial interface type
RS-232
Cabling technology
10/100Base-T
SmartSlot
Yes
Battery
Battery technology
Sealed Lead Acid (VRLA)
Battery capacity
3840 VAh

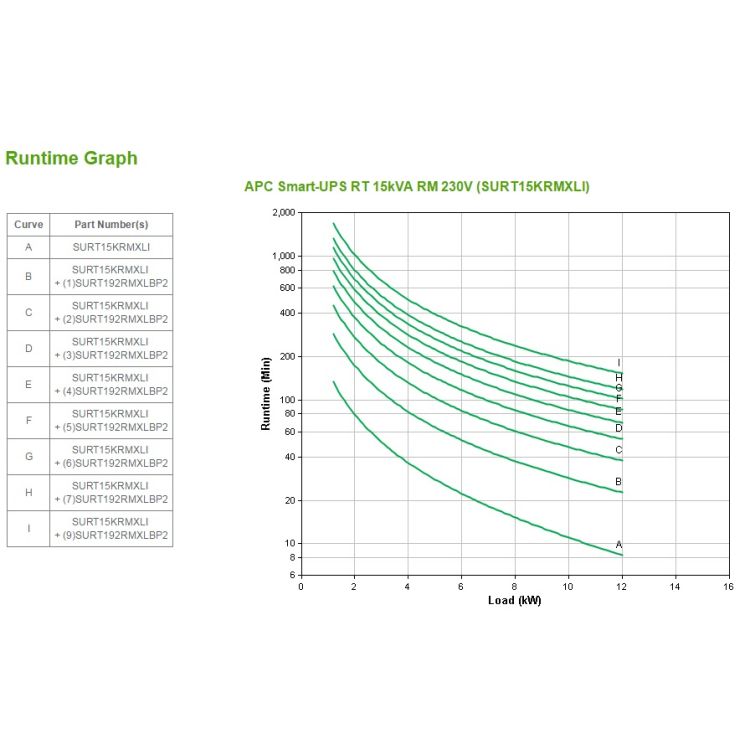

Typical backup time at full load
8.3 min
Typical backup time at half load
22.3 min
Battery life (max)
5 year(s)
Battery recharge time
2.5 h
Hot-swap battery
Yes
Automatic battery test
Yes
Cold start
Yes
Design
Form factor
Rackmount/Tower
Product colour
Black
Rack capacity
12U
Display type
LCD
LED indicators
Yes
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-15 - 45 °C
Operating relative humidity (H-H)
0 - 95%
Storage relative humidity (H-H)
0 - 95%
Operating altitude
0 - 3000 m
Non-operating altitude
0 - 15000 m
Certificates
Compliance certificates
RoHS
Certification
EN/IEC 62040-2, EN/IEC 62040-1-1, VDE, PEP, EOLI
Packaging content
Rack mount kit
Yes
Cables included
RS-232
Manual
Yes
Weight & dimensions
Width
432 mm
Depth
773 mm
Height
533 mm
Weight
247.7 kg
Packaging data
Software CD
Yes
Package width
610 mm
Package depth
1003 mm
Package height
990 mm
Package weight
314.1 kg
Logistics data
Products per pallet
1 pc(s)
Harmonized System (HS) code
85078000
Total carbon footprint (kg of CO2e)
29383.71
Other features
Nominal output voltage
230 V
Nominal input voltage
230 V
