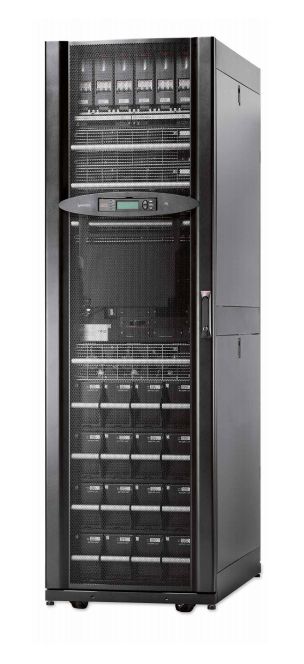

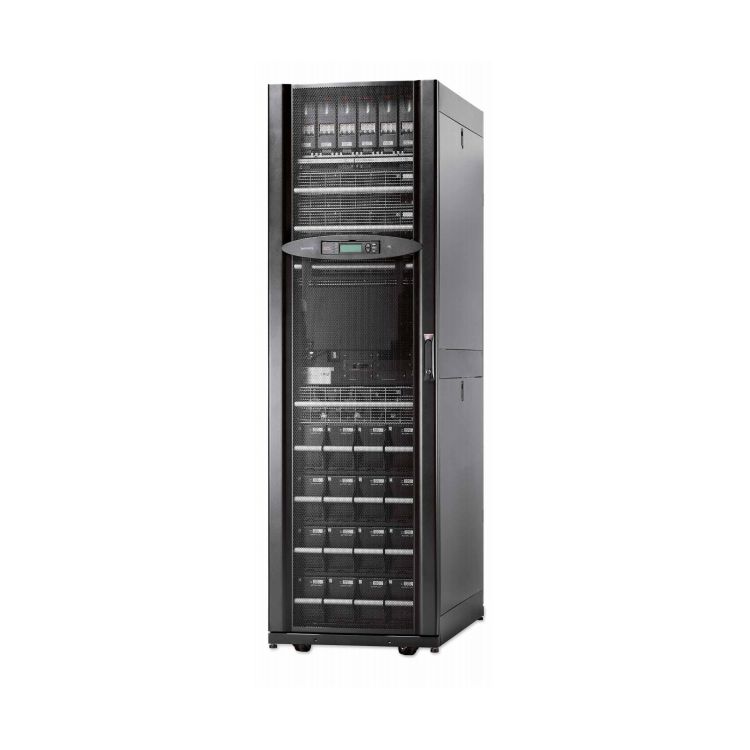

APC SY48K48H-PDNB uninterruptible power supply (UPS) Double-conversion (Online) 48 kVA 48000 W
APC SY48K48H-PDNB. UPS topology: Double-conversion (Online), Output power capacity: 48 kVA, Output power: 48000 W. Power plug: Terminal. Product colour: Black, Display type: LCD. Certification: EN 50091-1, EN/IEC 62040-1-1, EN/IEC 62040-3, FCC...
Product Description
Product Description
APC SY48K48H-PDNB. UPS topology: Double-conversion (Online), Output power capacity: 48 kVA, Output power: 48000 W. Power plug: Terminal. Product colour: Black, Display type: LCD. Certification: EN 50091-1, EN/IEC 62040-1-1, EN/IEC 62040-3, FCC Part 15 Class A, ISO 14001, ISO 9001, VFI-SS-111. Width: 600 mm, Depth: 1070 mm, Height: 1991 mm
Technical Spec
Technical Spec
Product Description
APC SY48K48H-PDNB, Double-conversion (Online), 48 kVA, 48000 W, Sine, 340 V, 477 V
Tech Specs
Features
UPS topology
Double-conversion (Online)
Output power capacity
48 kVA
Output power
48000 W
Waveform
Sine
Input operation voltage (min)
340 V
Input operation voltage (max)
477 V
Input frequency
40 - 70 Hz
Output operation voltage (min)
380 V
Output operation voltage (max)
415 V
Output frequency
50/60 Hz
Maximum current
98 A
Emergency Power Off (EPO)
Yes
Output voltage Total Harmonic Distortion (THD)
2%
Input current Total Harmonic Distortion (THD)
5%
Noise level
61 dB
Audible alarm(s)
Yes
Web-based management
Yes
Audible alarm modes
Alarm when on battery, Low battery alarm
Ports & interfaces
Power plug
Terminal
SmartSlot
Yes
Design
Product colour
Black
Display type
LCD
LED indicators
Yes
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-15 - 40 °C
Operating relative humidity (H-H)
0 - 95%
Storage relative humidity (H-H)
0 - 95%
Non-operating altitude
0 - 15000 m
Certificates
Certification
EN 50091-1, EN/IEC 62040-1-1, EN/IEC 62040-3, FCC Part 15 Class A, ISO 14001, ISO 9001, VFI-SS-111
Weight & dimensions
Width
600 mm
Depth
1070 mm
Height
1991 mm
Weight
397 kg
Packaging data
Management card included
Yes
Service included
Start-Up Service
Package width
848 mm
Package depth
1210 mm
Package height
2140 mm
Package weight
430 kg
Other features
Packaging content
Network Management Card, Start-Up Servic
