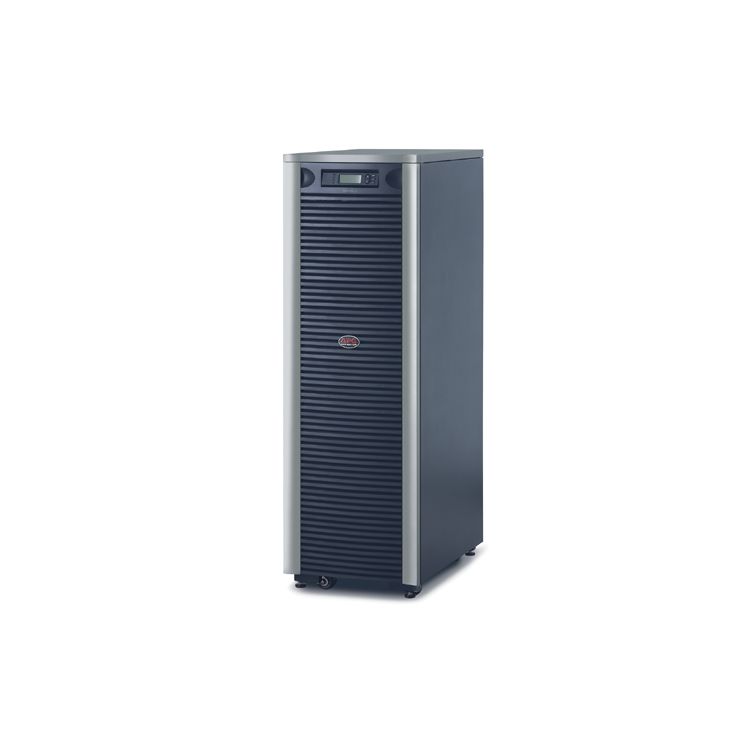

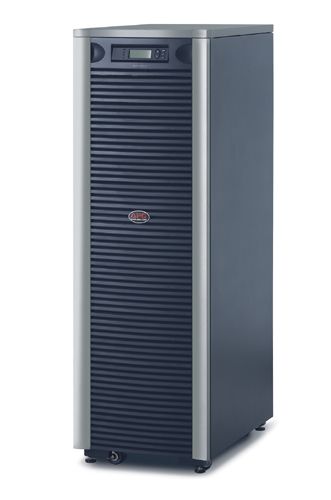

APC Symmetra LX 12kVA Scalable to 16kVA N+1 Ext. Run Tower, 220/230/240V or 380/400/415V uninterruptible power supply (UPS) 8400 W
EAN:
2000009255089
APC Symmetra LX 12kVA Scalable to 16kVA N+1 Ext. Run Tower, 220/230/240V or 380/400/415V. Output power capacity: 12 kVA, Output power: 8400 W. Typical backup time at full load: 35.4 min, Typical backup time at half load: 77.4 min, Replacement...
Product Description
Product Description
0
APC Symmetra LX 12kVA Scalable to 16kVA N+1 Ext. Run Tower, 220/230/240V or 380/400/415V. Output power capacity: 12 kVA, Output power: 8400 W. Typical backup time at full load: 35.4 min, Typical backup time at half load: 77.4 min, Replacement battery cartridge: SYBT5. Weight: 489 g. Battery type: Maintenance-free sealed Lead-Acid battery with suspended electrolyte: leakproof, Interface: DB-9 RS-232, Smart-Slot, Output connections: (1) Hard Wire 3-wire (H N + G)
APC Symmetra LX 12kVA Scalable to 16kVA N+1 Ext. Run Tower, 220/230/240V or 380/400/415V. Output power capacity: 12 kVA, Output power: 8400 W. Typical backup time at full load: 35.4 min, Typical backup time at half load: 77.4 min, Replacement battery cartridge: SYBT5. Weight: 489 g. Battery type: Maintenance-free sealed Lead-Acid battery with suspended electrolyte: leakproof, Interface: DB-9 RS-232, Smart-Slot, Output connections: (1) Hard Wire 3-wire (H N + G)
Technical Spec
Technical Spec
Product Description
APC Symmetra LX 12kVA Scalable to 16kVA N+1 Ext. Run Tower, 220/230/240V or 380/400/415V, 12 kVA, 8400 W, 35.4 min, 77.4 min, SYBT5, 0 - 40 °C
Tech Specs
Output power capacity
12 kVA
Output power
8400 W
Emergency Power Off (EPO)
Yes
Typical backup time at full load
35.4 min
Typical backup time at half load
77.4 min
Replacement battery cartridge
SYBT5
Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-15 - 45 °C
Operating relative humidity (H-H)
0 - 95%
Storage relative humidity (H-H)
0 - 95%
Operating altitude
0 - 3000 m
Weight
489 g
Harmonized System (HS) code
85078000
Battery type
Maintenance-free sealed Lead-Acid battery with suspended electrolyte
Interface
DB-9 RS-232, Smart-Slot
Output connections
(1) Hard Wire 3-wire (H N + G)
Input connection type
Hard Wire 3 wire (1PH+N+G), Hard Wire 5-wire (3PH + N + G)
Dimensions (WxDxH)
480 x 730 x 1520 mm
Nominal output voltage
230 V
Output voltage note
Configurable for 220
Networking features
Y
I/O ports
Pre-Installed SmartSlot Cards - AP9619
