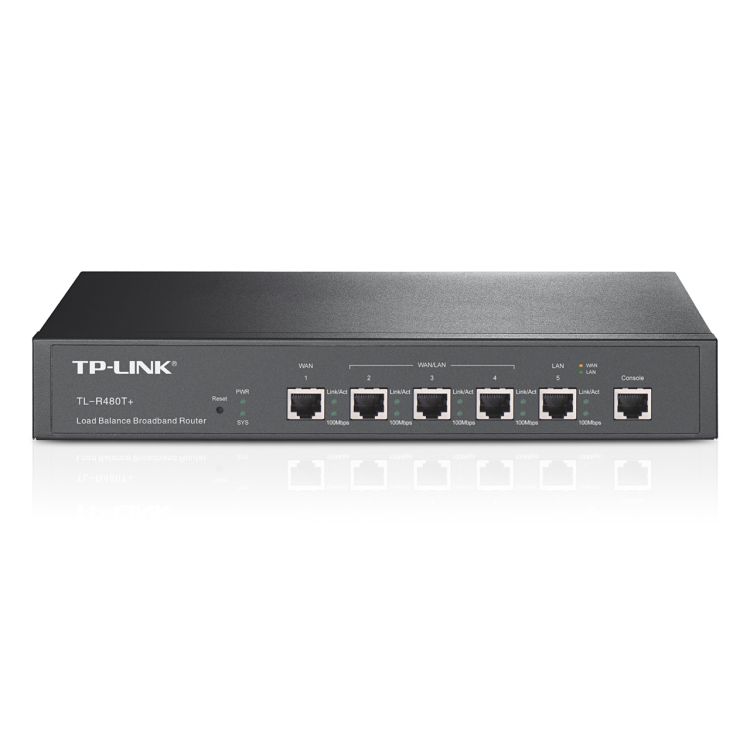

TP-LINK TL-R480T+ wired router Fast Ethernet Grey
EAN:
0696726480020
The TL-R480T+ adopts Intel IXP network processors, main frequency up to 266MHz, multi-CPU distributed architecture, to ensure high performance and high availability. Additionally, the 6-layer PCB, the built-in high-redundancy power module feature...
Product Description
Product Description
The TL-R480T+ adopts Intel IXP network processors, main frequency up to 266MHz, multi-CPU distributed architecture, to ensure high performance and high availability. Additionally, the 6-layer PCB, the built-in high-redundancy power module feature a new architecture that dramatically stretches the performance of the router by enabling stable connections.
The TL-R480T+ features two WAN ports, which allows two connections to the Internet at the same time, provides you double-bandwidth access, and gives you the ability to enjoy more Internet sources from different ISPs. With fail-over and automatic load balancing, no manual work should ever be required.
The TL-R480T+ provides all the normal settings of a broadband router, it features much more advanced functions, such as Bandwidth Control, Port Mirror, Port VLAN, UPnP, VPN Pass-through, Firewall, System Log and so on.
The TL-R480T+ provides a friendly configuration interface for easy using. With multiple functions, high-reliability, and high-security, it widely meets enterprise, organ, Internet cafe, broadband community, and school networks new and changing requirements.
Features
> Shares data and Internet access for Stations, connecting Internet through PPPoE on demand and disconnecting when idle
> Supports TCP/IP, PPPoE, DHCP, ICMP, NAT, SNTP
> Provides double-bandwidth access and supports Load Balancing
> Backups connections automatically for each other
> Specifies priority channels according to source or destination IP addresses, distributing flexibly Internet resource and services from different ISPs
> Built-in NAT and DHCP server supporting static IP address distributing
> Built-in firewall supporting IP address filtering, Domain Name filtering, and MAC address filtering
> Supports Port Bandwidth Control, Port Mirror, Port-based VLAN for LAN ports
> Supports Virtual Server, Special Application, and DMZ host
> Supports UPnP, Static Routing, VPN pass-through
> Supports connecting/disconnecting Internet on a specified time of day
> Supports access control based on time of day, parents and network administrators can establish restricted access policies for children or staffs
> Supports Flow Statistics
> Supports ICMP-FLOOD, UDP-FLOOD, TCP-SYN-FLOOD filter
> Supports web-based firmware upgrade
> Supports Remote and Web management
> Desktop or rack-mountable steel case
Technical Spec
Technical Spec
Product Description
TP-LINK TL-R480T+, IEEE 802.3,IEEE 802.3u, Fast Ethernet, 10/100Base-T(X), 10,100 Mbit/s, TCP/IP, ICMP, PPPoE, SNTP, HTTP, 802.1x RADIUS
Tech Specs
WAN connection
Ethernet WAN
Y
Wireless LAN features
Dual-band
N
Ports & interfaces
Ethernet LAN (RJ-45) ports
3
RS-232 ports
1
DC-in jack
Y
Networking
Networking standards
IEEE 802.3,IEEE 802.3u
Ethernet interface type
Fast Ethernet
Ethernet LAN
Y
Cabling technology
10/100Base-T(X)
Ethernet LAN data rates
10,100 Mbit/s
Full duplex
Y
Protocols
DHCP client
Y
DHCP server
Y
DMZ support
Y
Supported network protocols
TCP/IP, ICMP, PPPoE, SNTP, HTTP
Management features
Web-based management
Y
Quality of Service (QoS) support
Y
Universal Plug and Play (UPnP)
Y
Reset button
Y
Firmware upgradeable
Y
Security
Security algorithms
802.1x RADIUS
Firewall security
Stateful packet inspection (SPI) firewall, Network address translation (NAT) firewall, Denial of Service (DoS) protection
MAC address filtering
Y
IP address filtering
Y
Design
Product colour
Grey
Rack mounting
Y
Power
AC input voltage
220 - 240 V
AC input frequency
50/60 Hz
Features
Certification
CE, FCC
Weight & dimensions
Weight
2.35 kg
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-40 - 70 °C
Operating relative humidity (H-H)
10 - 90%
Storage relative humidity (H-H)
5 - 90%
Other features
Dimensions (WxDxH)
294 x 180 x 44 mm
Connectivity technology
Wired
