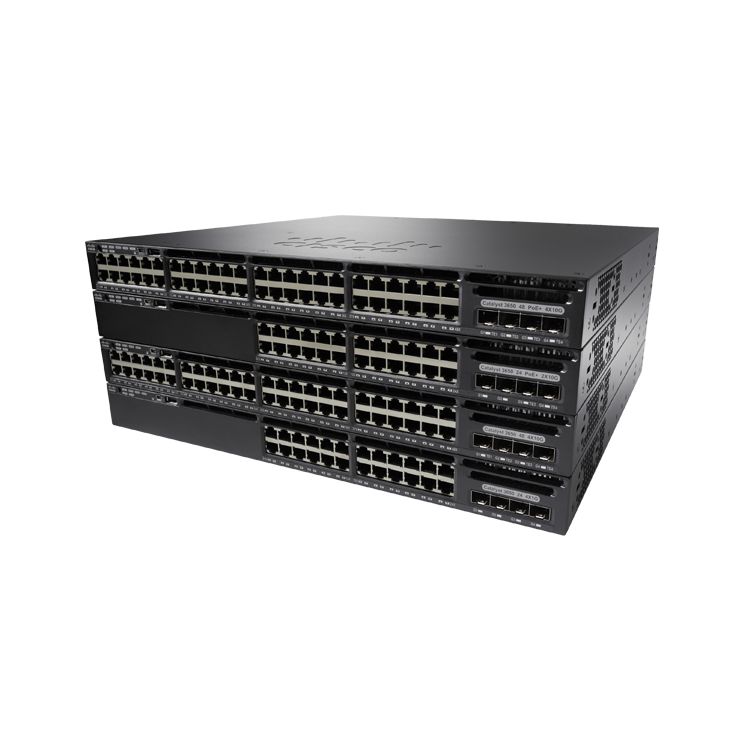

Cisco Catalyst WS-C3650-48PQ-E network switch Managed L3 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U Black
EAN:
0882658609206
Cisco Catalyst WS-C3650-48PQ-E. Switch type: Managed, Switch layer: L3. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 48. Full duplex. MAC address table: 32000 entries,...
Product Description
Product Description
0
Cisco Catalyst WS-C3650-48PQ-E. Switch type: Managed, Switch layer: L3. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 48. Full duplex. MAC address table: 32000 entries, Switching capacity: 176 Gbit/s. Networking standards: IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE.... Power over Ethernet (PoE). Rack mounting, Form factor: 1U
Cisco Catalyst WS-C3650-48PQ-E. Switch type: Managed, Switch layer: L3. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 48. Full duplex. MAC address table: 32000 entries, Switching capacity: 176 Gbit/s. Networking standards: IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE.... Power over Ethernet (PoE). Rack mounting, Form factor: 1U
Technical Spec
Technical Spec
Product Description
Cisco Catalyst WS-C3650-48PQ-E, Managed, L3, Gigabit Ethernet (10/100/1000), Power over Ethernet (PoE), Rack mounting, 1U
Tech Specs
Management features
Switch type
Managed
Switch layer
L3
Quality of Service (QoS) support
Yes
Web-based management
Yes
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity
48
Basic switching RJ-45 Ethernet ports type
Gigabit Ethernet (10/100/1000)
SFP+ module slots quantity
4
Network
Networking standards
IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
10G support
Yes
Full duplex
Yes
IP routing
Yes
Link aggregation
Yes
Rate limiting
Yes
Auto MDI/MDI-X
Yes
Spanning tree protocol
Yes
VLAN support
Yes
Number of VLANs
4094
Data transmission
MAC address table
32000 entries
Switching capacity
176 Gbit/s
Jumbo frames support
Yes
Security
DHCP features
DHCP server
Access Control List (ACL)
Yes
IGMP snooping
Yes
SSH/SSL support
Yes
Multicast features
Multicast support
Yes
Design
Rack mounting
Yes
Stackable
Yes
Form factor
1U
Product colour
Black
LED indicators
Yes
Safety
UL 60950-1, CAN/CSA-C22.2 No. 60950-1, EN 60950-1, IEC 60950-1, GOST, NOM
Performance
Memory type
DRAM
Internal memory
4096 MB
Flash memory
2000 MB
Noise level
48 dB
Mean time between failures (MTBF)
383760 h
Power
Redundant power supply (RPS) support
Yes
Number of power supply units
1
AC input voltage
100 - 240 V
AC input frequency
50 - 60 Hz
Power consumption (typical)
102.1 W
Power over Ethernet (PoE)
Power over Ethernet (PoE)
Yes
Power over Ethernet plus (PoE+) ports quantity
48
Total Power over Ethernet (PoE) budget
390 W
Other features
Bandwidth
160 Gbit/s
Operational conditions
Operating temperature (T-T)
-5 - 50 °C
Storage temperature (T-T)
-40 - 70 °C
Operating relative humidity (H-H)
5 - 96%
Operating altitude
0 - 1500 m
Non-operating altitude
0 - 5000 m
Weight & dimensions
Width
445 mm
Depth
448 mm
Height
44 mm
Weight
7.6 kg
Logistics data
Harmonized System (HS) code
85176990
