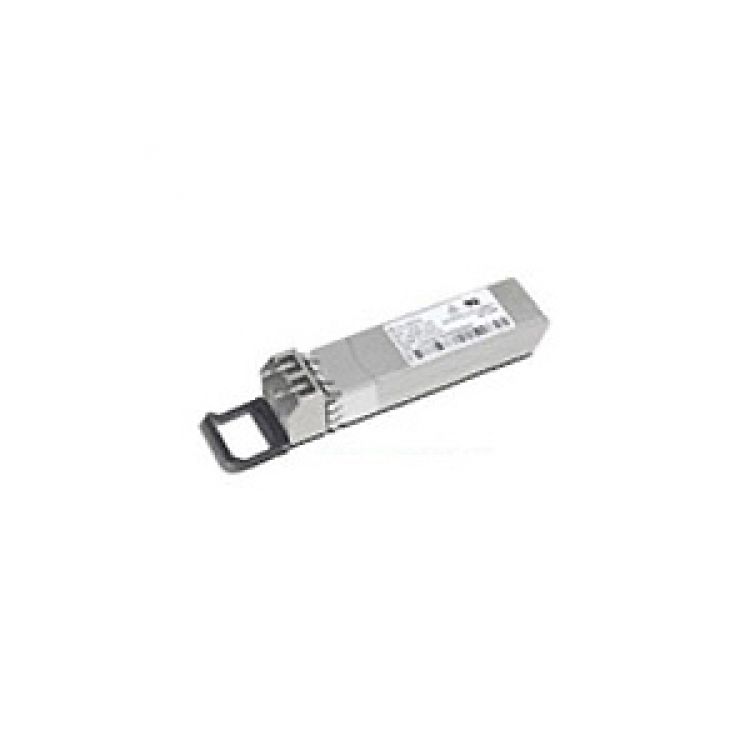

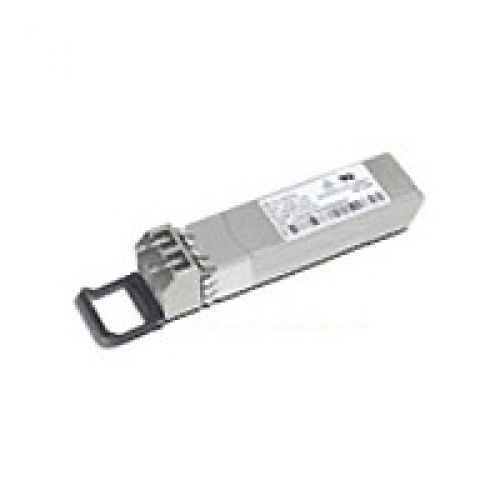

Brocade 8G FC SWL 8 Pack network transceiver module SFP+ Fiber optic 850 nm
EAN:
0819814012709
High Reliability and Optimized Performance Brocade transceiver modules undergo rigorous testing and are optimized for Brocade 8Gb products to maximize performance, reduce power consumption, and help ensure the highest availability of...
Product Description
Product Description
High Reliability and Optimized Performance
Brocade transceiver modules undergo rigorous testing and are optimized for Brocade 8Gb products to maximize performance, reduce power consumption, and help ensure the highest availability of mission-critical applications.
Technical Spec
Technical Spec
Product Description
Brocade 8G FC SWL 8 Pack, SFP+, LC, Fiber optic, 850 nm, Full, 3.3 V
Tech Specs
Networking
Interface type
SFP+
Fiber optic connector
LC
Fiber ports quantity
1
Performance
Cable type
Fiber optic
Multi-mode fiber (MMF) supported
Y
Wavelength
850 nm
Hot-swap
Y
Duplex system
Full
Power
Input voltage
3.3 V
Operational conditions
Storage temperature (T-T)
-40 - 100 °C
Weight & dimensions
Width
11.7 mm
Depth
56.4 mm
Height
10.2 mm
Certificates
Certification
UL/CSA 60950, CDRH Class 1
EN 60590, EN 60825 Class 1
EN 60590, EN 60825 Class 1
RoHS compliance
Y
