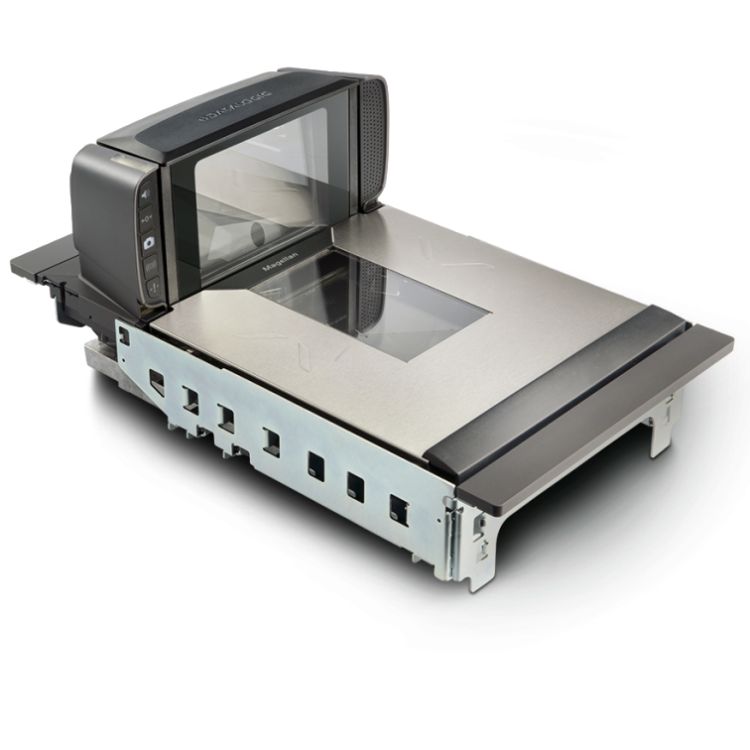

Datalogic Magellan 9300i Built-in bar code reader 1D/2D Black, Grey
EAN:
5704174312956
Datalogic Magellan 9300i. Type: Built-in bar code reader, Scanner type: 1D/2D, Linear (1D) barcodes supported: GS1 DataBar Expanded, JAN, U.P.C.. Connectivity technology: Wired, Standard interfaces: RS-232. Product colour: Black, Grey, Housing...
Product Description
Product Description
0
Datalogic Magellan 9300i. Type: Built-in bar code reader, Scanner type: 1D/2D, Linear (1D) barcodes supported: GS1 DataBar Expanded, JAN, U.P.C.. Connectivity technology: Wired, Standard interfaces: RS-232. Product colour: Black, Grey, Housing material: Glass, Metal. Power source type: AC, Power consumption (typical): 12 W, Power consumption (standby): 11 W. Width: 292 mm, Depth: 356 mm, Height: 130 mm
Datalogic Magellan 9300i. Type: Built-in bar code reader, Scanner type: 1D/2D, Linear (1D) barcodes supported: GS1 DataBar Expanded, JAN, U.P.C.. Connectivity technology: Wired, Standard interfaces: RS-232. Product colour: Black, Grey, Housing material: Glass, Metal. Power source type: AC, Power consumption (typical): 12 W, Power consumption (standby): 11 W. Width: 292 mm, Depth: 356 mm, Height: 130 mm
Technical Spec
Technical Spec
Product Description
Datalogic Magellan 9300i, Built-in bar code reader, 1D/2D, GS1 DataBar Expanded, JAN, U.P.C., Aztec Code, Data Matrix, Micro QR Code, QR Code, 0 - 86080 lx, Wired
Tech Specs
Type
Built-in bar code reader
Scanner type
1D/2D
Linear (1D) barcodes supported
GS1 DataBar Expanded, JAN, U.P.C.
2D (matrix & stacked) barcodes supported
Aztec Code, Data Matrix, Micro QR Code, QR Code
Light levels (direct sunlight)
0 - 86080 lx
Connectivity technology
Wired
Standard interfaces
RS-232
Product colour
Black, Grey
Housing material
Glass, Metal
LED indicators
Yes
Built-in display
No
Power source type
AC
Power consumption (typical)
12 W
Power consumption (standby)
11 W
Input voltage
100 - 240 V
Input frequency
50/60 Hz
Width
292 mm
Depth
356 mm
Height
130 mm
Cables included
AC, RS-232
Operating temperature (T-T)
10 - 40 °C
Storage temperature (T-T)
-40 - 70 °C
Operating relative humidity (H-H)
5 - 95%
Sustainability certificates
RoHS
Harmonized System (HS) code
84716070
