Product Description
Product Description

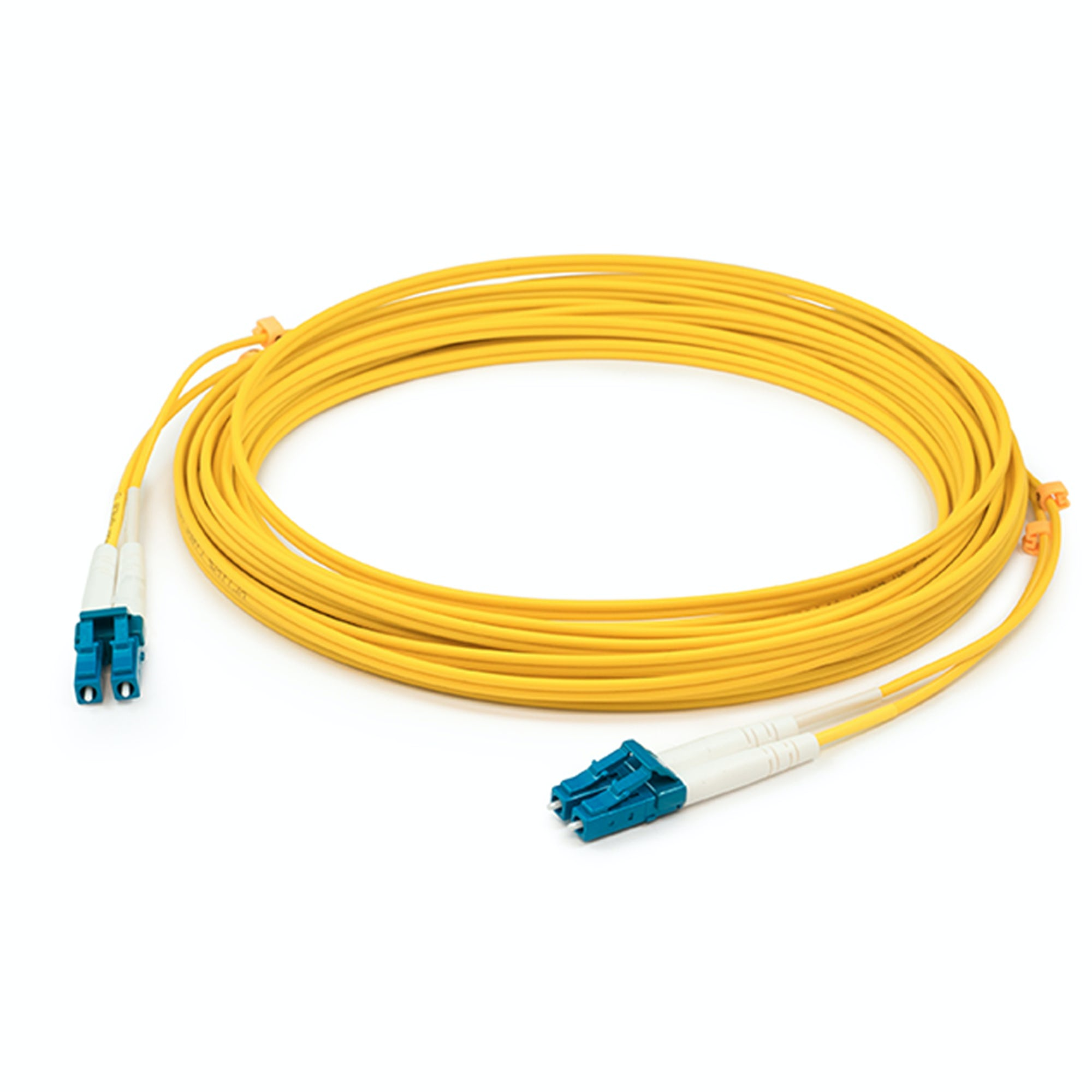

AddOn Networks ADD-ALC-LC-10MS9SMFLZ. Cable length: 10 m, Fibre optic type: OS2, Connector 1: LC, Connector 2: LC, Core diameter: 9 µm, Full duplex
Technical Spec
Technical Spec
Product Description
AddOn Networks ADD-ALC-LC-10MS9SMFLZ, 10 m, OS2, LC, LC
Tech Specs
Features
Cable length
10 m
Connector 1
LC
Connector 2
LC
Connector 1 gender
Male
Connector 2 gender
Male
Product colour
Yellow
Jacket material
Low smoke zero halogen (LSZH)
Fibre optic type
OS2
Full duplex
Yes
Core diameter
9 µm
Cladding diameter
125 µm
Fiber mode structure
Single-mode
Wavelengths supported
1310,1550 nm
Ethernet interface type
10 Gigabit Ethernet, 40 Gigabit Ethernet, 100 Gigabit Ethernet
Data transfer rate
100 Gbit/s
Insertion loss
0.35 dB
Return loss
30 dB
Compressive strength
10
Connector material
Ceramic
Sustainability
Doesn't contain
Halogen
Certificates
Compliance certificates
RoHS
Certification
CE, ISO/IEC 11801, TIA/EIA-568-C.3, TIA-604-5 (FOCIS-5), TIA/EIA-568-C.1, GR-409-CORE, ICEA S-83-596
Operational conditions
Operating temperature (T-T)
0 - 60 °C
Storage temperature (T-T)
-10 - 70 °C
Weight & dimensions
Cable diameter
1.6 mm
Packaging content
Quantity per pack
1 pc(s)
