Netgear ANT24501B-10000S network antenna 7 dBi Omni-directional antenna N-type
EAN:
0606449104936
The NETGEAR ANT24501B-10000S is a bundle containing 2 x 2.4 GHz (5 dBi gain) and 2 x 5 GHz (7 dBi gain) omni directional outdoor antennas, perfectly matched with the WND930 Dual Band High Power 802.11n Outdoor Access Point. The antennas have...
Product Description
Product Description

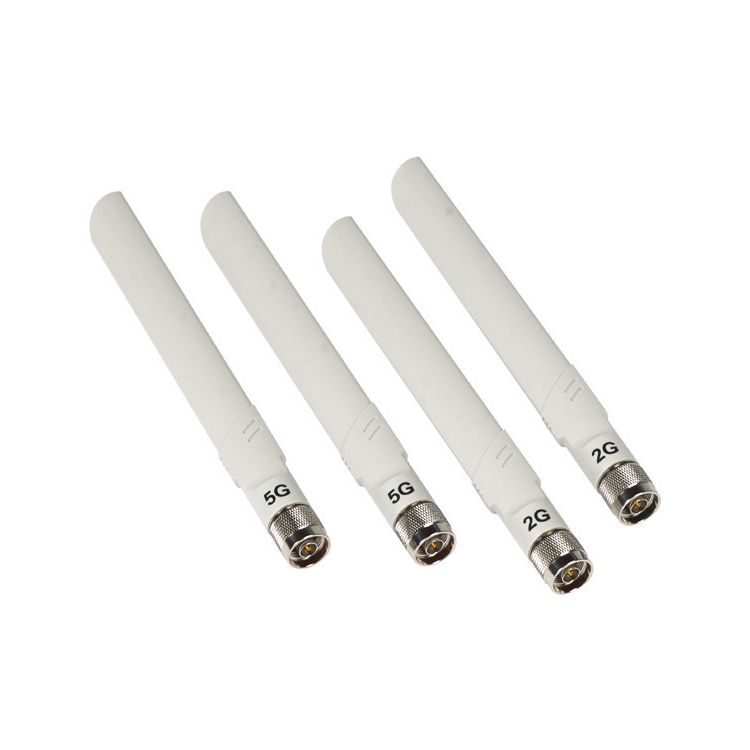

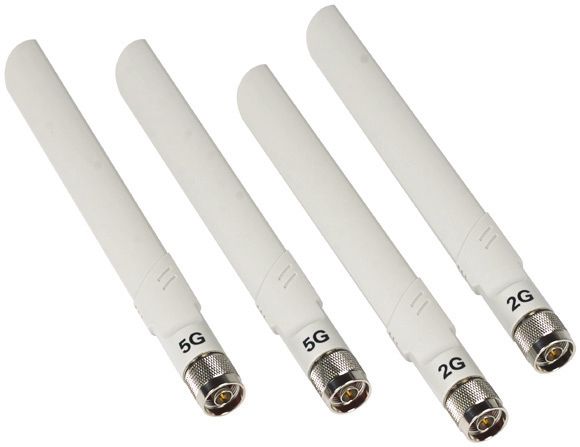

The NETGEAR ANT24501B-10000S is a bundle containing 2 x 2.4 GHz (5 dBi gain) and 2 x 5 GHz (7 dBi gain) omni directional outdoor antennas, perfectly matched with the WND930 Dual Band High Power 802.11n Outdoor Access Point. The antennas have N-type antenna connectors, and can operate in an outdoor environment. The package comes with 4 antennas and ready to be install to the NETGEAR WND930 Outdoor Access Point
Technical Spec
Technical Spec
Product Description
Netgear ANT24501B-10000S, 7 dBi, 2.4 - 2.5 / 4.9 - 5.85 GHz, IEEE 802.11a,IEEE 802.11b,IEEE 802.11g,IEEE 802.11n, 5 dBi, 7 dBi, 360°
Tech Specs
Performance
Antenna gain level (max)
7 dBi
Frequency band
2.4 - 2.5 / 4.9 - 5.85 GHz
Networking standards
IEEE 802.11a,IEEE 802.11b,IEEE 802.11g,IEEE 802.11n
Antenna gain (2.4 GHz)
5 dBi
Antenna gain (5 GHz)
7 dBi
Horizontal beam width
360°
Vertical beam width
11°
Features
Antenna type
Omni-directional antenna
Antenna connector type
N-type
Polarization
Vertical polarization
Maximum operating distance
1600 m
Purpose
Outdoor
Product colour
White
Weight & dimensions
Width
215 mm
Depth
22 mm
Height
11 mm
Weight
200 g
Packaging content
Quantity
4
