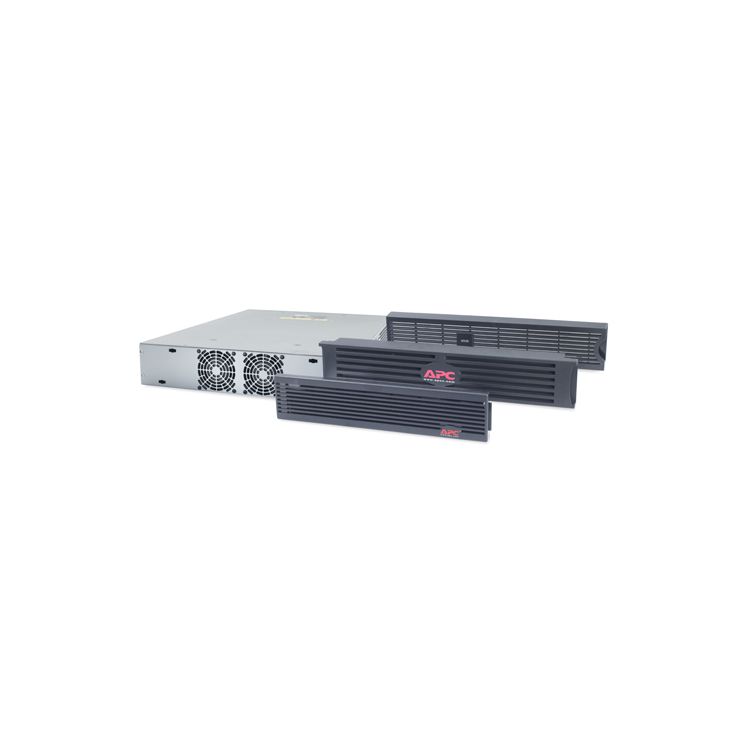

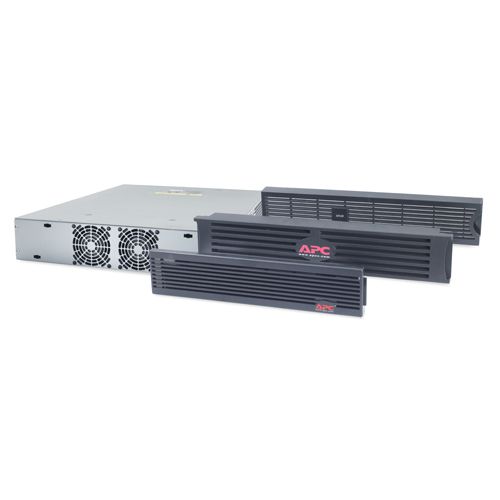

APC Step-Down Transformer RM 2U power distribution unit (PDU) Black
EAN:
0731304249153
APC Step-Down Transformer RM 2U. Product colour: Black. Input connection type: Hard Wire 3-wire (2PH + G), Output connections: 1x Hard Wire 3-wire (H N + G). Nominal input voltage: 208 V, Nominal output voltage: 120 V, Load capacity: 5000 VA....
Product Description
Product Description
APC Step-Down Transformer RM 2U. Product colour: Black. Input connection type: Hard Wire 3-wire (2PH + G), Output connections: 1x Hard Wire 3-wire (H N + G). Nominal input voltage: 208 V, Nominal output voltage: 120 V, Load capacity: 5000 VA. Certification: CSA,UL 1778,UL Listed. Width: 445 mm, Depth: 610 mm, Height: 89 mm
Technical Spec
Technical Spec
Product Description
APC Step-Down Transformer RM 2U, Black, Hard Wire 3-wire (2PH + G), 1x Hard Wire 3-wire (H N + G), 208 V, 120 V, 5000 VA
Tech Specs
Design
Product colour
Black
Ports & interfaces
Input connection type
Hard Wire 3-wire (2PH + G)
Output connections
1x Hard Wire 3-wire (H N + G)
Power
Nominal input voltage
208 V
Nominal output voltage
120 V
Load capacity
5000 VA
Maximum input current per phase
26 A
Certificates
Certification
CSA,UL 1778,UL Listed
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-25 - 65 °C
Operating relative humidity (H-H)
0 - 95%
Storage relative humidity (H-H)
0 - 95%
Weight & dimensions
Width
445 mm
Depth
610 mm
Height
89 mm
Weight
43.2 kg
Packaging data
Package weight
50 kg
Package width
622 mm
Package depth
953 mm
Package height
254 mm
