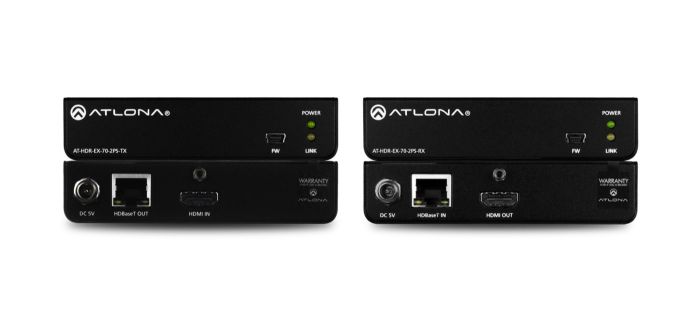

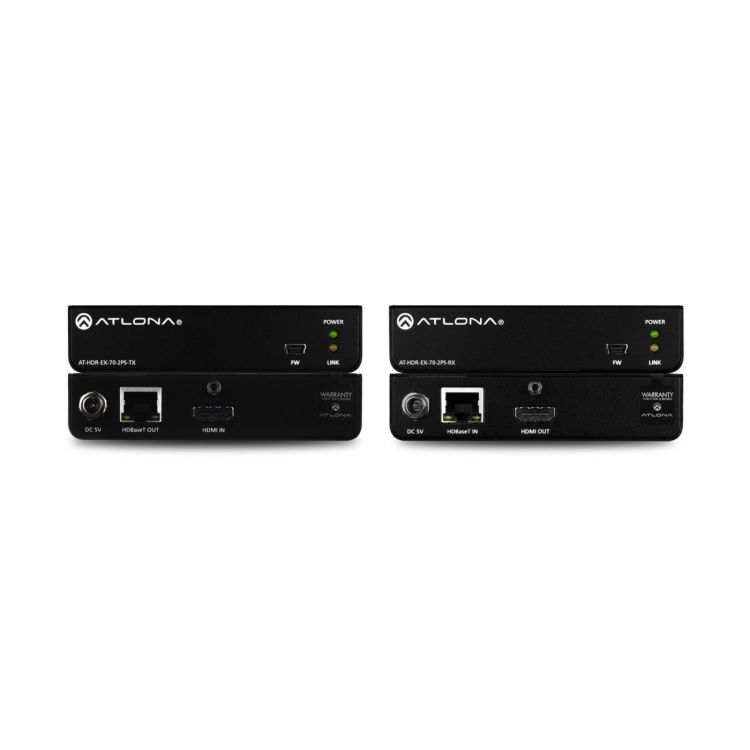

Atlona AT-HDR-EX-70-2PS AV extender AV transmitter & receiver
EAN:
8716065018752
Atlona AT-HDR-EX-70-2PS. Type: AV transmitter & receiver, Maximum resolution: 4096 x 2160 pixels, Maximum transfer distance: 70 m. Connectivity technology: Wired, USB connector type: Mini-USB B. AC input voltage: 100 - 240 V, AC input frequency:...
Product Description
Product Description
Atlona AT-HDR-EX-70-2PS. Type: AV transmitter & receiver, Maximum resolution: 4096 x 2160 pixels, Maximum transfer distance: 70 m. Connectivity technology: Wired, USB connector type: Mini-USB B. AC input voltage: 100 - 240 V, AC input frequency: 50 - 60 Hz, Operating voltage: 5 V. Receiver dimensions (WxDxH): 109 x 76 x 25 mm, Receiver weight: 220 g, Transmitter dimensions (WxDxH): 109 x 76 x 25 mm
Technical Spec
Technical Spec
Product Description
Atlona AT-HDR-EX-70-2PS, 4096 x 2160 pixels, AV transmitter & receiver, 70 m, Wired, HDCP
Tech Specs
Type
AV transmitter & receiver
Maximum resolution
4096 x 2160 pixels
Maximum transfer distance
70 m
Audio system
Multichannel
Audio output channels
7.1 channels
Supported video modes
480i, 480p, 576i, 576p, 720p, 1080i, 1080p
Supported graphics resolutions
640 x 480 (VGA), 800 x 600 (SVGA), 1024 x 768 (XGA), 1280 x 1024 (SXGA), 1280 x 768 (WXGA), 1280 x 800 (WXGA), 1360 x 768 (WXGA), 1376 x 768, 1400 x 1050 (SXGA+), 1440 x 900, 1600 x 1200 (UXGA), 1600 x 900, 1680 x 1050 (WSXGA+), 1920 x 1200 (WUXGA), 2048 x 1536 (QXGA), 2560 x 1600 (WQXGA), 2560 x 2048
Bandwidth
18 Gbit/s
HDCP
Yes
Colour depth
12 bit
Consumer Electronics Control (CEC) support
Yes
Certification
CE, FCC
Connectivity technology
Wired
RJ-45 input ports
1
RJ-45 output ports
1
HDBaseT port
Yes
HDMI in
1
Number of HDMI outputs
1
USB ports quantity
2
USB connector type
Mini-USB B
DC-in jack
Yes
AC input voltage
100 - 240 V
AC input frequency
50 - 60 Hz
Operating voltage
5 V
Power consumption (transmitter) (max)
4 W
Power consumption (receiver) (max)
5.9 W
Operating temperature (T-T)
0 - 50 °C
Storage temperature (T-T)
-20 - 60 °C
Operating relative humidity (H-H)
20 - 90%
Receiver dimensions (WxDxH)
109 x 76 x 25 mm
Receiver weight
220 g
Transmitter dimensions (WxDxH)
109 x 76 x 25 mm
Transmitter weight
220 g
