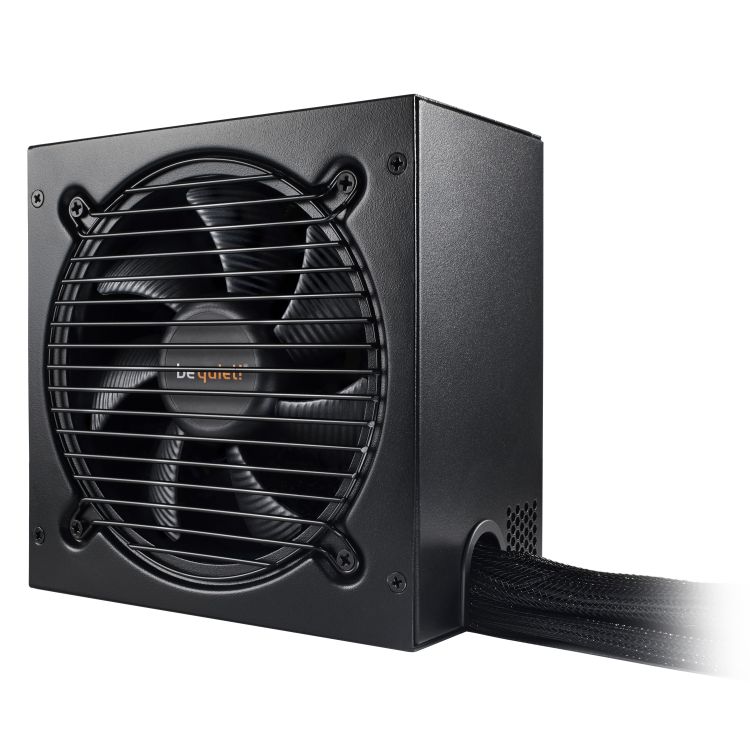

be quiet! Pure Power 11 350W power supply unit 20+4 pin ATX ATX Black
EAN:
4260052186329
be quiet! Pure Power 11 350W. Total power: 350 W, AC input voltage: 100 - 240 V, Peak power: 400 W. Motherboard power connector: 20+4 pin ATX, Motherboard power cable length: 45 cm, SATA power cable length: 450,600,750 mm. Purpose: PC, Power...
Product Description
Product Description
- Pure Power 11 350W is certified 80 PLUS Bronze with an efficiency rating of up to 87% – a truly outstanding level for this class of PSU. The most compelling benefit: lower power consumption and consequently lower costs, and cooler, quieter operation.
- Pure Power 11 offers 350W of continuous power with two independent 12V rails for signal stability and one PCI express connector for GPU card support.
- The silence-optimized 120mm be quiet! fan is thermally governed to strike the best balance between effective cooling and quietness. Airflow-optimized fan blades reduce turbulence, enabling best-in-class quiet functionality and the almost inaudible operation that be quiet! is famous for.
- Pure Power 350W is equipped with high-quality sleeved cables that simplify component installation, increase airflow and improve cooling. The All-in-one cable has a convenient easy-plug HDD connector.
be quiet! Pure Power 11 350W. Total power: 350 W, AC input voltage: 100 - 240 V, Peak power: 400 W. Motherboard power connector: 20+4 pin ATX, Motherboard power cable length: 45 cm, SATA power cable length: 450,600,750 mm. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Bronze. Product colour: Black, Fan diameter: 12 cm, Number of fans: 1 fan(s). Width: 150 mm, Depth: 150 mm, Height: 86 mm
Technical Spec
Technical Spec
Product Description
be quiet! Pure Power 11 350W, 350 W, 100 - 240 V, 400 W, 50 - 60 Hz, 6 A, Active
Tech Specs
Total power
350 W
AC input voltage
100 - 240 V
Peak power
400 W
AC input frequency
50 - 60 Hz
Input current
6 A
Power factor
0.99
Power Factor Correction (PFC) type
Active
Combined power (+3.3V)
110 W
Combined power (+12V)
336 W
Combined power (+5V)
110 W
Combined power (-12V)
3.6 W
Combined power (+5Vsb)
12.5 W
Max output current (+3.3V)
21 A
Max output current (+12V1)
18 A
Max output current (+12V2)
18 A
Max output current (+5V)
15 A
Max output current (-12V)
0.3 A
Max output current (+5Vsb)
2.5 A
Hold time
17 ms
Efficiency
87%
Power protection features
Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage

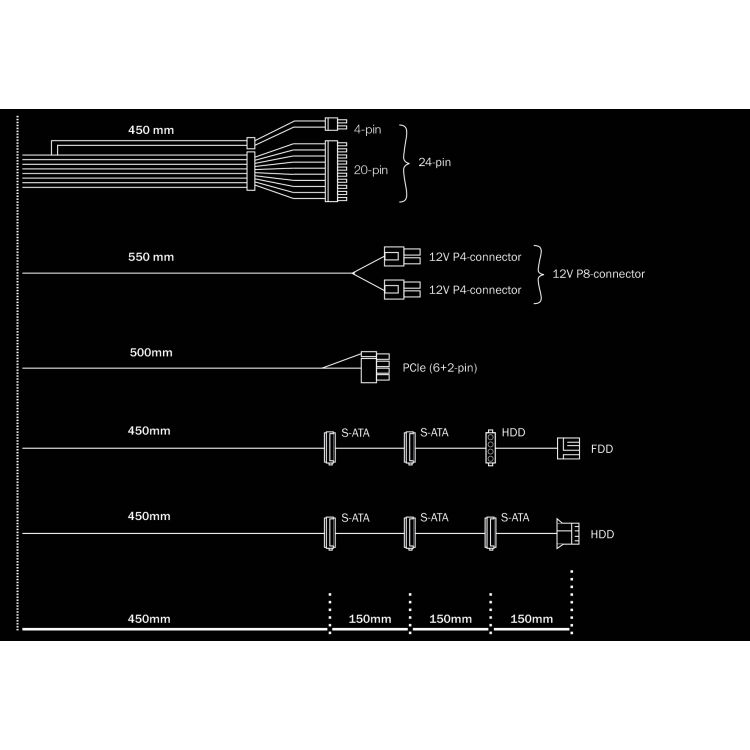

Motherboard power connector
20+4 pin ATX
Motherboard power cable length
45 cm
Number of SATA power connectors
5
Number of PATA power connectors
2
SATA power cable length
450,600,750 mm
PCI Express power connectors (6+2 pin)
1
PCI Express power cable length
50 cm
CPU power connector (4+4 pin)
Yes
CPU power cable length
55 cm
Floppy disk drive connector
Yes
Cabling type
Non-Modular
Purpose
PC
Power supply unit (PSU) form factor
ATX
80 PLUS certification
80 PLUS Bronze
ATX version
2.4
Bearing technology
Rifle
Safety
CE, TÜV, CU
Certification
ErP, WEEE
Product colour
Black
Fan diameter
12 cm
Number of fans
1 fan(s)
Width
150 mm
Depth
150 mm
Height
86 mm
Weight
1.8 kg
Manual
Yes
Package width
210 mm
Package depth
240 mm
Package height
96 mm
Package weight
2.06 kg
Package type
Box
Sustainability certificates
RoHS, ENERGY STAR
Master (outer) case width
326 mm
Master (outer) case length
514 mm
Master (outer) case height
241 mm
Master (outer) case gross weight
13.6 kg
Harmonized System (HS) code
84733020
Products per master (outer) case
6 pc(s)
Screws included
Yes
Cable ties included
Yes

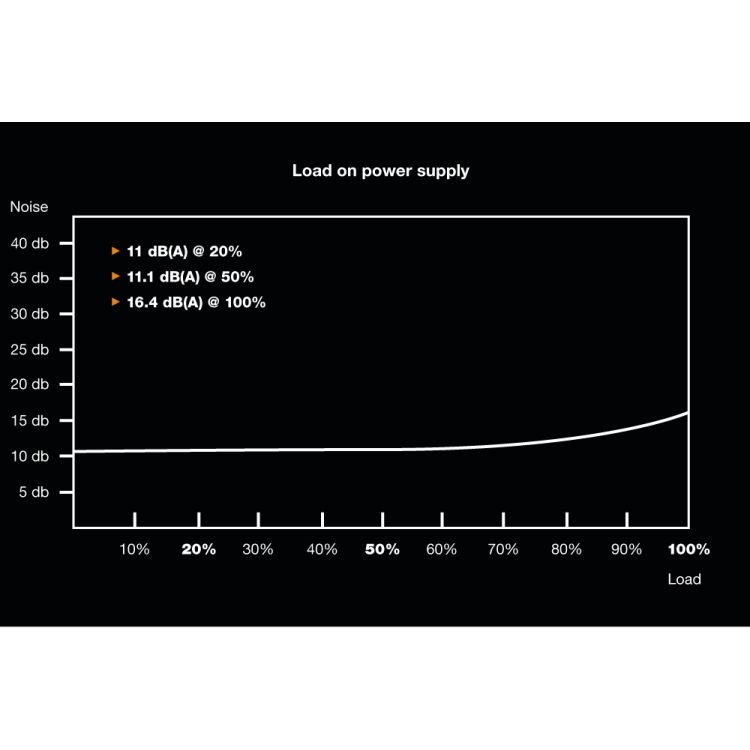

Noise level (silent mode, <30%)
11 dB
Noise level (quiet mode, 50%)
11.1 dB
Noise level (full-load mode, 100%)
16.4 dB
