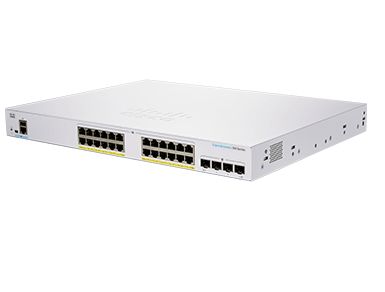

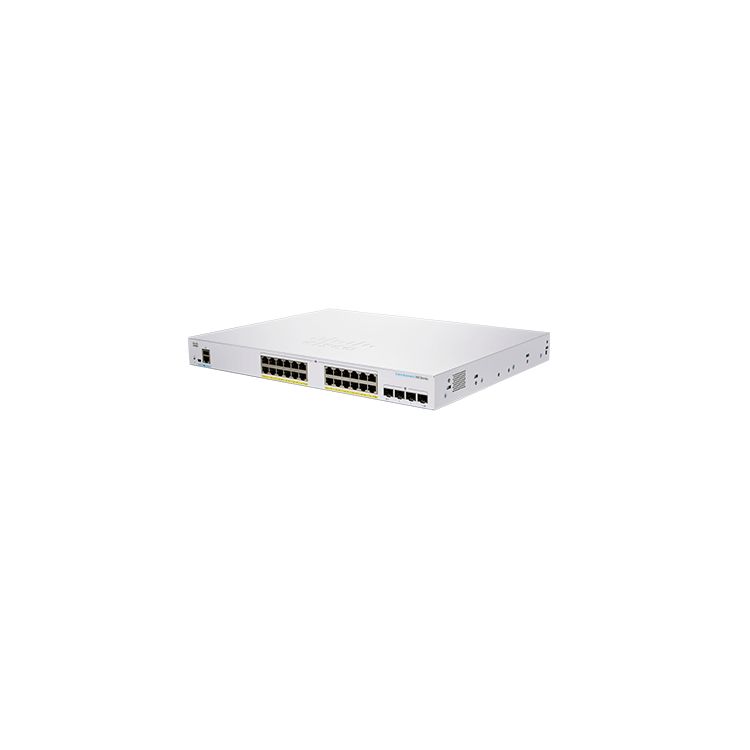

Cisco CBS350-24FP-4X-EU network switch Managed L2/L3 Gigabit Ethernet (10/100/1000) Silver
EAN:
0889728295673
Cisco CBS350-24FP-4X-EU. Switch type: Managed, Switch layer: L2/L3. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 24, USB 2.0 ports quantity: 1. MAC address table: 16000...
Product Description
Product Description
Cisco CBS350-24FP-4X-EU. Switch type: Managed, Switch layer: L2/L3. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 24, USB 2.0 ports quantity: 1. MAC address table: 16000 entries. Networking standards: IEEE 802.1D, IEEE 802.1w, IEEE 802.1s, IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE.... Rack mounting
Technical Spec
Technical Spec
Product Description
Cisco CBS350-24FP-4X-EU, Managed, L2/L3, Gigabit Ethernet (10/100/1000), Rack mounting
Tech Specs
Switch type
Managed
Switch layer
L2/L3
Quality of Service (QoS) support
Yes
Web-based management
Yes
Cloud-managed
Yes
ARP inspection
Yes
Configuring Location Settings (CLI)
Yes
MIB support
Y
Basic switching RJ-45 Ethernet ports quantity
24
Basic switching RJ-45 Ethernet ports type
Gigabit Ethernet (10/100/1000)
SFP+ module slots quantity
4
USB 2.0 ports quantity
1
Networking standards
IEEE 802.1D, IEEE 802.1w, IEEE 802.1s, IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3ad
10G support
Yes
Port mirroring
Yes
Flow control support
Yes
Link aggregation
Yes
Broadcast storm control
Yes
Auto MDI/MDI-X
Yes
Spanning tree protocol
Yes
Head-of-line (HOL) blocking
Yes
Ethernet LAN data rates
10,100,1000 Mbit/s
VLAN support
Yes
Number of VLANs
4094
MAC address table
16000 entries
Jumbo frames support
Yes
Jumbo frames
9000
DHCP features
DHCP relay, DHCP server, DHCPv6 client
Access Control List (ACL)
Yes
Access Control List (ACL) rules
1024
IGMP snooping
Yes
Security algorithms
HTTPS, SSH, SSL/TLS
MAC address filtering
Yes
SSH/SSL support
Yes
Password protection
Yes
Multicast support
Yes
Management protocols
SNMP
Rack mounting
Yes
Product colour
Silver
Reset button
Yes
LED indicators
Yes
Built-in processor
Yes
Processor frequency
800 MHz
Internal memory
512 MB
Flash memory
256 MB
Firmware upgradeable
Yes
Power supply included
Yes
Operating temperature (T-T)
-5 - 50 °C
Storage temperature (T-T)
-25 - 70 °C
Operating relative humidity (H-H)
10 - 90%
Storage relative humidity (H-H)
10 - 90%
Harmonized System (HS) code
85176990
