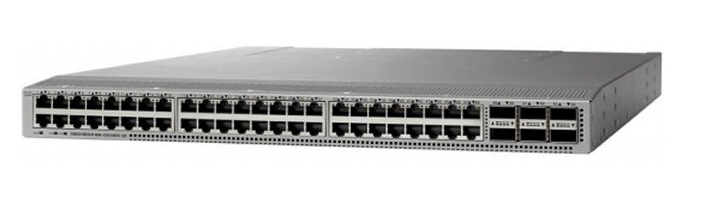

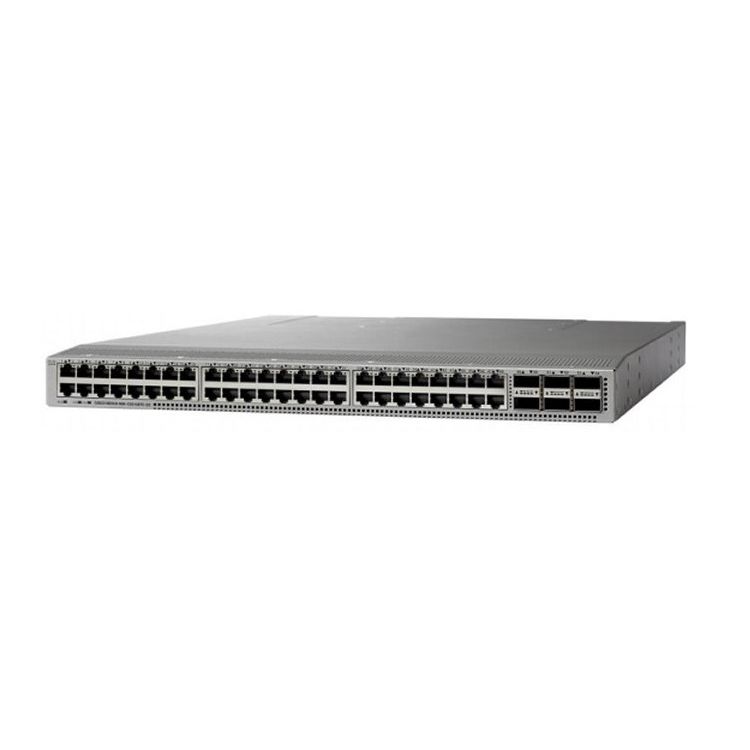

Cisco Nexus 9300-FX Managed L2/L3 10G Ethernet (100/1000/10000) 1U Grey
Cisco Nexus 9300-FX. Switch type: Managed, Switch layer: L2/L3. Basic switching RJ-45 Ethernet ports type: 10G Ethernet (100/1000/10000), Basic switching RJ-45 Ethernet ports quantity: 48, USB 2.0 ports quantity: 1. MAC address table: 512000...
Product Description
Product Description
0
Cisco Nexus 9300-FX. Switch type: Managed, Switch layer: L2/L3. Basic switching RJ-45 Ethernet ports type: 10G Ethernet (100/1000/10000), Basic switching RJ-45 Ethernet ports quantity: 48, USB 2.0 ports quantity: 1. MAC address table: 512000 entries, Switching capacity: 2160 Gbit/s. Rack mounting, Form factor: 1U
Cisco Nexus 9300-FX. Switch type: Managed, Switch layer: L2/L3. Basic switching RJ-45 Ethernet ports type: 10G Ethernet (100/1000/10000), Basic switching RJ-45 Ethernet ports quantity: 48, USB 2.0 ports quantity: 1. MAC address table: 512000 entries, Switching capacity: 2160 Gbit/s. Rack mounting, Form factor: 1U
Technical Spec
Technical Spec
Product Description
Cisco Nexus 9300-FX, Managed, L2/L3, 10G Ethernet (100/1000/10000), Rack mounting, 1U
Tech Specs
Management features
Switch type
Managed
Switch layer
L2/L3
Web-based management
Yes
MIB support
Y
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity
48
Basic switching RJ-45 Ethernet ports type
10G Ethernet (100/1000/10000)
Installed SFP modules quantity
0
Installed SFP+ modules quantity
0
QSFP+ module slots quantity
6
Fiber optic connector
QSFP28
USB 2.0 ports quantity
1
Network
10G support
Yes
Spanning tree protocol
Yes
VLAN support
Yes
Number of VLANs
3967
Data transmission
MAC address table
512000 entries
Switching capacity
2160 Gbit/s
Throughput
850 Mpps
Packet buffer memory
40 MB
Security
Access Control List (ACL)
Yes
Access Control List (ACL) egress
2000
Access Control List (ACL) ingress
5000
IGMP snooping
Yes
Multicast features
Multicast support
Yes
Protocols
Routing protocols
EIGRP, HSRP, OSPF, RIP-2
Design
Rack mounting
Yes
Form factor
1U
Product colour
Grey
Airflow direction
Back-to-front airflow, Front-to-back airflow
Number of fans
4 fan(s)
Performance
Built-in processor
Yes
Internal memory
24000 MB
Flash memory
128000 MB
Noise level
77.8 dB
Mean time between failures (MTBF)
319790 h
Power
AC input voltage
100 - 240 V
AC input frequency
50/60 Hz
Power consumption (typical)
276 W
Power consumption (max)
460 W
Power over Ethernet (PoE)
Power over Ethernet (PoE)
No
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-40 - 70 °C
Operating relative humidity (H-H)
5 - 95%
Storage relative humidity (H-H)
5 - 95%
Operating altitude
0 - 4000 m
Weight & dimensions
Width
439 mm
Depth
571 mm
Height
44 mm
Certificates
Certification
UL 60950-1 Second Edition, CAN/CSA-C22.2 No. 60950-1 Second Edition, EN 60950-1 Second Edition, IEC 60950-1 Second Edition, AS/NZS 60950-1, GB4943
