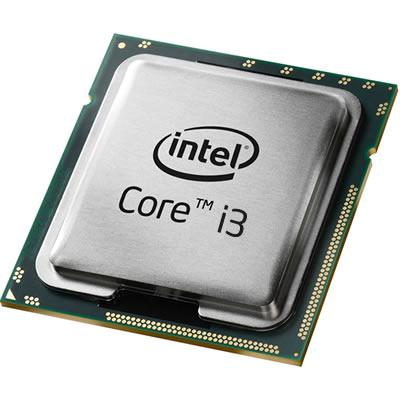

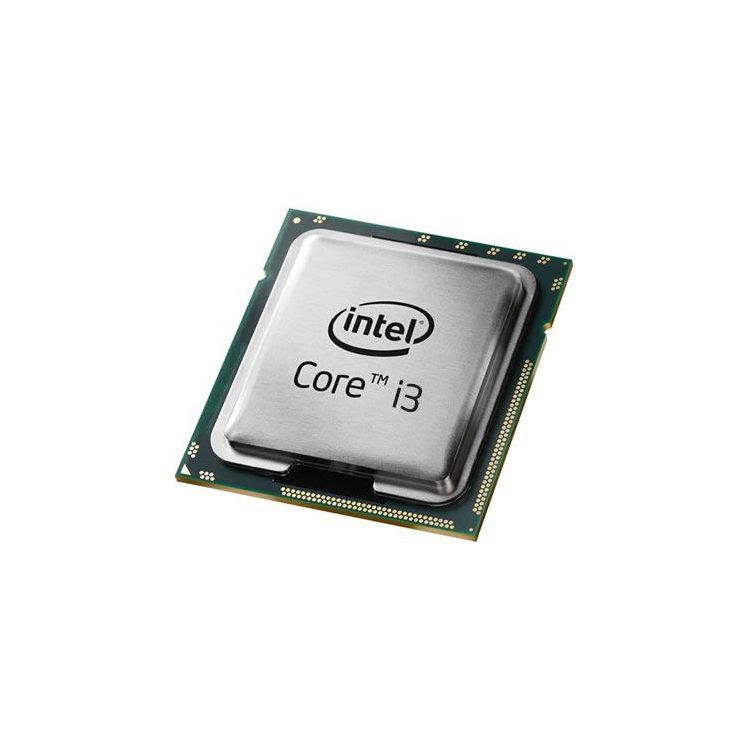

Intel Core i3-7100 processor 3.9 GHz 3 MB Smart Cache
EAN:
8592978065782
Intel Core i3-7100. Processor family: Intel® Core™ i3, Processor socket: LGA 1151 (Socket H4), Processor lithography: 14 nm. Memory channels: Dual-channel, Maximum internal memory supported by processor: 64 GB, Memory types supported by...
Product Description
Product Description
Intel Core i3-7100. Processor family: Intel® Core™ i3, Processor socket: LGA 1151 (Socket H4), Processor lithography: 14 nm. Memory channels: Dual-channel, Maximum internal memory supported by processor: 64 GB, Memory types supported by processor: DDR4-SDRAM, DDR3L-SDRAM. On-board graphics card model: Intel® HD Graphics 630, Maximum on-board graphics card memory: 64 GB, On-board graphics card base frequency: 350 MHz. Market segment: Desktop, PCI Express configurations: 1x16, 2x8, 1x8+2x4, Supported instruction sets: SSE4.1, SSE4.2, AVX 2.0. Package type: Retail box
Technical Spec
Technical Spec
Product Description
Intel Core i3-7100, Intel® Core™ i3, LGA 1151 (Socket H4), 14 nm, Intel, i3-7100, 3.9 GHz
Tech Specs
Processor
Processor family
Intel® Core™ i3
Processor cores
2
Processor socket
LGA 1151 (Socket H4)
Processor lithography
14 nm
Box
No
Cooler included
No
Processor manufacturer
Intel
Processor model
i3-7100
Processor base frequency
3.9 GHz
Processor operating modes
64-bit
Processor generation
7th gen Intel® Core™ i3
Component for
PC
Processor series
Intel Core i3-7100 Desktop Series
Processor threads
4
System bus rate
8 GT/s
Processor cache
3072 KB
Processor cache type
Smart Cache
Thermal Design Power (TDP)
51 W
Compatible chipsets
Intel® B150, Intel® H110, Intel® H170, Intel Q150, Intel® Q170, Intel® Z170
Stepping
S0
Bus type
DMI3
Number of QPI links
0
Processor codename
Kaby Lake
Processor code
SR35C
Processor ARK ID
97455
Memory
Memory channels
Dual-channel
Maximum internal memory supported by processor
64 GB
Memory types supported by processor
DDR4-SDRAM, DDR3L-SDRAM
Memory clock speeds supported by processor
1333,1600,2133,2400 MHz
Memory voltage supported by processor
1.35 V
ECC
Yes
Graphics
On-board graphics card
Yes
On-board graphics card model
Intel® HD Graphics 630
Maximum on-board graphics card memory
64 GB
On-board graphics card base frequency
350 MHz
On-board graphics card dynamic frequency (max)
1100 MHz
Number of displays supported (on-board graphics)
3
On-board graphics card 4K support
Yes
On-board graphics card DirectX version
12.0
On-board graphics card OpenGL version
4.5
On-board graphics card maximum resolution (DisplayPort)
4096 x 2304 pixels
On-board graphics card maximum resolution (eDP - Integrated Flat Panel)
4096 x 2304 pixels
On-board graphics card maximum resolution (HDMI)
4096 x 2304 pixels
On-board graphics card refresh rate at maximum resolution (DisplayPort)
60 Hz
On-board graphics card refresh rate at maximum resolution (eDP - Integrated Flat Panel)
60 Hz
On-board graphics card refresh rate at maximum resolution (HDMI)
24 Hz
On-board graphics card ID
5912
Features
Execute Disable Bit
Yes
Idle States
Yes
Thermal Monitoring Technologies
Yes
Market segment
Desktop
Maximum number of PCI Express lanes
16
PCI Express slots version
3.0
PCI Express configurations
1x16, 2x8, 1x8+2x4
Supported instruction sets
SSE4.1, SSE4.2, AVX 2.0
Scalability
1S
CPU configuration (max)
1
Embedded options available
No
Thermal solution specification
PCG 2015C
PCI Express CEM revision
3.0
Export Control Classification Number (ECCN)
5A992C
Commodity Classification Automated Tracking System (CCATS)
G077159
Processor special features
Intel® Hyper Threading Technology (Intel® HT Technology)
Yes
Intel® Identity Protection Technology (Intel® IPT)
Yes
Intel® Turbo Boost Technology
No
Intel® Quick Sync Video Technology
Yes
Intel® InTru™ 3D Technology
Yes
Intel® Clear Video HD Technology (Intel® CVT HD)
Yes
Intel® AES New Instructions (Intel® AES-NI)
Yes
Enhanced Intel SpeedStep Technology
Yes
Intel Trusted Execution Technology
No
Intel® Memory Protection Extensions (Intel® MPX)
Yes
Intel® Transactional Synchronization Extensions
No
Intel Enhanced Halt State
Yes
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)
Yes
Intel VT-x with Extended Page Tables (EPT)
Yes
Intel® Secure Key
Yes
Intel TSX-NI
No
Intel Stable Image Platform Program (SIPP)
No
Intel® OS Guard
Yes
Intel Clear Video Technology
Yes
Intel Software Guard Extensions (Intel SGX)
Yes
Intel 64
Yes
Intel Identity Protection Technology version
1.00
Intel Secure Key Technology version
1.00
Intel Stable Image Platform Program (SIPP) version
0.00
Intel Virtualization Technology (VT-x)
Yes
Intel Virtualization Technology for Directed I/O (VT-d)
Yes
Intel TSX-NI version
0.00
Conflict-Free processor
Yes
Intel® Optane™ Memory Ready
Yes
Intel® Boot Guard
Yes
Intel® vPro™ Platform Eligibility
No
Operational conditions
Tjunction
100 °C
Technical details
Product type
Processor
Supported memory types
DDR4-SDRAM, DDR3L-SDRAM
Maximum graphics card memory
64 GB
Logistics data
Harmonized System (HS) code
8542310001
Packaging data
Package type
Retail box
Weight & dimensions
Processor package size
37.5 x 37.5 mm
Other features
Maximum internal memory
65536 MB
Video decoding
Yes
Generation
7th Generation
Bus bandwidth
8
Bus type units
GT/s
Launch date
Q1'17
Maximum resolution & refresh rate (DisplayPort)
4096x2304@60Hz
Maximum resolution & refresh rate (HDMI)
4096x2304@24Hz
Maximum resolution & refresh rate (Integrated Flat Panel)
4096x2304@60Hz
Status
Discontinued
Maximum memory
64 GB
Processor brand name
7th Gen Intel Core i3 processors
Last change
63903513
Product family
7th Generation Intel Core i3 Processors
Bus speed
8 GT/s
Processor ID
0x5912
