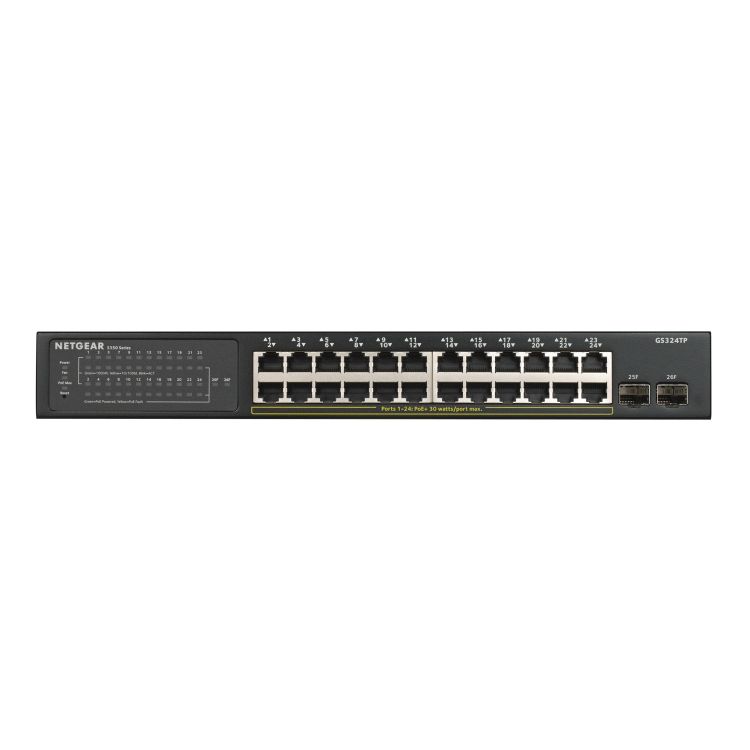

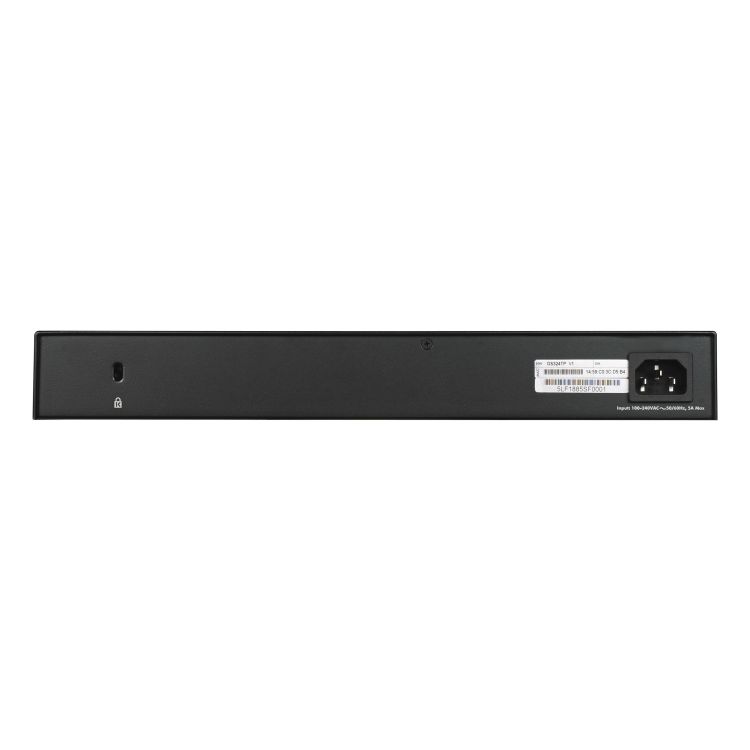

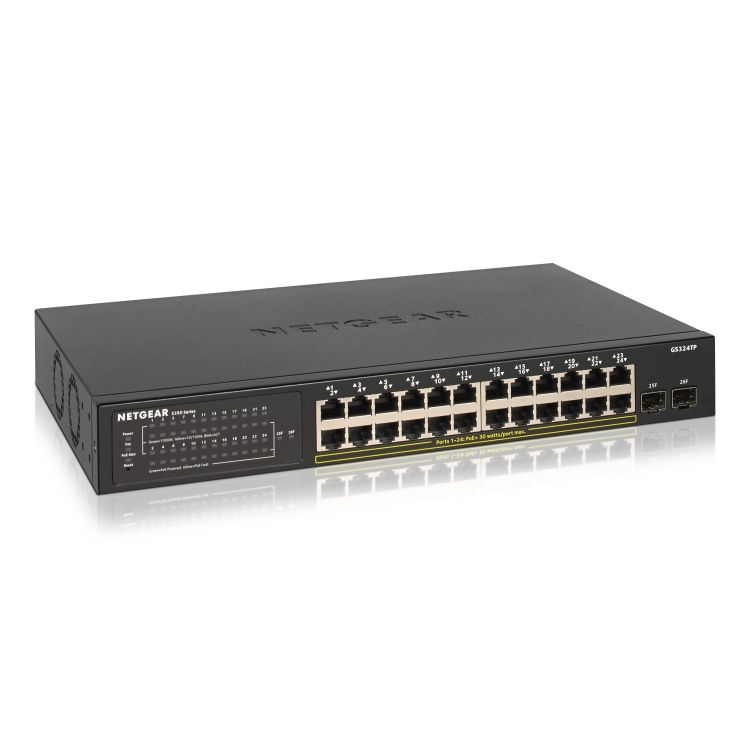

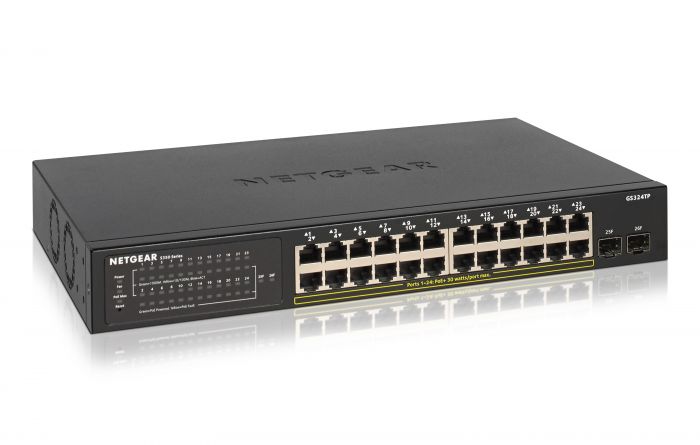

NETGEAR GS324TP Managed L2/L3/L4 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black
EAN:
0606449135626
NETGEAR GS324TP. Switch type: Managed, Switch layer: L2/L3/L4. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 24. Full duplex. MAC address table: 16000 entries, Switching...
Product Description
Product Description
0
NETGEAR GS324TP. Switch type: Managed, Switch layer: L2/L3/L4. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 24. Full duplex. MAC address table: 16000 entries, Switching capacity: 52 Gbit/s. Networking standards: IEEE 802.3at, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE.... Power connector: AC-in jack. Power over Ethernet (PoE). Rack mounting
NETGEAR GS324TP. Switch type: Managed, Switch layer: L2/L3/L4. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 24. Full duplex. MAC address table: 16000 entries, Switching capacity: 52 Gbit/s. Networking standards: IEEE 802.3at, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE.... Power connector: AC-in jack. Power over Ethernet (PoE). Rack mounting
Technical Spec
Technical Spec
Product Description
NETGEAR GS324TP, Managed, L2/L3/L4, Gigabit Ethernet (10/100/1000), Full duplex, Power over Ethernet (PoE), Rack mounting
Tech Specs
Management features
Switch type
Managed
Switch layer
L2/L3/L4
Quality of Service (QoS) support
Yes
ARP inspection
Yes
Virtual Cable Test (VCT)
Yes
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity
24
Basic switching RJ-45 Ethernet ports type
Gigabit Ethernet (10/100/1000)
Installed SFP modules quantity
0
Installed SFP+ modules quantity
0
SFP module slots quantity
2
Power connector
AC-in jack
Network
Networking standards
IEEE 802.3at, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3az, IEEE 802.3x
Port mirroring
Yes
Full duplex
Yes
Flow control support
Yes
Link aggregation
Yes
Broadcast storm control
Yes
Rate limiting
Yes
Spanning tree protocol
Yes
Auto-negotiation
Yes
VLAN support
Yes
Virtual LAN features
Private VLAN, Voice VLAN, Port-based VLAN
Number of VLANs
256
Data transmission
MAC address table
16000 entries
Switching capacity
52 Gbit/s
Store-and-forward
Yes
Jumbo frames support
Yes
Security
DHCP features
DHCP client
Access Control List (ACL)
Yes
IGMP snooping
Yes
Loop protection
Yes
DoS attack prevention
Yes
ARP attack prevention
Yes
Design
Rack mounting
Yes
Product colour
Black
LED indicators
Yes
Number of fans
2 fan(s)
Performance
Noise level
32.8 dB
Firmware upgradeable
Yes
Buffer size
512 KB
Power
AC input voltage
100 - 240 V
AC input frequency
50 - 60 Hz
Input current
5 A
Power consumption (max)
229.9 W
Power over Ethernet (PoE)
Power over Ethernet (PoE)
Yes
Power over Ethernet plus (PoE+) ports quantity
24
Total Power over Ethernet (PoE) budget
190 W
Operational conditions
Operating temperature (T-T)
0 - 45 °C
Weight & dimensions
Width
330 mm
Depth
206 mm
Height
43 mm
Weight
2.69 kg
Packaging content
Cables included
AC
Packaging data
Mounting brackets included
Yes
Package type
Box
Package width
268 mm
Package depth
452 mm
Package height
88 mm
Package weight
3.97 kg
Logistics data
Master (outer) case width
293 mm
Master (outer) case length
471 mm
Master (outer) case height
498 mm
Harmonized System (HS) code
85176990
Master (outer) case gross weight
20.9 kg
Products per master (outer) case
5 pc(s)
