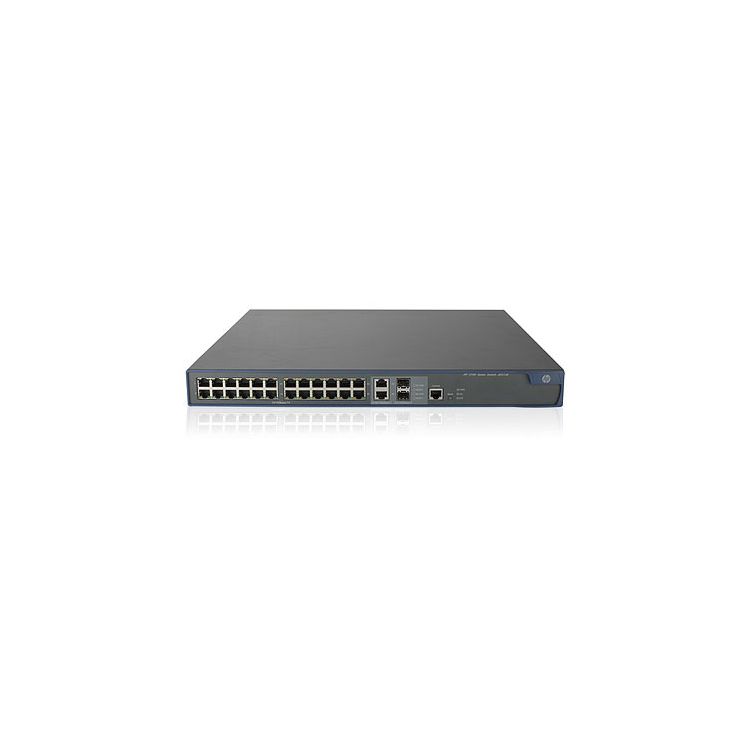

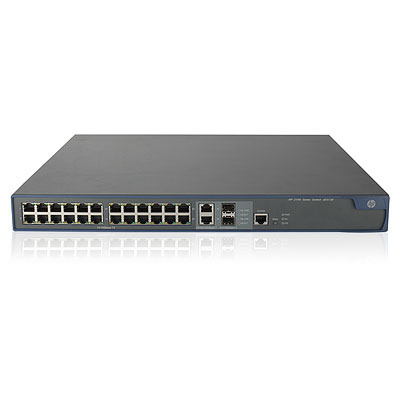

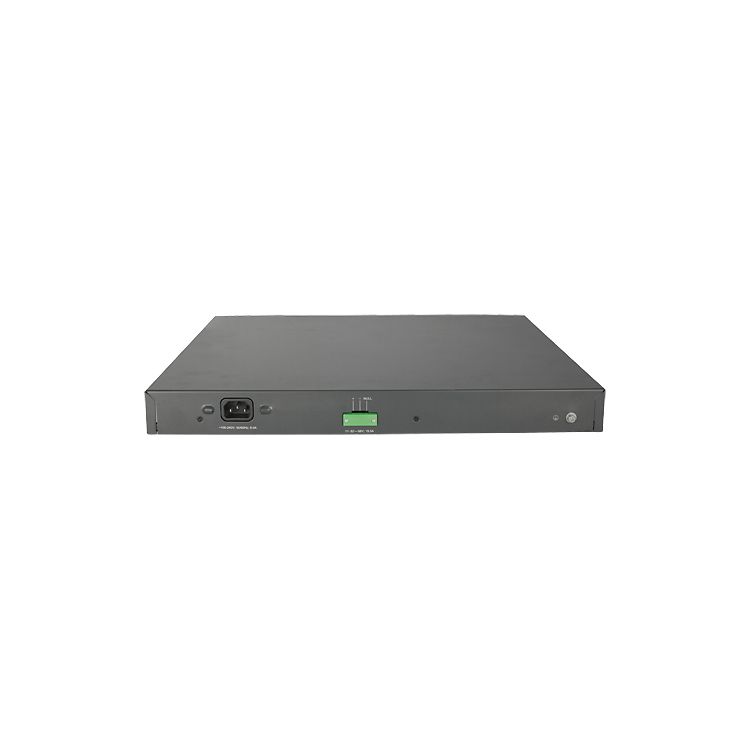

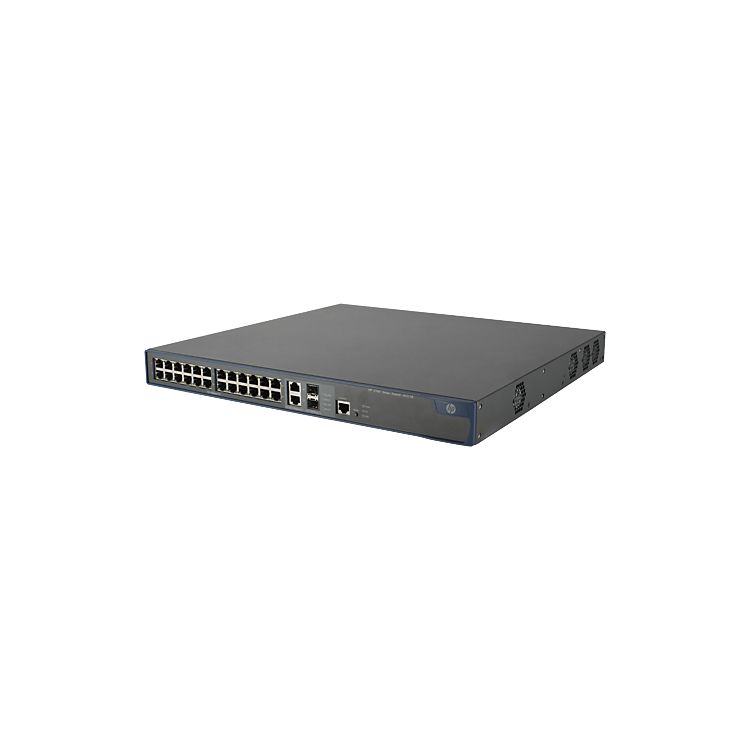

HPE 3100-24-PoE v2 EI Switch Managed L2 Fast Ethernet (10/100) Power over Ethernet (PoE) 1U Black
EAN:
0887111072030
HPE 3100-24-PoE v2 EI Switch. Switch type: Managed, Switch layer: L2. Basic switching RJ-45 Ethernet ports type: Fast Ethernet (10/100), Basic switching RJ-45 Ethernet ports quantity: 26, Console port: RJ-45. Full duplex. MAC address table: 8192...
Product Description
Product Description
0
HPE 3100-24-PoE v2 EI Switch. Switch type: Managed, Switch layer: L2. Basic switching RJ-45 Ethernet ports type: Fast Ethernet (10/100), Basic switching RJ-45 Ethernet ports quantity: 26, Console port: RJ-45. Full duplex. MAC address table: 8192 entries, Switching capacity: 8.8 Gbit/s. Networking standards: IEEE 802.3, IEEE 802.3af, IEEE 802.3u. Power over Ethernet (PoE). Rack mounting, Form factor: 1U
HPE 3100-24-PoE v2 EI Switch. Switch type: Managed, Switch layer: L2. Basic switching RJ-45 Ethernet ports type: Fast Ethernet (10/100), Basic switching RJ-45 Ethernet ports quantity: 26, Console port: RJ-45. Full duplex. MAC address table: 8192 entries, Switching capacity: 8.8 Gbit/s. Networking standards: IEEE 802.3, IEEE 802.3af, IEEE 802.3u. Power over Ethernet (PoE). Rack mounting, Form factor: 1U
Technical Spec
Technical Spec
Product Description
HPE 3100-24-PoE v2 EI Switch, Managed, L2, Fast Ethernet (10/100), Power over Ethernet (PoE), Rack mounting, 1U
Tech Specs
Management features
Switch type
Managed
Switch layer
L2
Web-based management
Yes
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity
26
Basic switching RJ-45 Ethernet ports type
Fast Ethernet (10/100)
Installed SFP modules quantity
0
Installed SFP+ modules quantity
0
Combo SFP ports quantity
2
Console port
RJ-45
Network
Networking standards
IEEE 802.3, IEEE 802.3af, IEEE 802.3u
10G support
No
Copper ethernet cabling technology
10BASE-T, 100BASE-TX
Full duplex
Yes
Data transmission
MAC address table
8192 entries
Switching capacity
8.8 Gbit/s
Throughput
6.5 Mpps
Latency (10-100 Mbps)
6 µs
Latency (1 Gbps)
5 µs
Design
Rack mounting
Yes
Form factor
1U
Product colour
Black
Performance
Internal memory
128 MB
Flash memory
16 MB
Buffer size
384 KB
Power over Ethernet (PoE)
Power over Ethernet (PoE)
Yes
Total Power over Ethernet (PoE) budget
370 W
Other features
Management platform
IMC - Intelligent Management Center; command -line interface; Web b rowser; SNMP Manager
Memory and processor
128 MB SDRAM; Packet buffer size
Weight & dimensions
Width
440 mm
Depth
420 mm
Height
43.6 mm
Weight
6.5 kg
I/O ports
24 autosensing 10/100 PoE ports (IEEE 802.3 Type 10BASE-
T, IEEE 802.3u Type 100BASE
-TX, IEEE
802.3af PoE); Duplex
