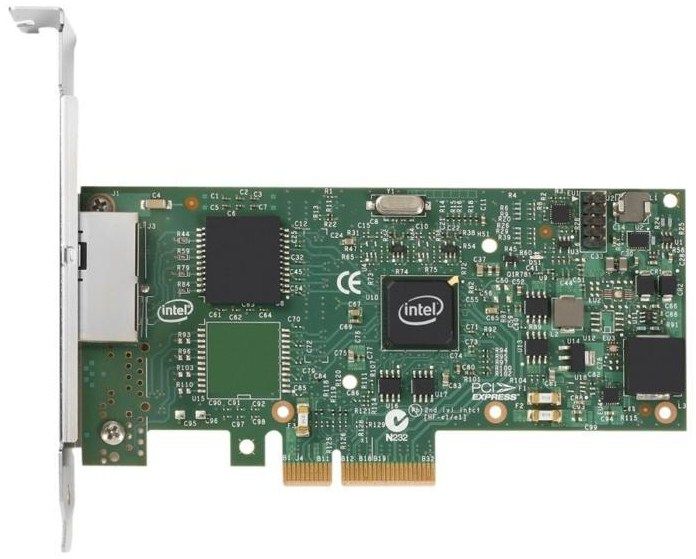

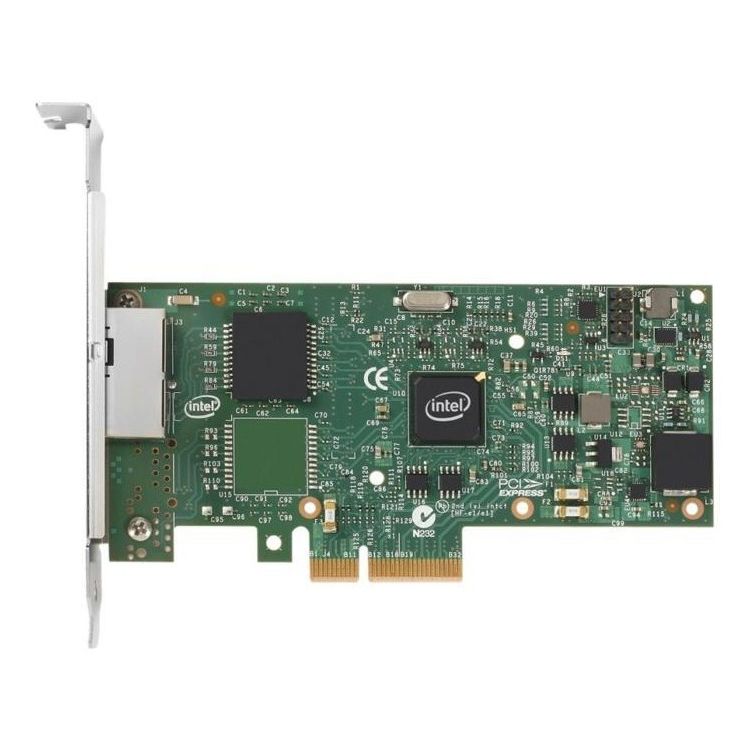

Intel I350-T2V2 Internal Ethernet 1000 Mbit/s
EAN:
7330381947384
Based on the new Intel® Ethernet Controller I350 series, the Intel® Ethernet Server Adapter I350 represents the next step in the GbE networking evolution for the enterprise and data center. It introduces new levels of performance through...
Product Description
Product Description
Based on the new Intel® Ethernet Controller I350 series, the Intel® Ethernet Server Adapter I350 represents the next step in the GbE networking evolution for the enterprise and data center. It introduces new levels of performance through industry-leading enhancements for both virtualized and Internet small computer system interface (iSCSI) unified networking environments. This new family of adapters also includes new power management technologies such as Energy-Efficient Ethernet (EEE) and direct memory access coalescing (DMAC).
Technical Spec
Technical Spec
Product Description
Intel I350-T2V2, Internal, Wired, PCI-E, Ethernet, 1000 Mbit/s
Tech Specs
Ports & interfaces
Connectivity technology
Wired
Internal
Y
Host interface
PCI-E
Interface
Ethernet
Ethernet LAN (RJ-45) ports
2
Bandwidth
Maximum data transfer rate
1000 Mbit/s
Full duplex
Y
Networking
Networking standards
IEEE 802.1as,IEEE 802.1Q,IEEE 802.3,IEEE 802.3ab,IEEE 802.3az,IEEE 802.3u,IEEE 802.3x,IEEE 802.3z
Chipset
Intel I350
Ethernet LAN
Y
Cabling technology
10/100/1000BaseT(X)
Ethernet LAN data rates
10,100,1000 Mbit/s
Maximum operating distance
100 m
LAN controller
Intel® I350
Power
Power consumption (typical)
5 W
Protocols
Supported network protocols
TCP, UDP, IP
Design
PCI Card form factor
Full-height (low-profile)
Performance
Intel Virtual Machine Device Queues (VMDq)
Y
PCI-SIG* SR-IOV Capable
Y
On-chip QoS and Traffic Management
Y
Intel Flexible Port Partitioning
Y
Storage-over-ethernet
Y
Intelligent Offloads
N
iWARP/RDMA
N
Intel Ethernet Power Management
Y
Ethernet adapter ARK ID
84804
System requirements
Recommended usage
Server
Weight & dimensions
Width
68.9 mm
Depth
135.4 mm
Operational conditions
Operating temperature (T-T)
0 - 55 °C
Storage temperature (T-T)
-40 - 70 °C
Storage relative humidity (H-H)
35 - 90%
Other features
Cable type
Cat 5 up to 100m
Compatible operating systems
Windows Server 2012 R2*, Windows Server 2012*, Windows 8*, Windows Server 2008 R2*, Windows 7*, Windows Server 2008*, Windows Vista*, Windows Server 2003 R2*, Windows Server 2003*, Windows XP Professional, Linux* Stable Kernel version 3.x, 2.6,x, Red Hat Enterprise Linux* 5, 6, SUSE Linux Enterprise Server* 10, 11, FreeBSD 9*,, VMware ESX/ESXi*
Intel Virtualization Technology for Connectivity (VT-c)
Y
Interface type
PCIe v2.1 (5.0GT/s)
Technical details
Halogen free
N
Product type
13
Thermal Design Power (TDP)
4.4 W
Design
Product family
Intel Gigabit server adapter
Product series
Intel® I350
Product codename
Powerville
Technical details
Status
Launched
