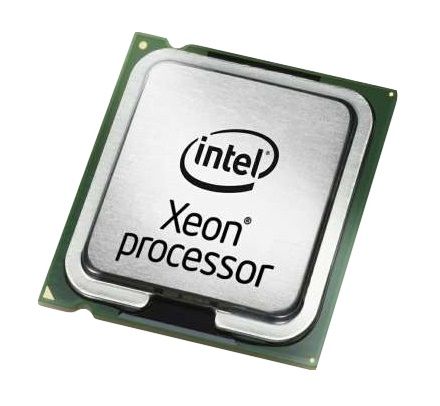

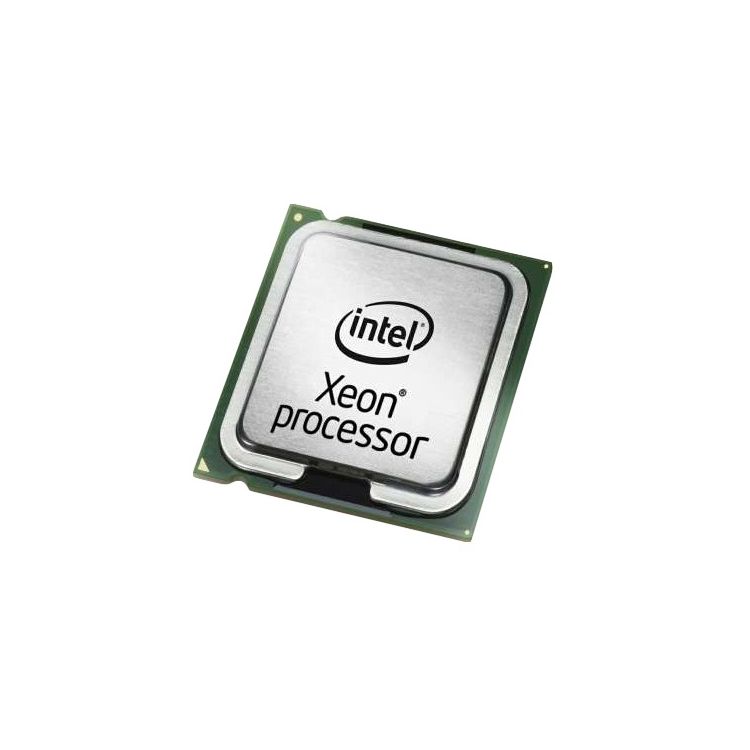

Intel Xeon X5650 processor 2.66 GHz 12 MB Smart Cache
EAN:
7330381988059
Intel Xeon X5650. Processor family: Intel® Xeon® 5000 Sequence, Processor socket: LGA 1366 (Socket B), Processor lithography: 32 nm. Memory channels: Triple-channel, Maximum internal memory supported by processor: 288 GB, Memory types supported...
Product Description
Product Description
Intel Xeon X5650. Processor family: Intel® Xeon® 5000 Sequence, Processor socket: LGA 1366 (Socket B), Processor lithography: 32 nm. Memory channels: Triple-channel, Maximum internal memory supported by processor: 288 GB, Memory types supported by processor: DDR3-SDRAM. Market segment: Server, Supported instruction sets: SSE4.2, Physical Address Extension (PAE): 40 bit. Package type: Retail box. Package dimensions (WxDxH): 42.5 x 42.5 x 45 mm, Processor package size: 42.5mm x 45mm
Technical Spec
Technical Spec
Product Description
Intel Xeon X5650, Intel® Xeon® 5000 Sequence, LGA 1366 (Socket B), 32 nm, Intel, X5650, 2.66 GHz
Tech Specs
Processor
Processor family
Intel® Xeon® 5000 Sequence
Processor cores
6
Processor socket
LGA 1366 (Socket B)
Processor lithography
32 nm
Box
No
Cooler included
No
Processor manufacturer
Intel
Processor model
X5650
Processor base frequency
2.66 GHz
Processor operating modes
64-bit
Component for
Server/workstation
Processor series
Intel Xeon 5600 Series
Processor threads
12
System bus rate
6.4 GT/s
Processor boost frequency
3.06 GHz
Processor cache
12288 KB
Processor cache type
Smart Cache
Thermal Design Power (TDP)
95 W
VID Voltage Range
0.75 - 1.35 V
Stepping
B1
Bus type
QPI
CPU multiplier (bus/core ratio)
20
Number of QPI links
2
Memory bandwidth supported by processor (max)
32 GB/s
Processor system type
DP
Processor codename
Westmere EP
Processor code
SLBV3
Processor ARK ID
47922
Memory
Memory channels
Triple-channel
Maximum internal memory supported by processor
288 GB
Memory types supported by processor
DDR3-SDRAM
Memory clock speeds supported by processor
800,1066,1333 MHz
ECC
Yes
Graphics
On-board graphics card
No
Features
Execute Disable Bit
Yes
Idle States
Yes
Thermal Monitoring Technologies
No
Market segment
Server
Supported instruction sets
SSE4.2
CPU configuration (max)
2
Embedded options available
No
Physical Address Extension (PAE)
40 bit
Export Control Classification Number (ECCN)
5A992C
Commodity Classification Automated Tracking System (CCATS)
G077159
Processor special features
Intel® Hyper Threading Technology (Intel® HT Technology)
Yes
Intel® Turbo Boost Technology
1.0
Intel® AES New Instructions (Intel® AES-NI)
Yes
Enhanced Intel SpeedStep Technology
Yes
Intel Trusted Execution Technology
Yes
Intel Enhanced Halt State
Yes
Intel VT-x with Extended Page Tables (EPT)
Yes
Intel Demand Based Switching
Yes
Intel 64
Yes
Intel Virtualization Technology (VT-x)
Yes
Intel Virtualization Technology for Directed I/O (VT-d)
Yes
Operational conditions
Tcase
81.3 °C
Technical details
Product type
Processor
Supported memory types
DDR3-SDRAM
Logistics data
Harmonized System (HS) code
8542310001
Packaging data
Package type
Retail box
Weight & dimensions
Package dimensions (WxDxH)
42.5 x 42.5 x 45 mm
Processor package size
42.5mm x 45mm
Other features
Intel® Virtualization Technology (Intel® VT)
VT-d, VT-x
On-board memory controller
Yes
Maximum internal memory
294912 MB
Cache memory
12 MB
Born on date
Q1'10
Bus bandwidth
6.4
Bus type units
GT/s
Launch date
Q1'10
Processor core voltage
0.750-1.350 V
Product name
Intel Xeon X5650 (12M Cache, 2.66 GHz, 6.40 GT/s Intel QPI)
Status
Discontinued
Maximum memory
288 GB
Processor brand name
Intel Xeon
Last change
63903513
Product family
Intel Xeon Processor 5000 Sequence
Bus speed
6.4 GT/s
