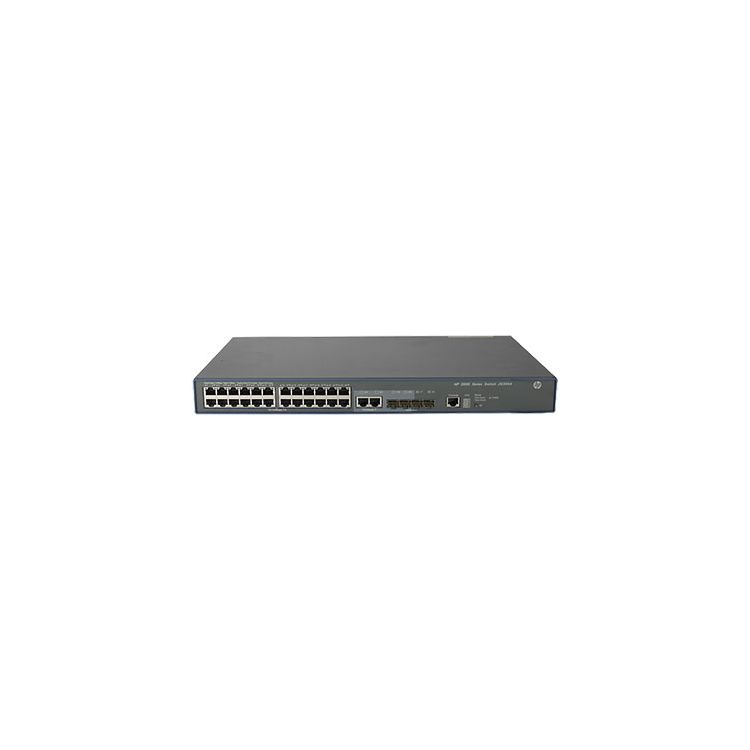

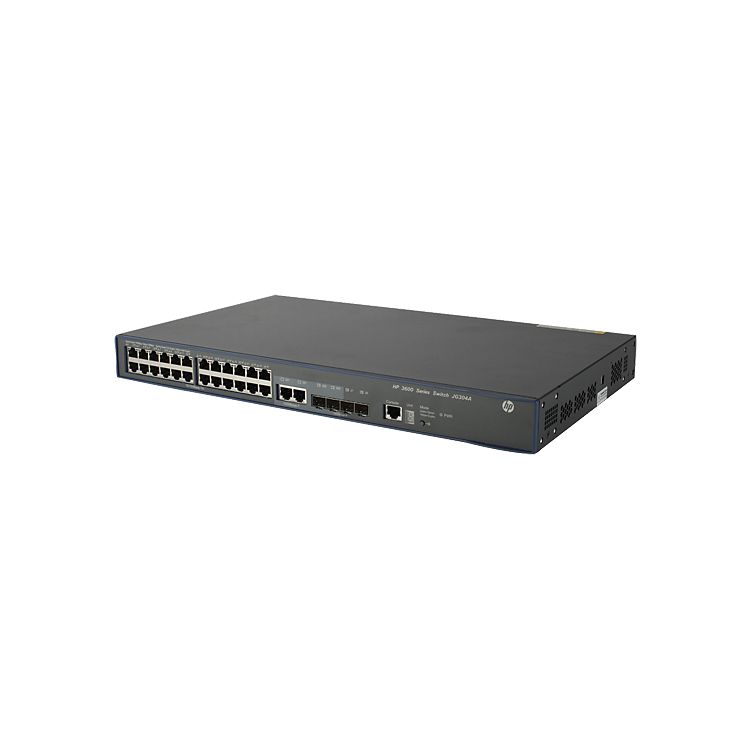

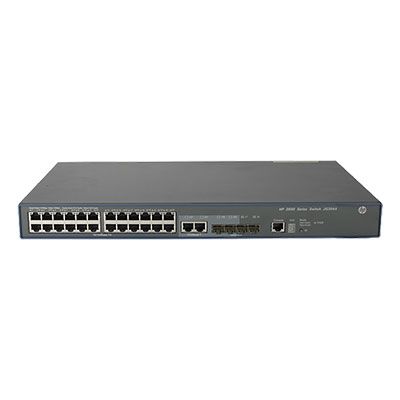

HPE 3600-24 v2 SI Switch Managed L3 Fast Ethernet (10/100) 1U Grey
EAN:
0888793514979
HPE 3600-24 v2 SI Switch. Switch type: Managed, Switch layer: L3. Basic switching RJ-45 Ethernet ports type: Fast Ethernet (10/100), Basic switching RJ-45 Ethernet ports quantity: 24, Console port: RJ-45. Full duplex. MAC address table: 2048...
Product Description
Product Description
HPE 3600-24 v2 SI Switch. Switch type: Managed, Switch layer: L3. Basic switching RJ-45 Ethernet ports type: Fast Ethernet (10/100), Basic switching RJ-45 Ethernet ports quantity: 24, Console port: RJ-45. Full duplex. MAC address table: 2048 entries, Switching capacity: 27.5 Gbit/s. Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3at, IEEE 802.3u. Rack mounting, Form factor: 1U
Technical Spec
Technical Spec
Product Description
HPE 3600-24 v2 SI Switch, Managed, L3, Fast Ethernet (10/100), Full duplex, Rack mounting, 1U
Tech Specs
Switch type
Managed
Switch layer
L3
Basic switching RJ-45 Ethernet ports quantity
24
Basic switching RJ-45 Ethernet ports type
Fast Ethernet (10/100)
Fast Ethernet (copper) ports quantity
48
SFP module slots quantity
4
Console port
RJ-45
Networking standards
IEEE 802.3, IEEE 802.3ab, IEEE 802.3at, IEEE 802.3u
10G support
No
Copper ethernet cabling technology
10BASE-T, 100BASE-TX
Full duplex
Yes
MAC address table
2048 entries
Switching capacity
27.5 Gbit/s
Throughput
9.5 Mpps
Latency (10-100 Mbps)
6 µs
Latency (1 Gbps)
5 µs
Rack mounting
Yes
Stackable
Yes
Form factor
1U
Product colour
Grey
Internal memory
256 MB
Flash memory
128 MB
Buffer size
2000 KB
AC input voltage
100 - 240 V
AC input frequency
50 - 60 Hz
Power consumption (typical)
26 W
Power over Ethernet (PoE)
No
Width
439.9 mm
Depth
260.1 mm
Height
43.7 mm
Weight
5 kg
Management platform
IMC - Intelligent Management Center; command -line interface; Web browser; SNMP Manager
Memory and processor
256 MB SDRAM, 128 MB flash; Packet buffer size
Mounting
256 MB SDRAM, 128 MB flash; Packet buffer size
I/O ports
24 RJ-45 autosensing 10/100 ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX); Media Type
